Precor SPINNER CHRONO POWER User Manual

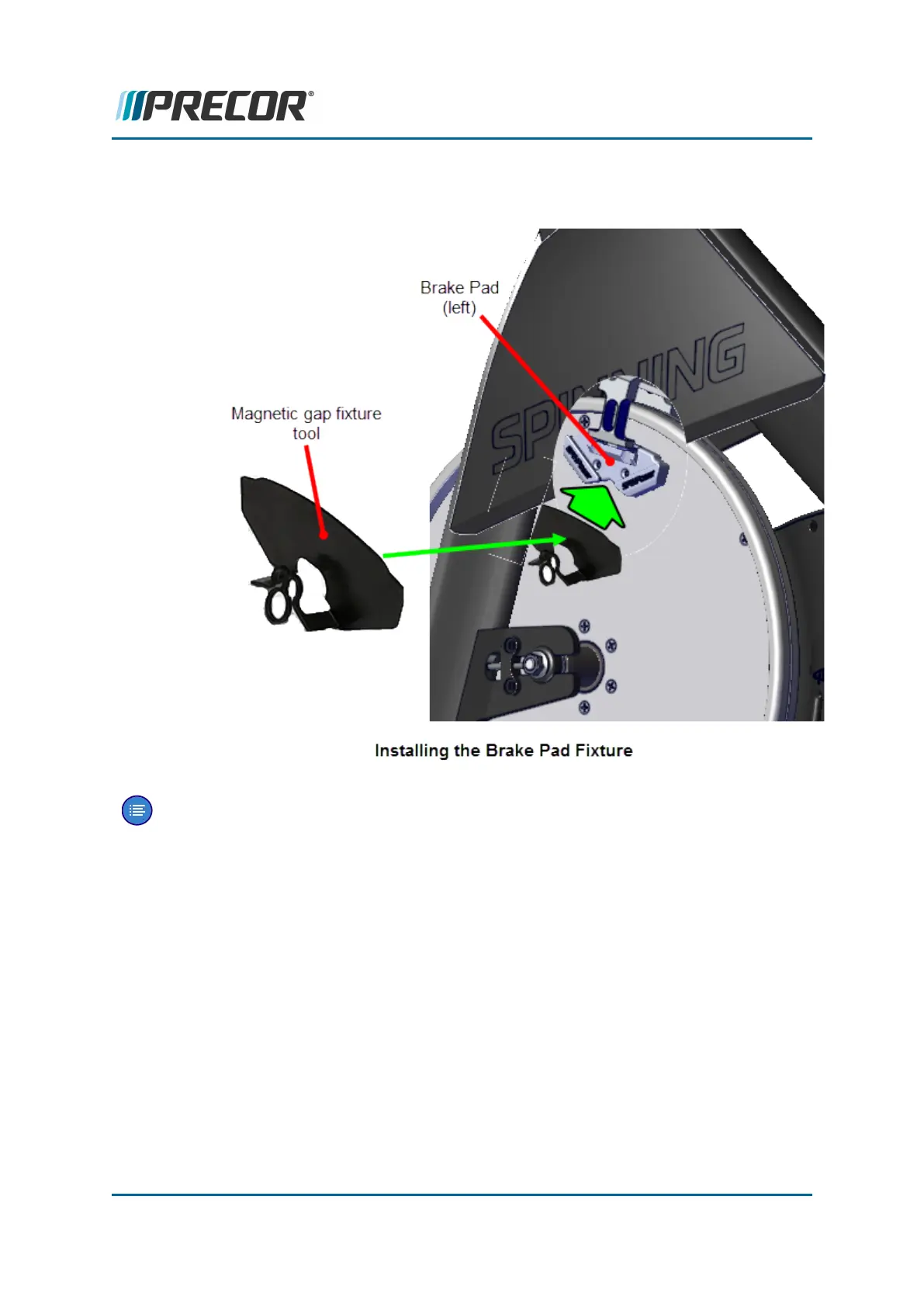

flywheel surface. Continue sliding the fixture over the brake pad and press into pos-
ition.
Note:It is recommended that a magnetic gap fixture (2x) be mounted on both the
left and right brake pads before starting and while performing the brake pad gap
adjustment procedure.
3. loosen, but do not remove, the left and right brake pad 3 mm hex key mounting bolts (
2x per pad).
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 24
4 Adjustment Procedures
Brake Pad Adjustment
