4. Apply maximum resistance, fully turn the resistance knob in the clockwise (+) dir-
ection.

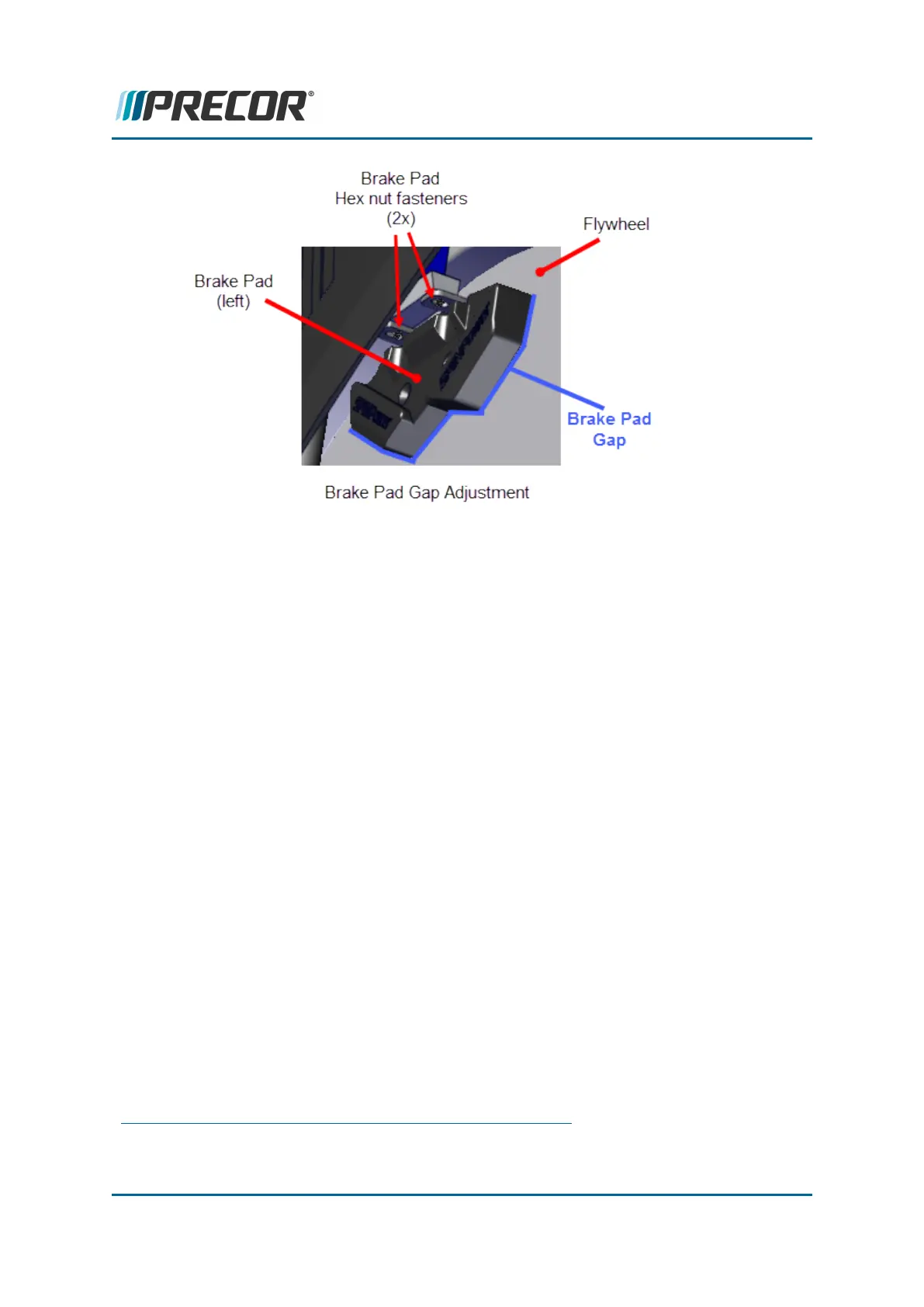

5. Adjust the left and right brake pads so that the magnetic gap fixture tool touches the
flywheel surface. Then fully tighten the 3 mm hex key fasteners (2x per pad).
6. Loosen the resistance and remove the magnetic gap fixture tools from the left and
right brake pads.
7. Verify resistance operation:
a. Turn the resistance knob to minimum resistance.
b. Start pedaling the bike at 60 rpm or greater while increasing the resistance
level to maximum and returning to minimum resistance. Stop pedaling and
allow the flywheel to stop:
l
Verify that changing the resistance level from minimum to maximum and
back to minimum was smooth and that there were no issues with the res-
istance knob or caliper assembly.
l
Verify that at maximum resistance, the pedal resistance was very strong
(If possible, compare with a similar bike in known good operating con-
dition).
l
Verify that there were no unusual noises from the brake pads during this
operation.
8. Verify the power (watts) measurement:
(Spinner
®
Chrono
1
™ Power model only)
1
Spinner® Chrono™ Power bike.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 25
4 Adjustment Procedures
Brake Pad Adjustment
