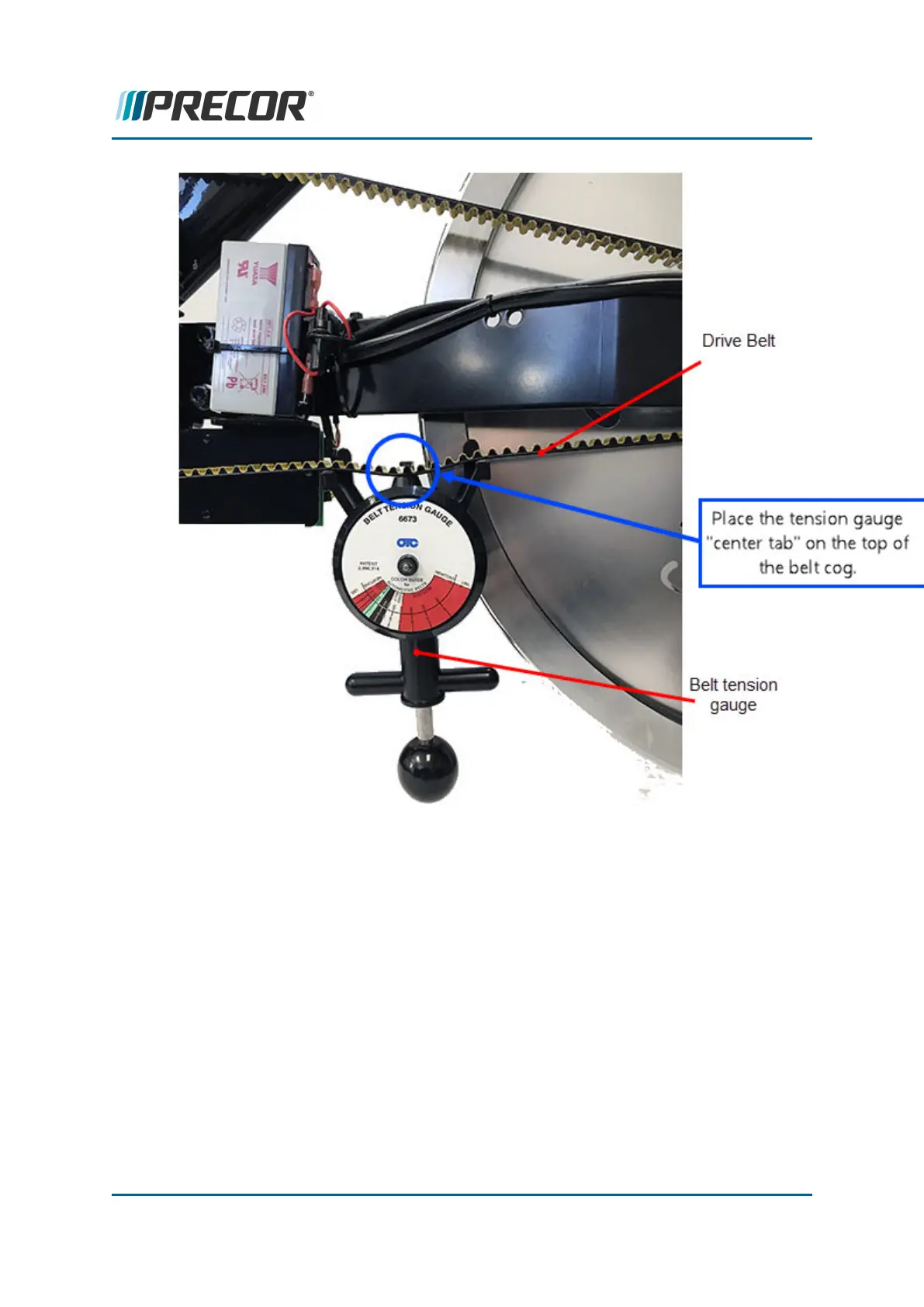

9. Incrementally and alternately tighten the left and right tension adjustment nuts so that
the flywheel remains centered between the left and right fork weldments. Continue
the adjustment process until the belt tension gauge reads, 70 - 76 lbs (31.8 - 34.5
kgs).
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 31
4 Adjustment Procedures
Drive Belt Tension and Tracking Adjustment
