other extremities causing personal injury.
Drive belt removal
13. Remove the drive belt by carefully removing the belt off the flywheel pulley and then
sliding the belt over the crank sprocket and pedal.
Generator belt removal
14. Remove the generator belt from the flywheel generator pulley.
Installation procedure.

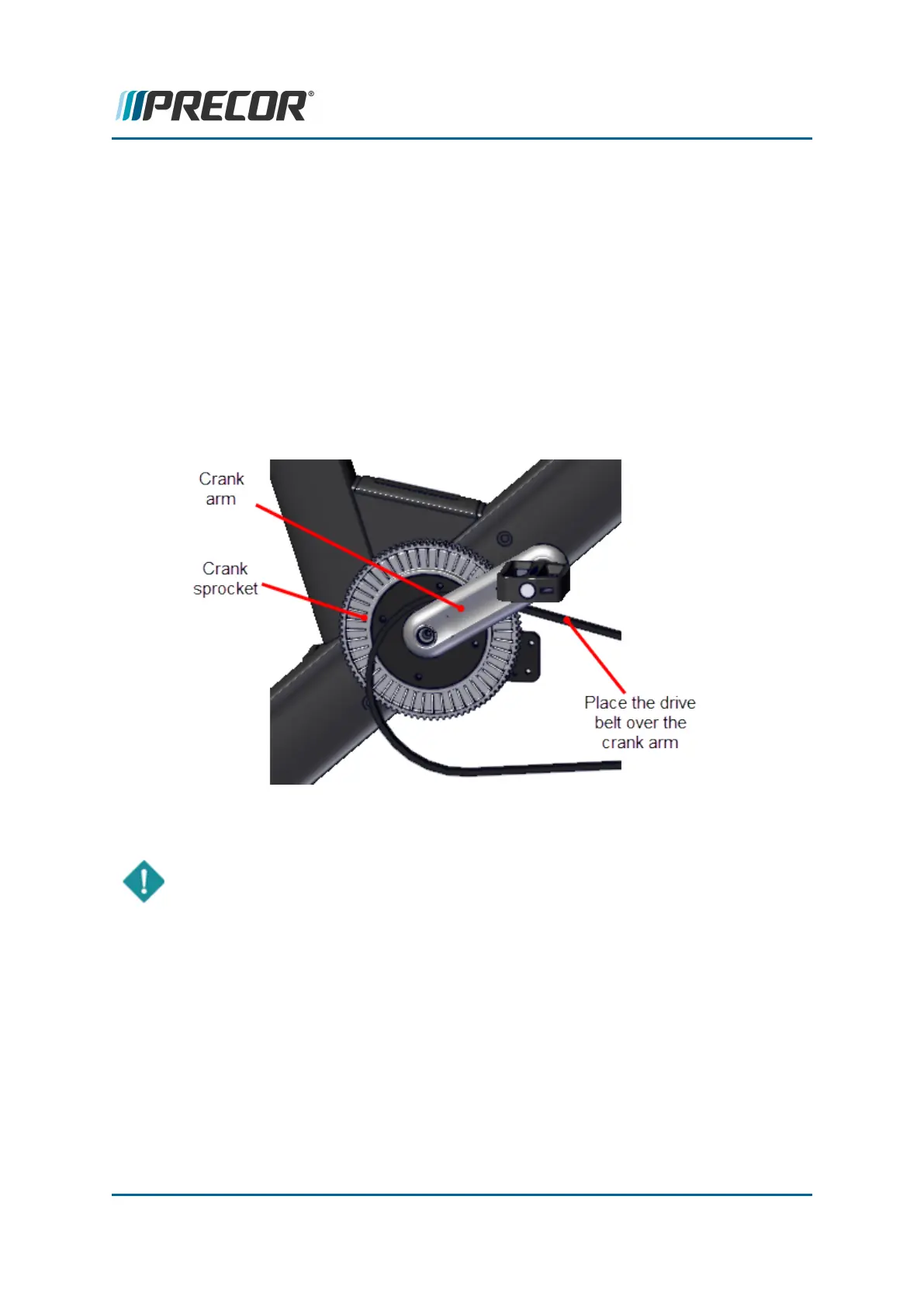

1. Place the drive belt over the pedals and rest it on the crank.
2. Position the flywheel in front of the flywheel axle bracket. Then put the generator belt
onto the flywheel generator pulley and the drive belt onto the flywheel drive pulley.
IMPORTANT: The generator and drive belts must be placed onto the flywheel gen-
erator and drive belt pulleys before installing the flywheel onto the axle mounting
bracket.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 90
5 Replacement Procedures
Drive Belt, Generator Belt, and Flywheel Replacement
