30 A26361-K878-Z102-2-7619
Installing/Removing the Server into/from the Rack Hardware Installation

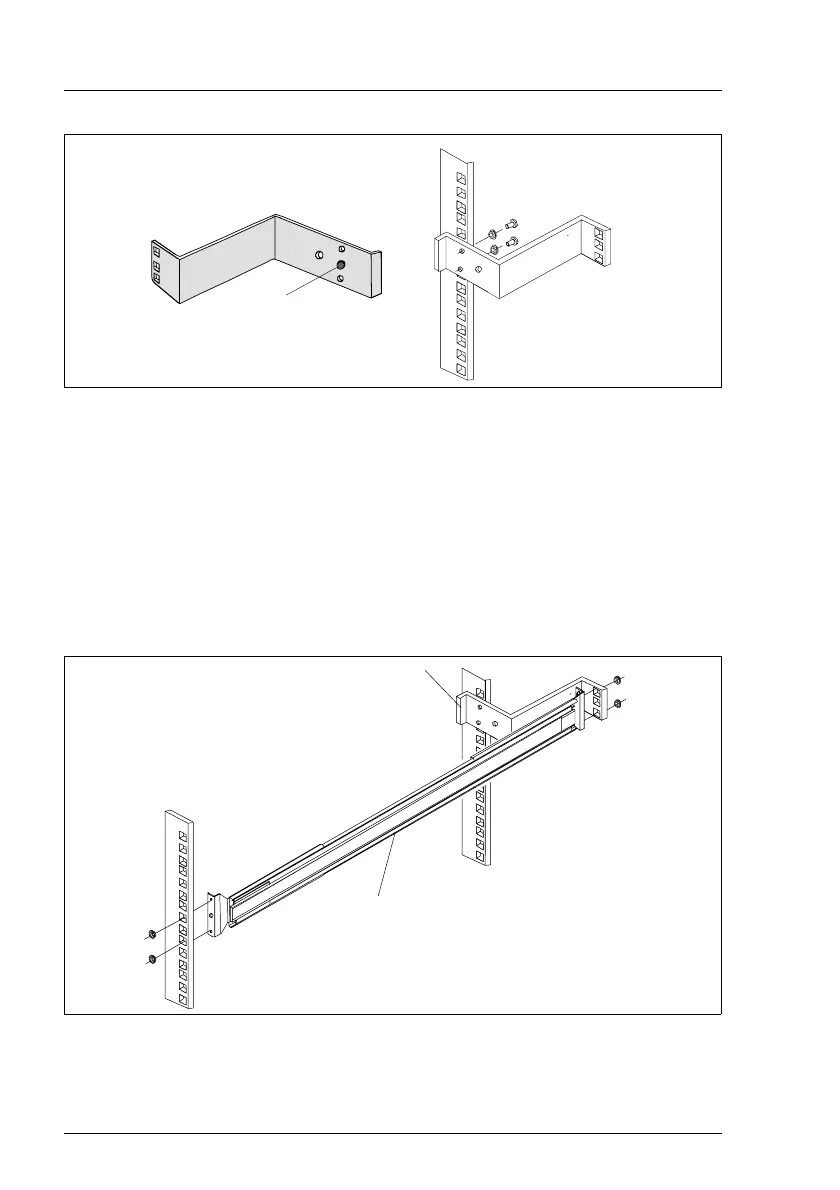

Figure 7: Mounting the support bracket
Ê Place the plugwashers in the holes of the support uprights and secure the
bracket with two screws.
Placing the plugwashers
To fasten the telescopic rails, no flange nuts are necessary since the rails are
equipped with threaded holes. For adjustment in each case two plugwashers
(position c in figure 8) must be pre-mounted at the support uprights and the
support bracket.
Figure 8: Placing the plugwashers
Ê Place the plugwashers (c) in the holes of the support uprights and of the
support bracket.
1
a
b
c
c
