3. Route the ribbon cable through the housing to free the wiper, as shown on the next
pictures.
4. Flip up the retention tab at each end of the wiper assembly to free the microfiber
roller.
5. Remove the MFR to access the transfer roller (TR) that is installed below the MFR in
the wiper module assembly.
Picture of Transfer Roller (TR)
6. Visually inspect the transfer roller (TR) for unusual ink accumulation. The transfer
roller is stainless steel. Ink may accumulate in scratches on the roller. Wash the
roller with damp lint-free cloth if necessary.
7. Re-assemble the wiper module.

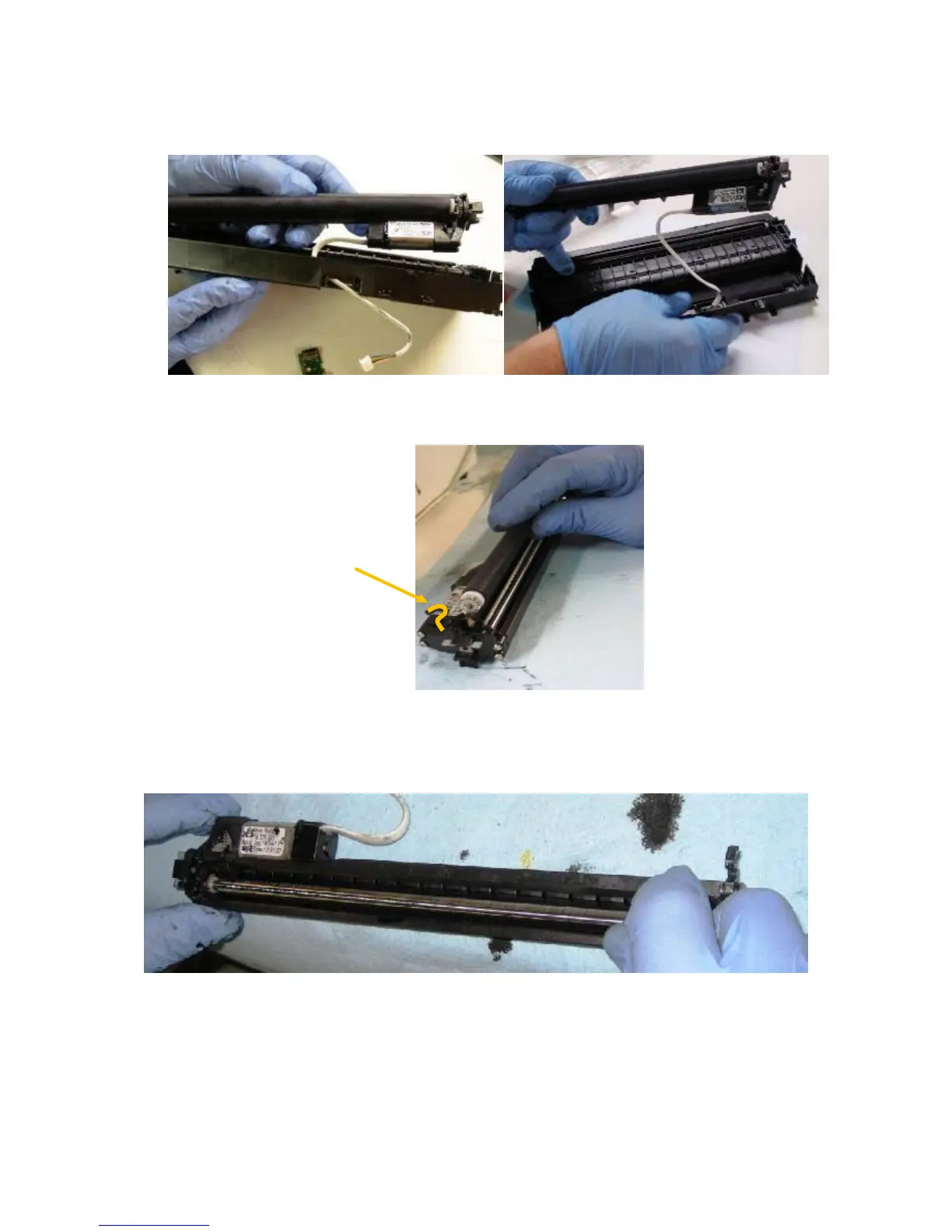

Picture of routing ribbon cable through housing
Picture of removing the MFR after opening retention tabs
Retention
tab
