Chapter 3: Connecting Pro Tools | MTRX II to a Pro Tools | HDX or HD Native System
14
MTRX II with a MADI I/O in an HDX 2 System
The following shows MTRX II and MADI I/O with Word Clock connections and DigiLink Mini connections with two HDX cards.

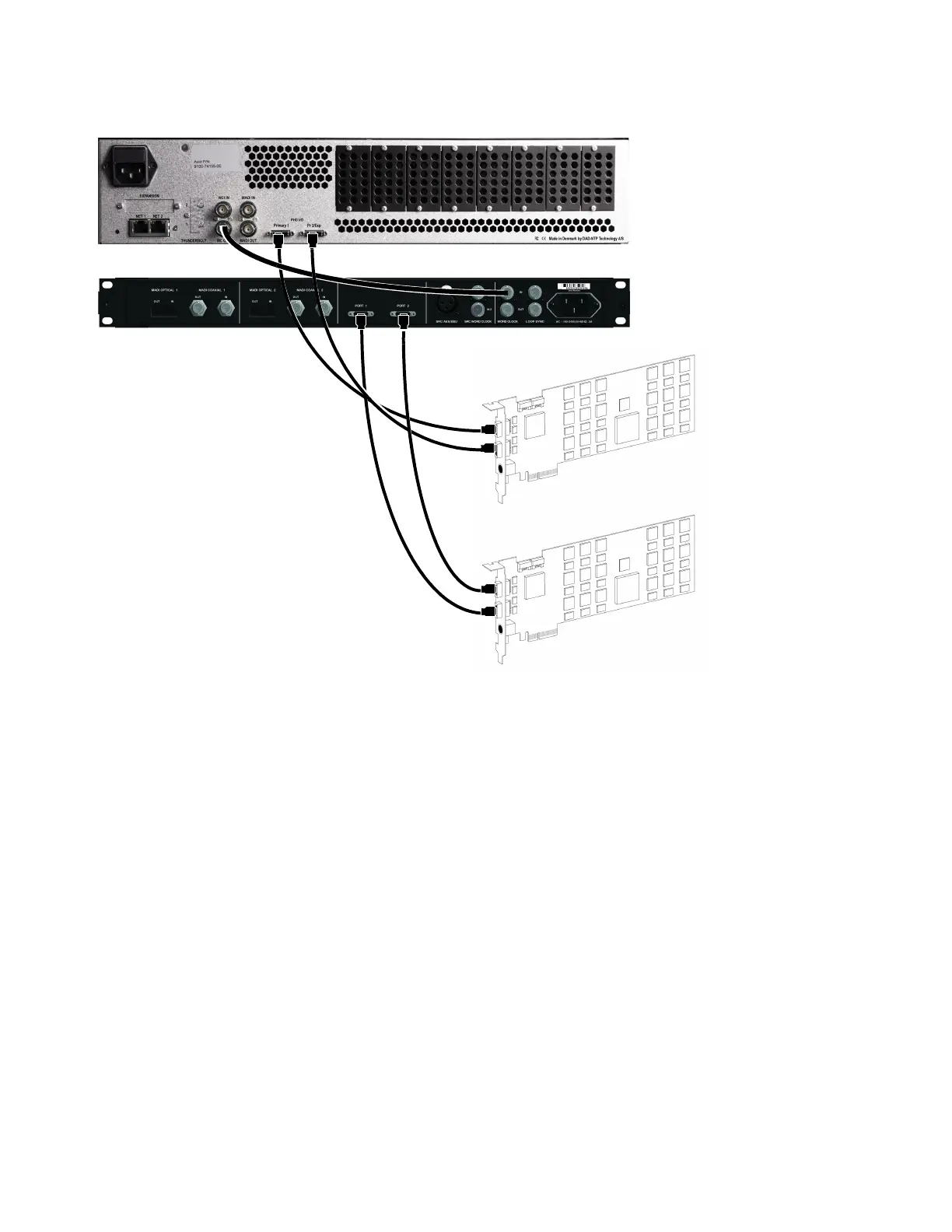

Figure 2. HDX 2 system: MTRX II connected to both DigiLink Mini ports on HDX card 1, MADI I/O connected to both DigiLink Mini ports on HDX
card 2, Word Clock connection between MTRX II and MADI I/O
