Chapter 4: Pro Tools | MTRX II Front and Back Panels
19
Analog I/O Connections

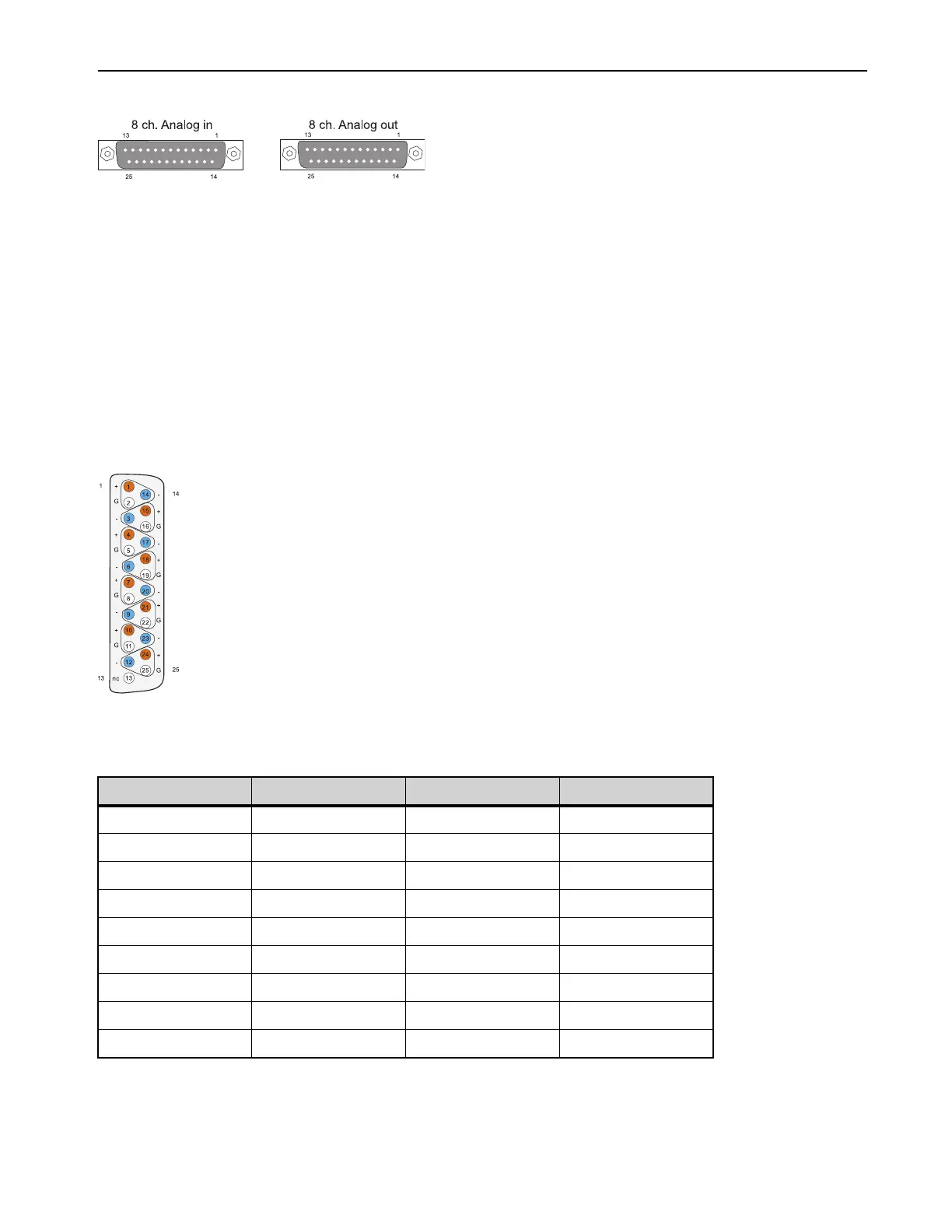

Analog I/O 25-pin Female D-sub Connectors
There are four types of optional analog cards for MTRX II:
Pro Tools | MTRX II 8 Line Pristine AD card
8-channel Line AD Card.
Pro Tools | MTRX II 2 Mic/Line Pristine AD card
2-channel Mic/Line AD Card.
Pro Tools | MTRX II 8 Mic/Line Pristine AD card
8-channel Mic/Line AD Card.
Pro Tools | MTRX II Pristine 8 DA card
8-channel Line DA Card.
These are interfaced using 25-pin D-sub connectors on the card. This connector type is used for both the analog input card and the analog
output card.
Connections Channels 1–8
The connections for the 25-pin D-sub connector are listed in the table below. The pinning is according to the proprietary standard by
Tascam.
Pin no Func. Pin no Func.
1 AIN/OUT 8 + 14 AIN/OUT 8 –
2 GND 15 AIN/OUT 7 +
3 AIN/OUT 7 – 16 GND
4 AIN/OUT 6 + 17 AIN/OUT 6 –
5 GND 18 AIN/OUT 5 +
6 DOUT 2/6 + 19 GND
7 AIN/OUT 4 + 20 AIN/OUT 4 –
8 GND 21 AIN/OUT 3 +
9 AIN/OUT 3 – 22 GND
