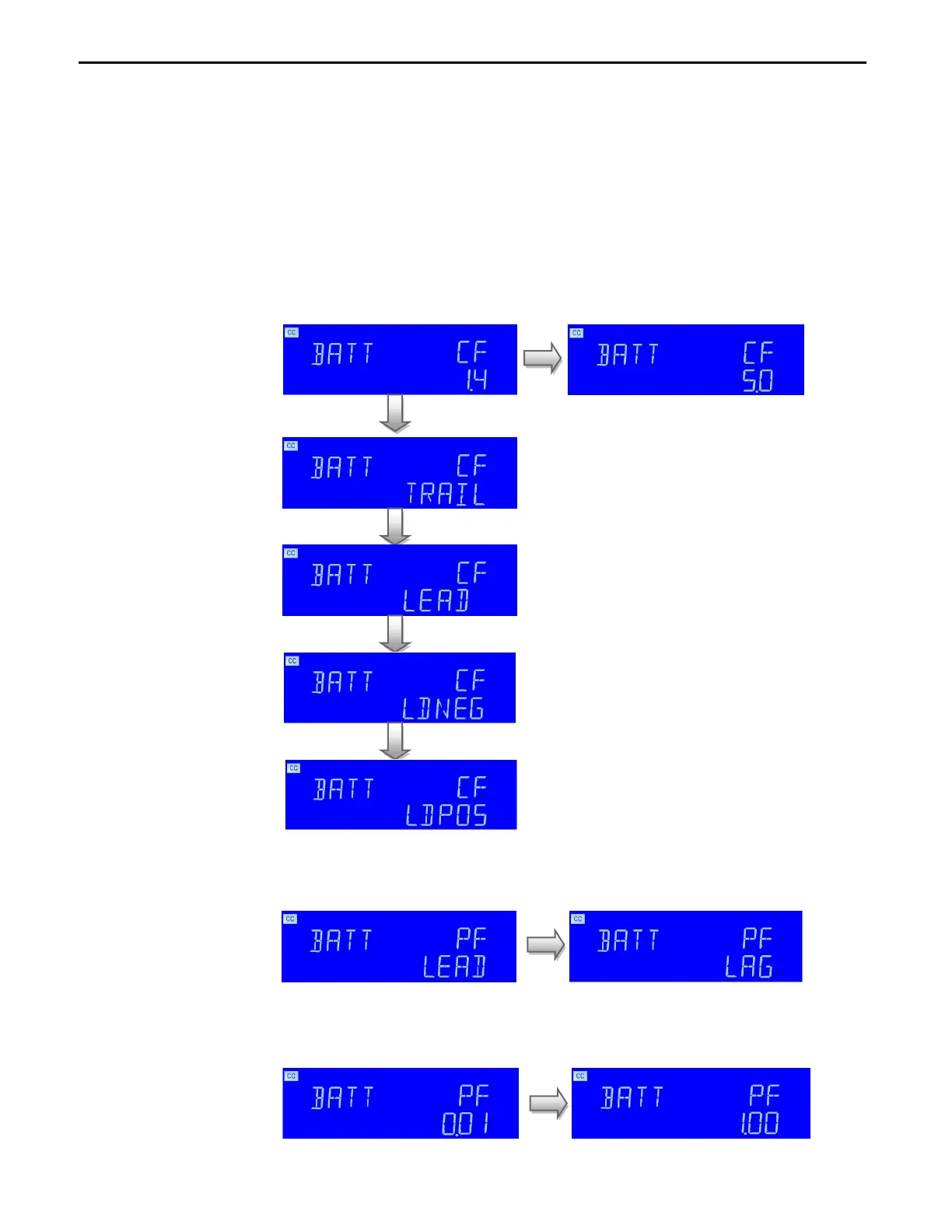

 BATT CF: setting the CF, the Left 5 digit monitor display the “BATT” ,the right
upper 5 digit monitor display the “CF”, and right lower monitor display setting value.
The range is 1.0、1.1、1.2、1.3、1.4 ~5.0,the setting sequence is shown below:
BATT CF 1.4 ~5.0 
(1.3) BATT CF TRAIL: Trailing edg 
(1.2) BATT CF LEAD: Leading edge 
(1.1) BATT CF LDNEG: negative half-cycle loading 
(1.0) BATT CF LDPOS: positive half-cycle loading 
 The Left 5 digit monitor display the “BATT”,the right upper 5 digit monitor
Display the “PF”, and right lower monitor display the”LEAD”,use the knob and the
key to LEAD or LAG.
 BATT CF: setting the PF, the Left 5 digit monitor display the “BATT” ,the right
upper 5 digit monitor display the “PF”, and right lower monitor display setting value.
The range is 0.01 ~1.00.
