562200-000, Issue 1.2, December 2015
11 of 62
5 Operating Instructions
5.1 Power Up

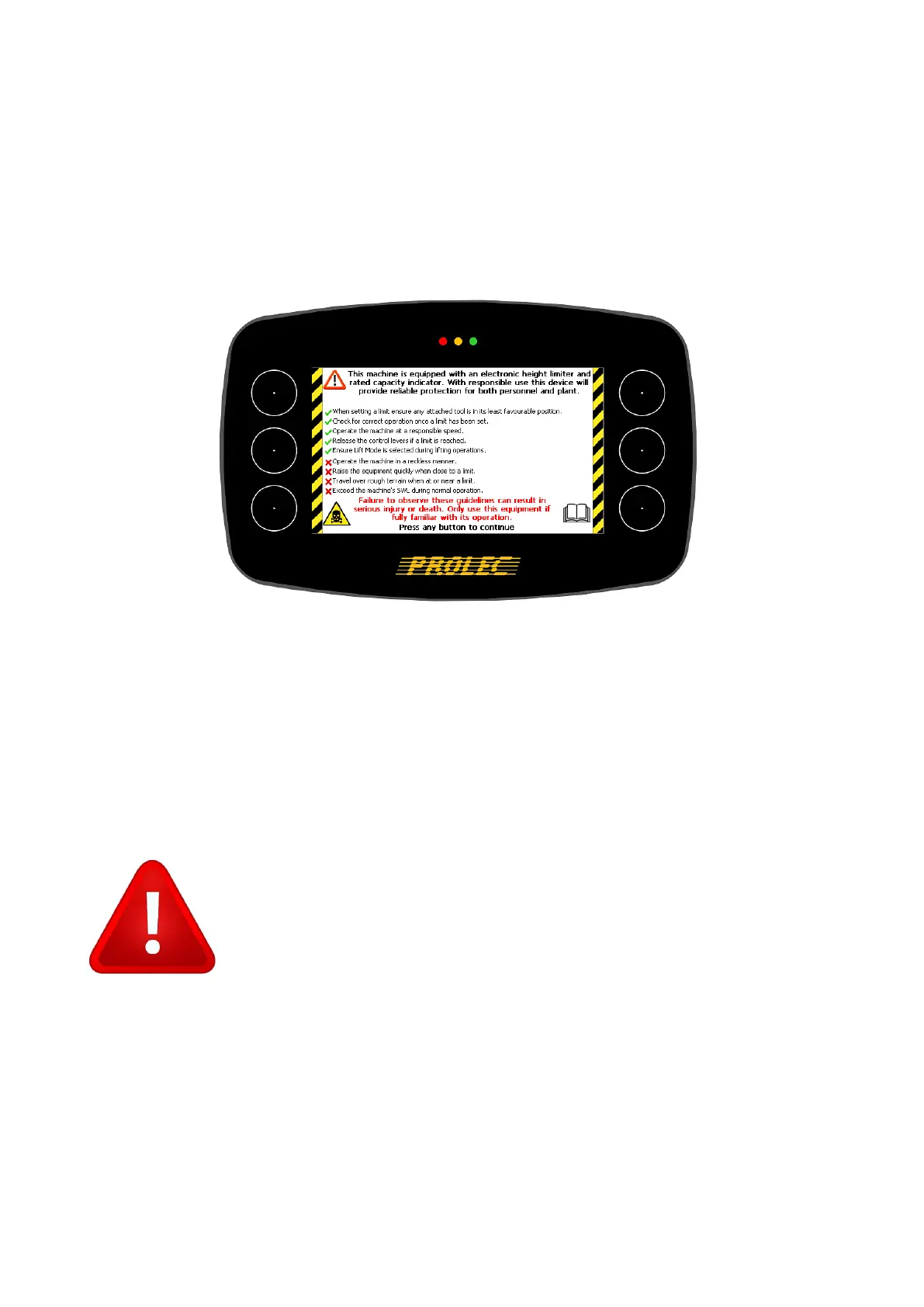

The PME system automatically powers up when the ignition is switched to on. The in-cab
display 4.3” high resolution LCD display and is controlled with three buttons at each side.
Three status LEDs and an internal alarm provide further indication.
The system will perform a self check at start up:
1. All LEDs will flash, the internal alarm and the external alarm (if fitted) will sound and
the system will perform a self test.
2. Once the self test is complete, a safety warning message will be displayed, pressing
any button activates the operating mode, the GREEN LED will light. Any previous
limit or limits set will be enabled.
3. The system is now ready for use unless the user login feature has been enabled,
see section 5.3.
If the RED LED is lit, a fault has been detected, halt any operation, seek
authorised service immediately and do not continue operation until the
fault has been remedied.
The display is secured to the machine using a flexible ball mounting allowing easy adjust-
ment for personal viewing preference.
