7.5 Stability Control Overload
Where an overload condition occurs the machine hydraulics will be locked to pre-
vent any further dangerous movements. Only those movements that allow safer
operation remain active. The radius cannot be increased and the load cannot be
raised. The internal and external alarms will sound in conjunction with visual indi-
cators on the display.
7.5.1 Hydraulic Limitation Control
The system will cut motion to the appropriate articulation in a hydraulic limit state and in-
dicate this via internal and external alarms in conjunction with visual indicators on the dis-
play.
Where an overload condition occurs the machine
hydraulics will be locked to prevent any further
dangerous movements. Only those movements
that allow safer operation remain active. The ra-
dius cannot be increased and the load cannot be
raised.
After three seconds a soft override will become available, see section 7.6.1
If the load is greater than 105% of the
maximum safe working load
The load capacity indicator will be red
The red LED will flash
The internal and external alarm will
sound

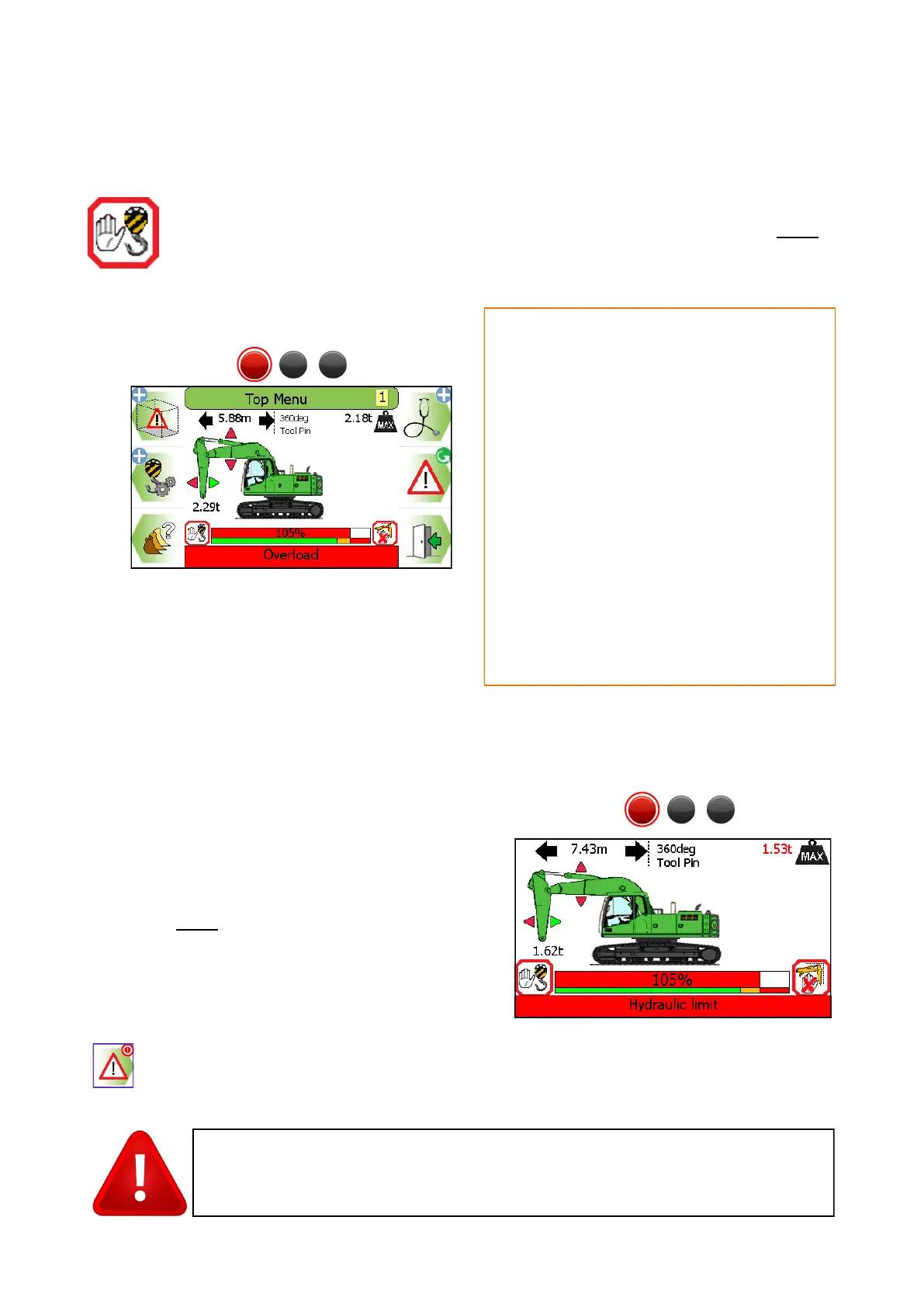

The message shown here will be
displayed
Motion control of the machine will
operate, motion cut is indicated by
RED arrows, safe motion is indicated
by GREEN arrows
In the event of an approach to overload or an overload condition, the lifting
point should only be moved in a direction that increases the safe working
load. See section 4 for further information.
