562200-000, Issue 1.2, December 2015
54
of 62
14.3
Select Languag
e

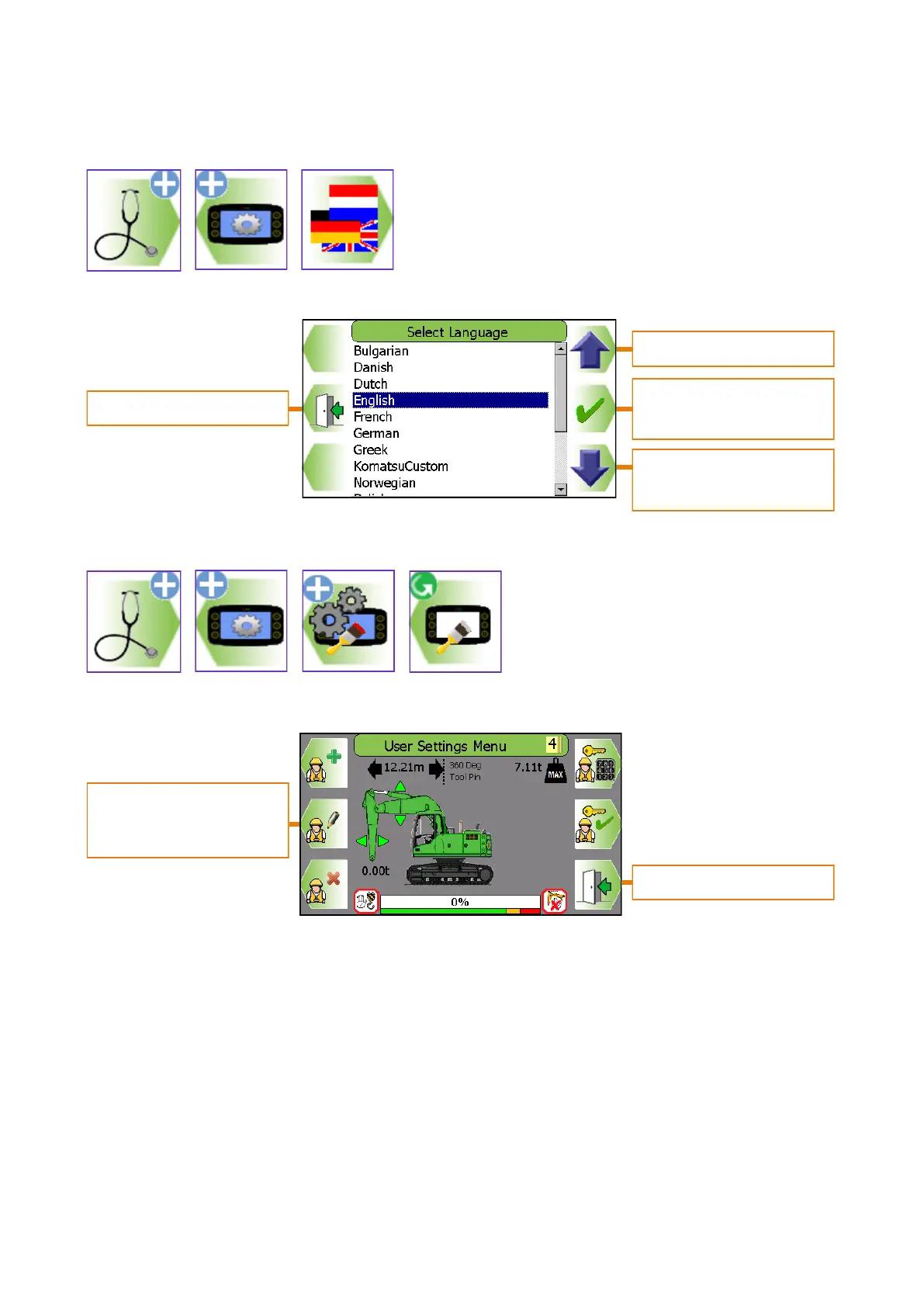

An appropriate language type for the display can be
selected from this list.
14.4 Backgrou
nd Colour
The screen background colour can be
altered, use the Background Colour
button to scroll through the available
colours.
Accept highlighted
language
Moves highlighter
DOWN
Exit to previous menu
Exit without change
Moves highlighter UP
Scroll through and
accept background
colour
53
55
Table of Contents
Default Chapter
4
Table of Contents
4
1 Use of this Document
8
2 Notices
8
3 System Identification
9
4 Operating and Limit Situation Recommendations
10
MEC Override
10
5 Operating Instructions
11
Power up
11
Using the Display
12
User Login
13
Supervisor Login
14
Logout
14
6 Top Menu
15
Tool Selection Menu (Optional)
15
Product Type Selection Menu (Optional)
16
PME 2D Digging (Optional)
16
7 Rated Capacity Indicator / Controller
17
Introduction
17
Operation Within the Safe Working Load
18
Approach to Overload
18
Stability Indication Overload
19
Stability Control Overload
20
Overload / Hydraulic Limitation Control Override
21
Soft Override
21
Lift Mode Menu
22
Lifting Point Selection
22
Duty Selection
23
Load Chart Menu
24
Lifting Mode - Non Lifting Mode
25
Alternative Lifting Mode Screens
26
8 Envelope Monitoring
27
Height Limit
28
Height Limit Menu
28
Height Limit Setting - Known Height
29
Height Limit Setting - Using Current Highest Point
30
Machine Envelope Indicator (MEI) - Height
31
Machine Envelope Controller (MEC) - Height
32
Max Radius Limit
33
Machine Envelope Controller (MEC) - Max Radius
37
Min Radius Limit
38
Min Radius Limit Setting - Known Min Radius
39
Machine Envelope Indicator (MEI) - Min Radius
41
Machine Envelope Controller (MEC) - Min Radius
42
Low Limit
43
Low Limit Menu
43
Low Limit Setting - Known Low Height
44
Low Limit Setting - Using Current Lowest Point
45
Machine Envelope Indicator (MEI) - Low
46
Machine Envelope Controller (MEC) - Low
47
9 Warning Messages
48
On Screen Messages
48
LED and Internal Alarm Warnings
49
10 Daily Checks
49
11 Repair
49
12 Test / Diagnostics
50
Sensor Data
51
Beacon, Beacon, LED and Internal / External Alarm Function Test
51
13 System Information
52
Day / Night Mode
53
Select Display Machine
53
Select Language
54
Background Colour
54
14 Display Settings
52
15 User Login
55
User Login Setup
55
Enable / Disable Users
55
Add New User
55
Edit User Details
57
Select User to Delete
58
Edit User Access Code
58
16 Taking Product out of Operation
59
17 Service and Repair
59
Maintenance Review
59
18 Definitions / Glossary
60
19 Amendment / Revision Record
61
