8.2 Max Radius Limit

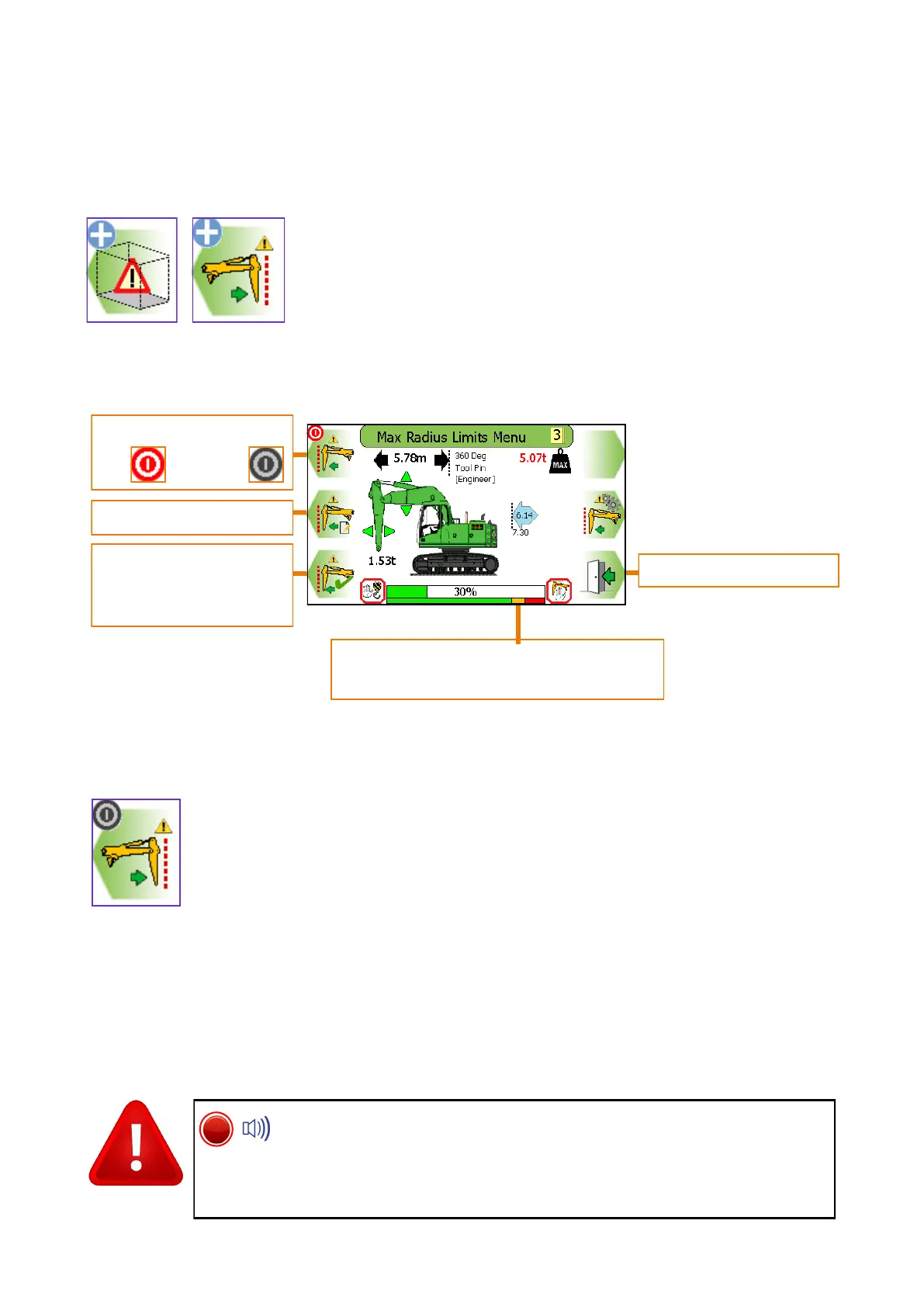

8.2.1 Max Radius Limit Menu
A max radius limit can be set by entering a known radius or by
manually moving the machine to the desired limit.
Using the Max Radius Limits Menu, the max radius limit can be switched ON
and OFF, a max radius limit can be set to a known value, or the max radius
limit can be set to the current farthest point.
See sections 8.2.2 to enter a known max radius and section 8.2.3 for setting
the limit by moving the machine.
Current furthest point. Only displayed if
a max radius limit is set.
Once a limit is set, the internal alarm will sound and the RED LED
will light if the equipment reaches the current limit. Always check
that the limit activates at the set point. A limit cannot be deactivated when
close to or at the limit. Observe the operational limitations given in section 4.
Exit to previous menu
Set max radius limit
using current furthest
part of equipment
Turns monitoring
ON and OFF
Enter a value
To Next Page
