562200-000, Issue 1.2, December 2015
34 of 62

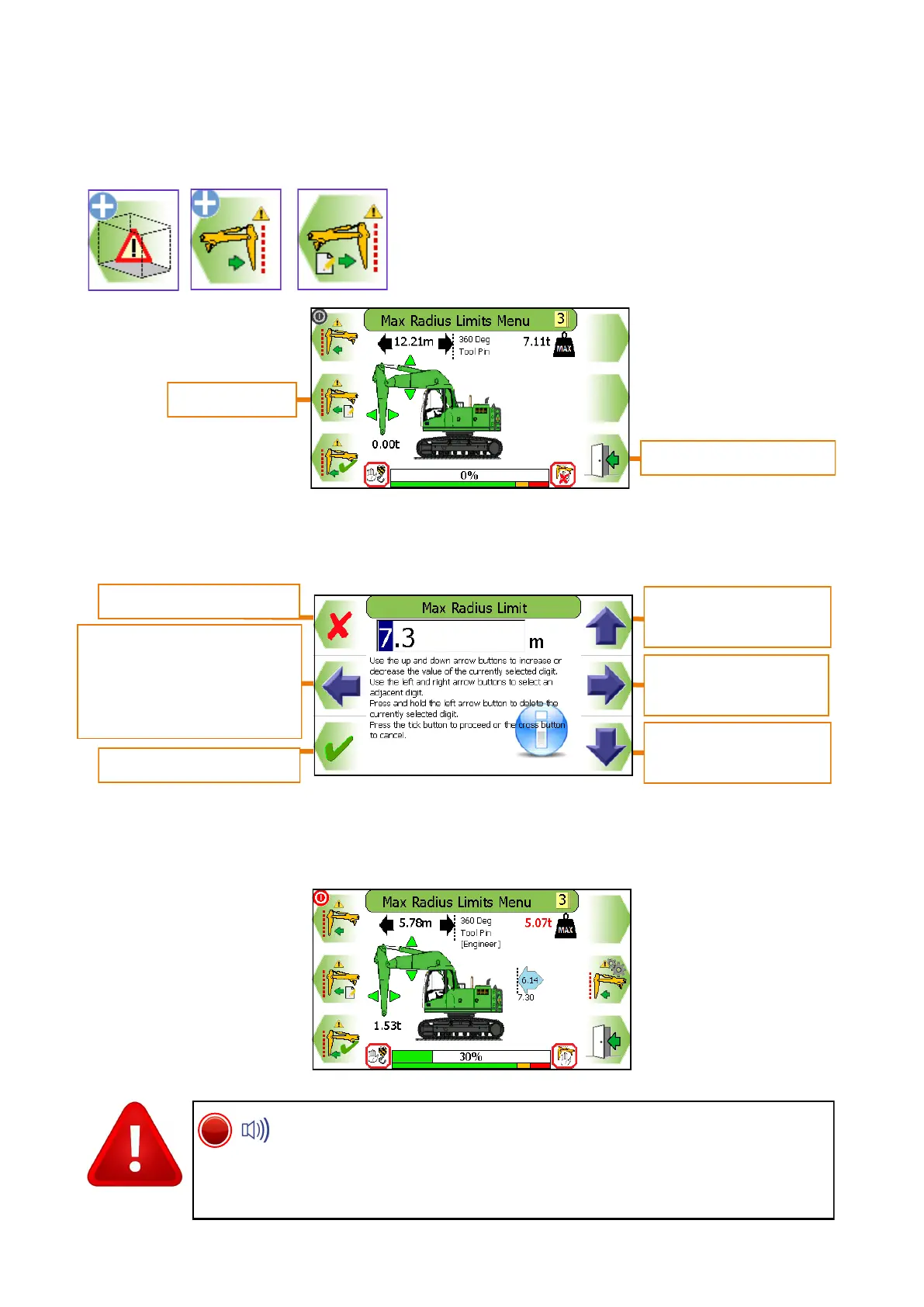

8.2.2 Max Radius Limit Setting - Known Max Radius
A known limit can be entered into the display. This is
the horizontal distance from the slew centre of the
machine to the tool pin:
Press the ’Enter a value’ button
Use the UP and DOWN arrows to increase and decrease the highlighted number. Use
the LEFT and RIGHT arrows to move the highlighter to the left and to the right.
Decreases high-
lighted digit
Moves highlighter to
right
Exit to previous menu
Moves highlighter to left
also moving left beyond
the first digit will insert “0”
Hold to delete digit
Increases highlighted
digit
Enter a value
Accept displayed value
Cancel without change
Once a limit is set, the internal alarm will sound and the RED LED
will light if the equipment reaches the current limit. Always check
that the limit activates at the set point. A limit cannot be deactivated when
close to or at the limit. Observe the operational limitations given in section 4.
