8.1.4 Machine Envelope Indicator (MEI) - Height

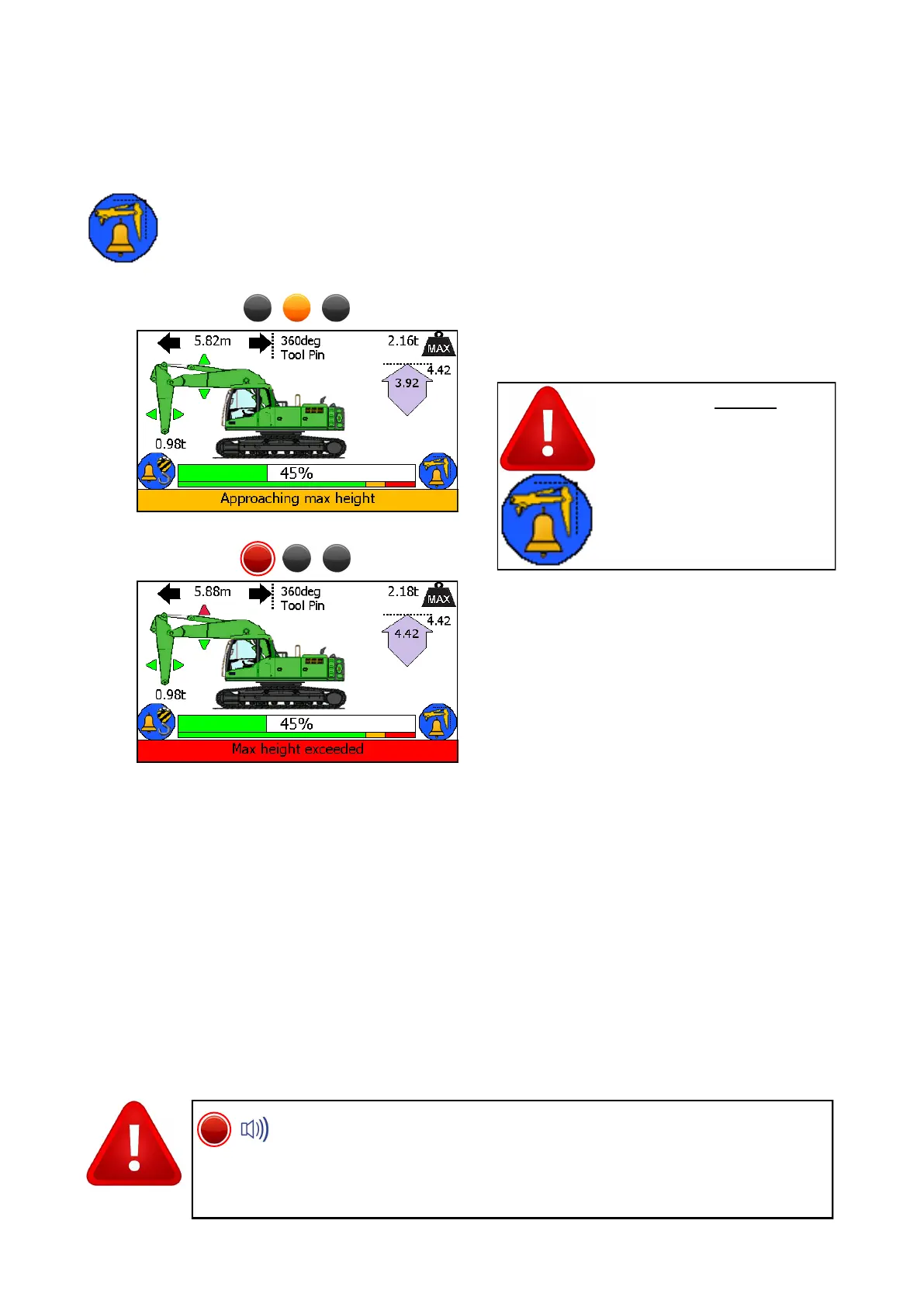

If any of the equipment enters the approach limit* a ‘Close to max height’ mes-
sage will appear, the internal alarm will sound and the amber LED will be lit.
If any of the equipment reaches the height limit, the internal alarm will sound and the
RED LED will be lit.
*The approach limit is configurable at point of calibration, check system operation before
commencing work.
MEI systems will not cut
motion to any section of
equipment that has
reached a limit. This can
lead to the a breech of the
set limit.
Once a limit is set, the internal alarm will sound and the RED LED
will light if the equipment reaches the current limit. Always check
that the limit activates at the set point. A limit cannot be deactivated when
close to or at the limit. Observe the operational limitations given in section 4.
