562200-000, Issue 1.2, December 2015
51 of 62

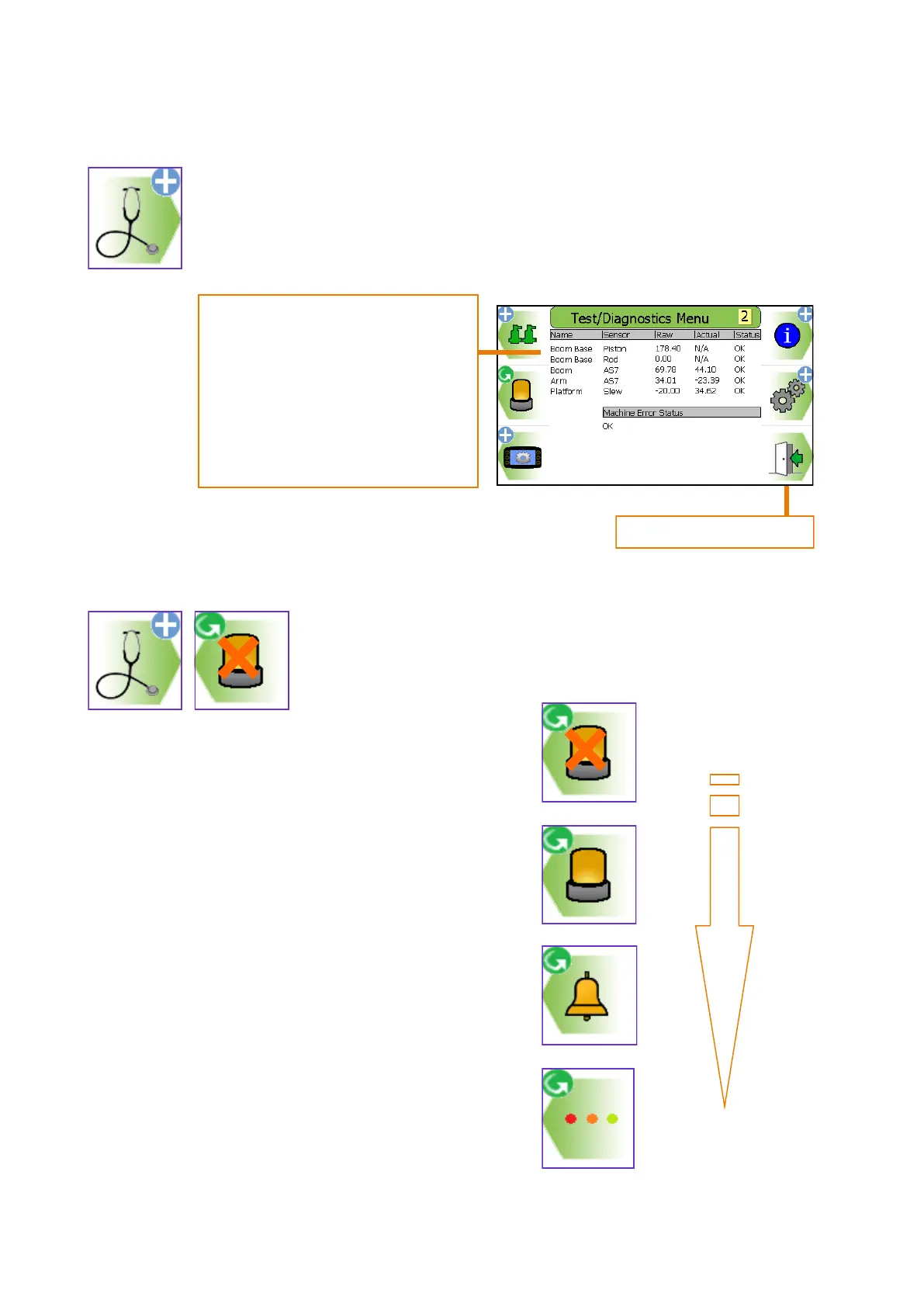

12.2 Sensor Data
Angle values in the Actual column represent the angles of the monitored parts
of the machine.
12.3 Beacon, LED and Internal / External Alarm Function Test
Press the Beacon icon button with painted cross
button to activate the beacon (if fitted)
Press the Beacon icon button to activate the external
alarm (if fitted)
Press the Alarm icon button to activate the internal
alarm and display LEDs
Press the LED icon button to deactivate the internal
alarm and display LEDs
Exit to previous menu
Piston raw = Boom full pressure
Rod raw = Boom rod pressure
Boom Actual = Boom angle
Arm Actual = Arm angle
Platform Actual = Slew angle
To Next Page
