562200-000, Issue 1.2, December 2015
38 of 62

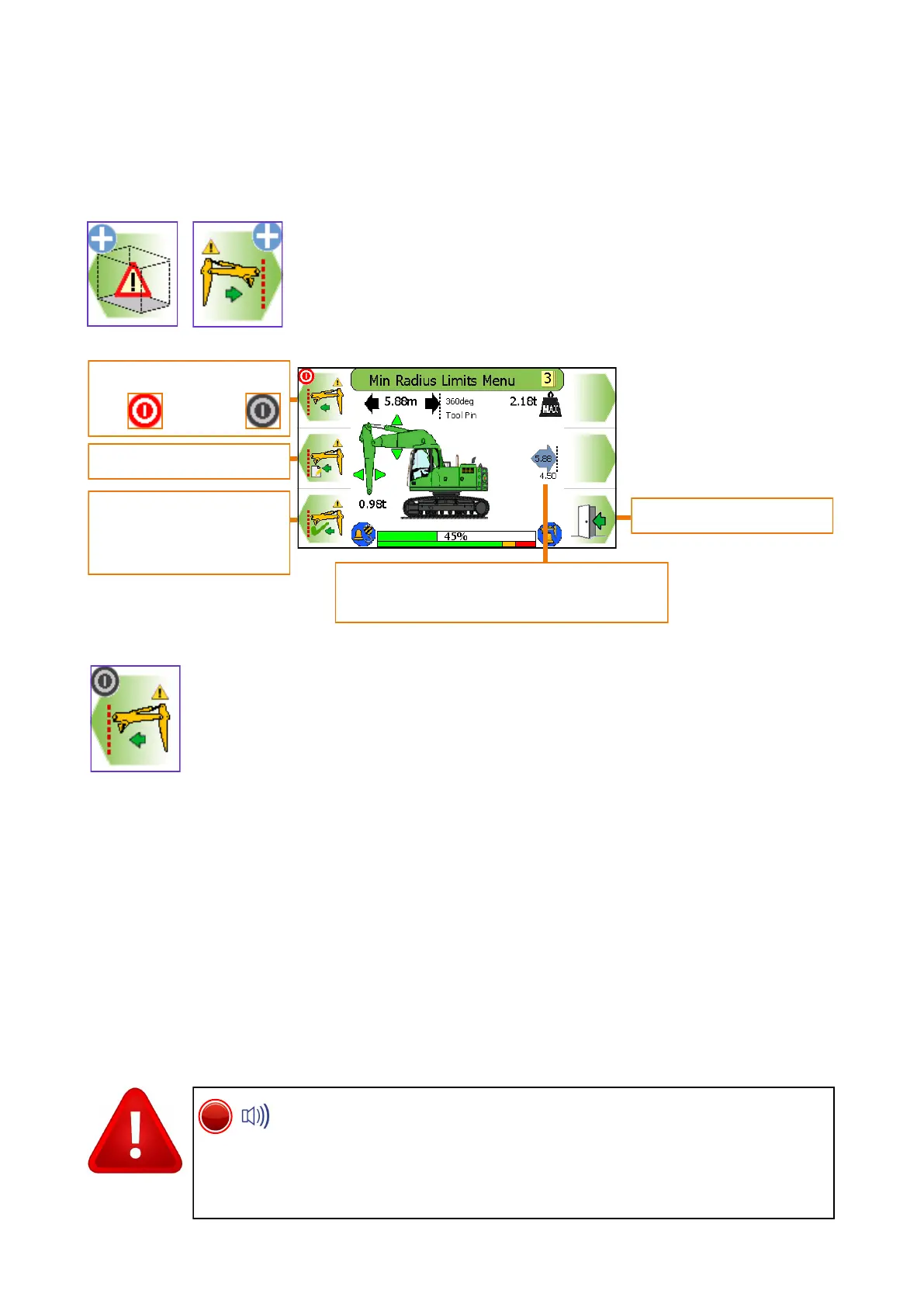

8.3 Min Radius
8.3.1 Min Radius Limit Menu
A min radius limit can be set by entering a known radius on the
keypad or by manually moving the machine to the desired limit.
Using the Min Radius Limits Menu, the min radius limit can be switched ON
and OFF, see sections 8.3.2 to enter a known min radius and section 8.3.3 for
setting the min radius by moving the machine.
Once a limit is set, the internal alarm will sound and the RED LED
will light if the equipment exceeds the current limit. Always check
that the current limit activates at the set point. The restriction cannot be de-
activated if in the alarm state. Observe the operational limitations given in
section 4.
Exit to previous menu
Set min radius limit us-
ing current nearest
part of equipment
Turns monitoring
ON and OFF
Enter a value
Current nearest point. Only displayed if
a min radius limit is set.
To Next Page
