8.3.3 Min Radius Limit Setting - using Current nearest Point
Set the limit using the nearest point of the machine.
Ensure the equipment is off the ground before set-
ting the limit.
Once a limit is set, the internal alarm will sound and the RED LED
will light if the equipment exceeds the current limit. Always check
that the current limit activates at the set point. The restriction cannot be de-
activated if in the alarm state. Observe the operational limitations given in
section 4.

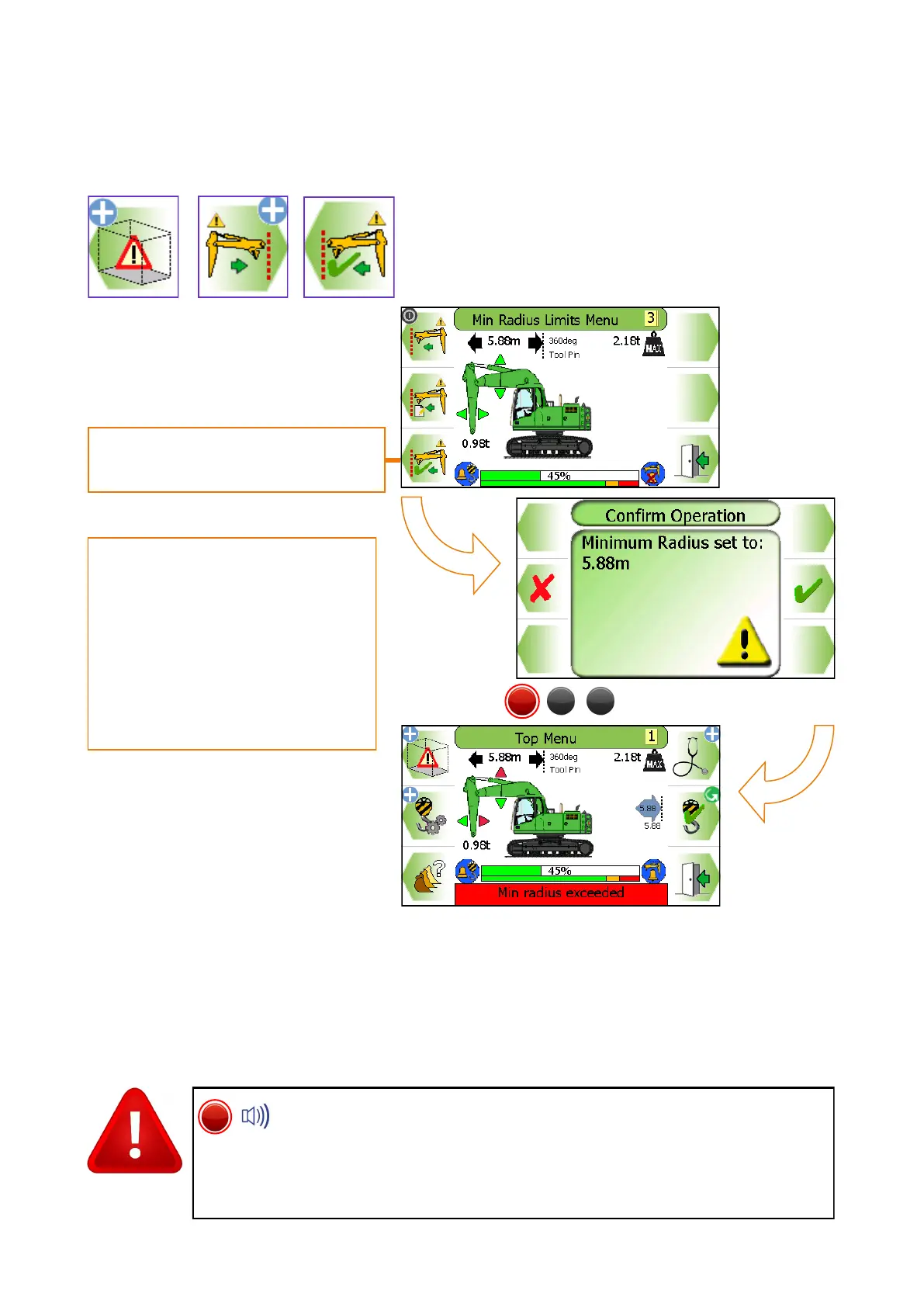

Move equipment to required min
radius limit and press this button
To set the min radius limit using
the machine, move the equip-
ment to the desired minimum ra-
dius, and press the ‘current near-
est point’ button. A confirmation
box will appear reporting the ra-
dius set. Press the TICK button
to continue.
To Next Page
