DMT settings
7.2.3.3 General setting: output current = measured value or adjustable
(= 2 in the identity code)

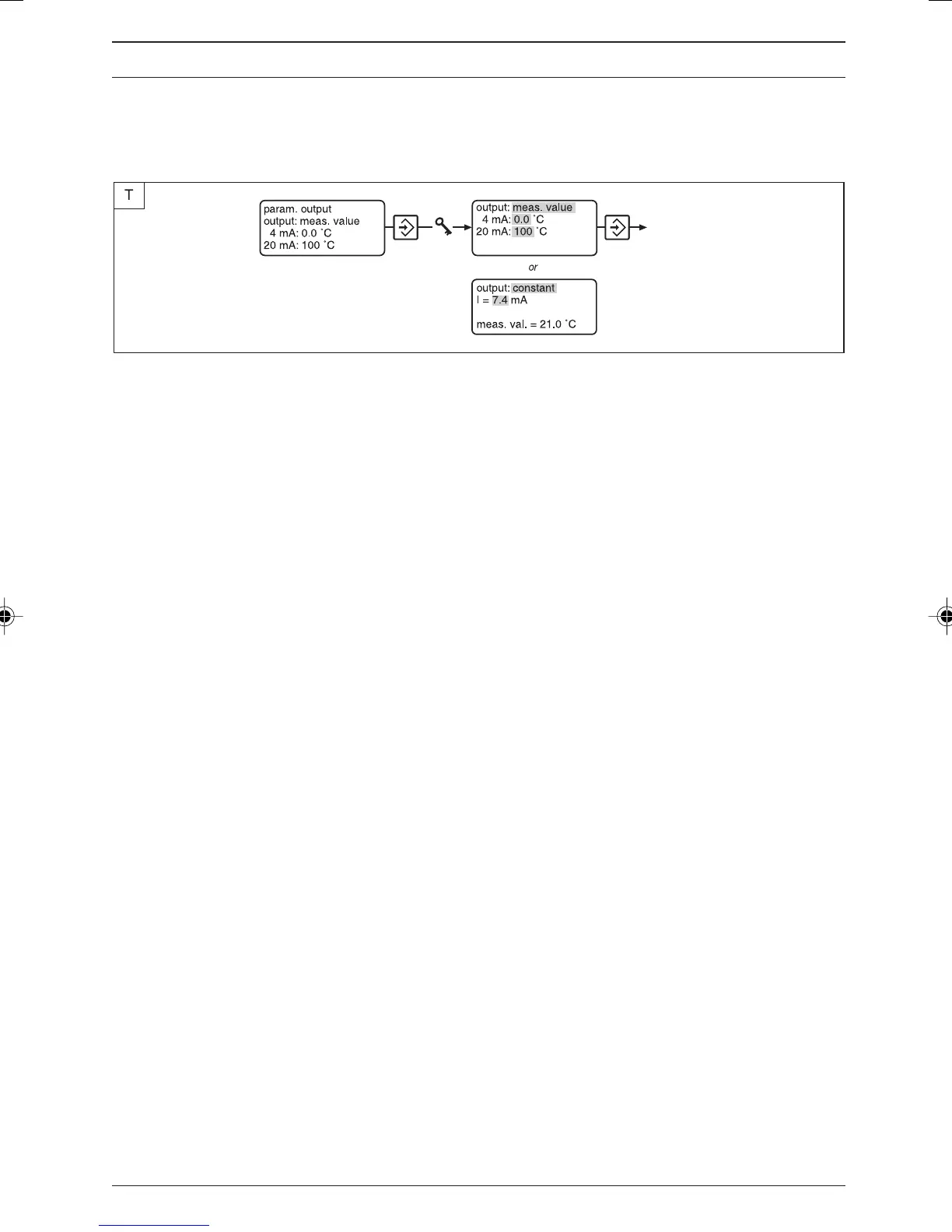

왘 Under “output”, select meas. value or constant:
Select meas. value if the output current should be proportional to the
measured value (output = measured value):
Select constant if the output current is to be entered manually
(output = adjustable).
The selection you make under “output” influences the subsequent settings
options:
If you selected “output” meas. value:
왘
Under “4 mA”, enter the value at which the output current should be 4 mA.
왘 Under “20 mA”, enter the value at which the output current should be
20 mA.
Entry If you selected “output” constant:
왘 Under “l”, enter any output current between 4 and 20 mA.
7.2.3.4 General setting: output = 4 mA
(= 4 in the identity code)
No information display will appear in the operating menu.
The DMT emits a constant output current of 4 mA.
This setting is used for the function check and/or is selected if the DMT is to
be used purely as a display device (the power consumption is minimal in this
case).
