ProMinent
®
Page 48
Technical data / Spare parts and accessories
Ambient conditions
Operating temperature: 0 … 55 °C
Storage temperature: -20 … 70 °C
Air humidity: max. 95 % rel. humidity, non condensing
Dimensions and weight
Dimensions: Wall/pipe mounted version 126x136x78 mm
(WxHxD)

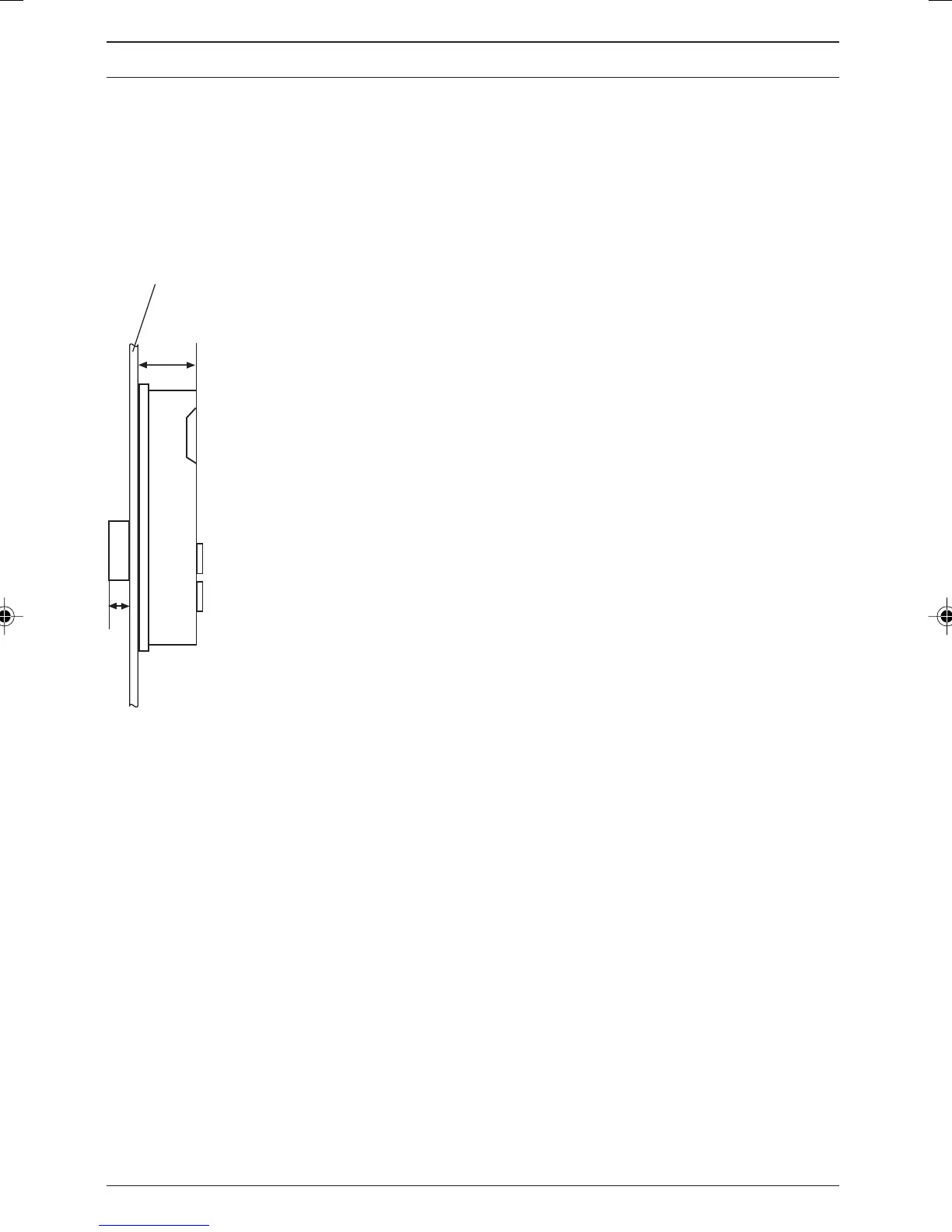

Panel mounted version 35 mm, 30 mm (D
i
, D
o
)*
Weight: Wall mounted, 450 g
Panel mounted, 300 g
*D
i
= depth inside, D
o
= depth outside
Admissible cable diameters: threaded connector:
M 20 x 1.5: Terminal area Ø 2 … Ø 7 mm
(SW 22)
M 16 x 1.5: Terminal area Ø 5 … Ø 10 mm
(SW 19)
reducers:
M 20: Terminal area Ø 4 … Ø 13 mm
M 16: Terminal area Ø 3 … Ø 9 mm
Admissible lead
cross sections: 0.14 … 0.75 mm
2
Admissible screen diameters:
Ø 2 … Ø 5 mm
Material information
Housing: PPE-GF10
Wall/pipe bracket: PPE-GF20
Keypad: Silicon
Housing seal: Silicon
13 Spare parts and accessories
Assembly kit for wall/pipe mounting Order no. 1003205
Pipe clamps for pipe mounting Order no. 1002777
Plug-in power supply 90-264 V AC/24 V DC Order no. 1006100
Probes See product catalogue
Probe cable See product catalogue
NOTE
Please give the identity code when ordering electronic
component kits.
D
o
Control
panel
D
i
BA_DM_163_03_08_GB.p65 27.03.2008, 13:11 Uhr48
