Page 52

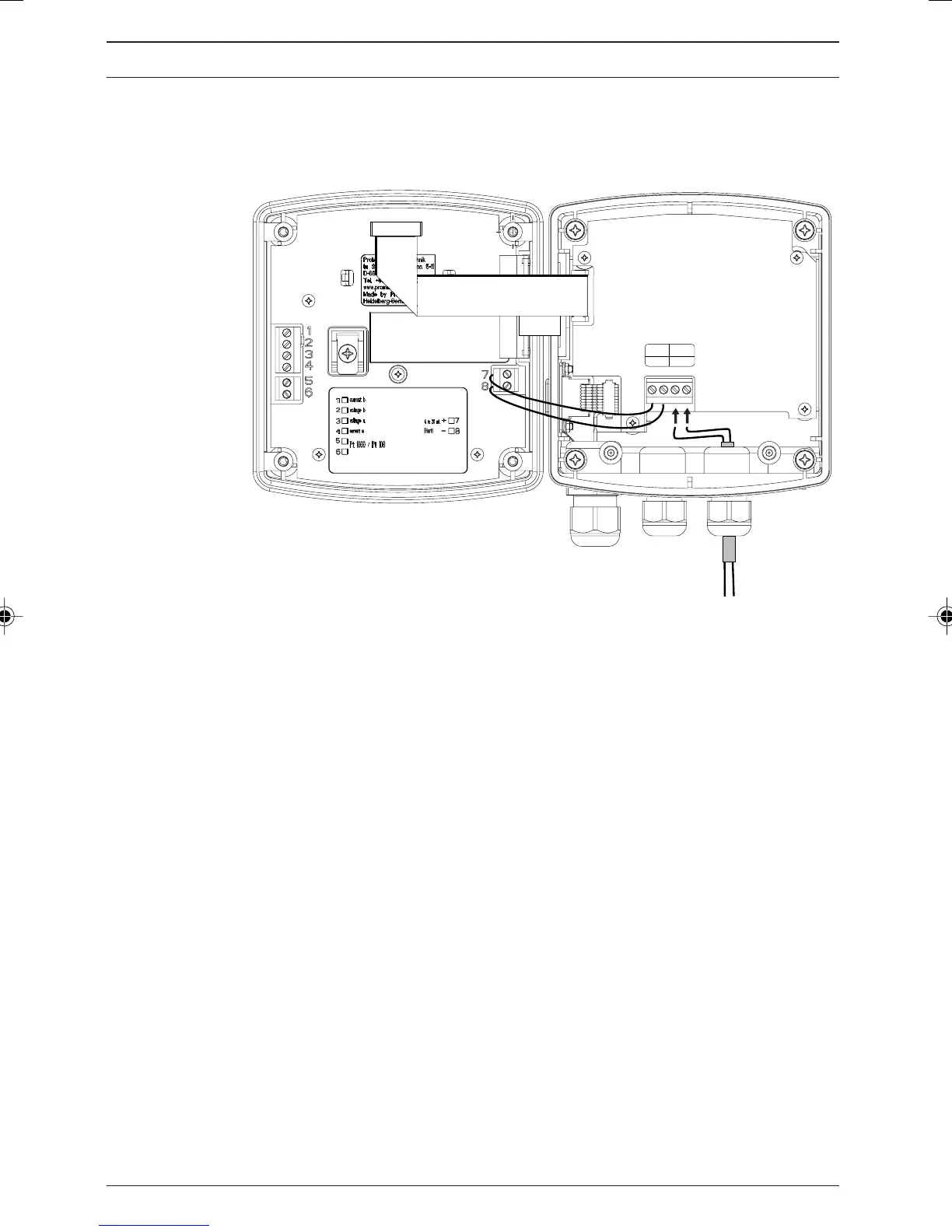

PROFIBUS
®
-DMT power supply
+ - + -
Intern Extern
1 2 3 4
+ - + -
Supply voltage
16-30 V DC
NOTE
To operate the PROFIBUS
®
-DMT temporarily without the
PROFIBUS
®
, unplug the ribbon cable (see fig.) and briefly
disconnect from the power supply.
To operate the PROFIBUS
®
-DMT with the PROFIBUS
®
again,
plug the ribbon cable back in (plug in the connector on the
side of the PROFIBUS
®
circuit board with the red edge of the
ribbon cable facing upwards (see fig.)). Briefly disconnect
from the power supply.
PROFIBUS
®
circuit board terminal connection
Ribbon cable
BA_DM_163_03_08_GB.p65 26.03.2008, 10:20 Uhr52
