ProMinent DULCOMETER DMT Series - Wiring Example - Two Wire System

ProMinent
®
Page 51
=
~
2
1
=
3
4
5
6
+
-
+
-
+
-
+
-
+
-
1 DMT transducer
2 Controller
3 Meter
4 Recorder
5 24 V DC (16...30 V DC/40 V DC) power supply unit
6 4-20 mA current loop
IMPORTANT
• The signal inputs of all devices in the current loop must be
electrically isolated from the current output.
• Take into account the sum of the ohmic resistances of all
devices in the current loop (excluding power supply).
The input voltage of the transducer must never drop below
16 V during operation.
The measured value will otherwise be wrong.

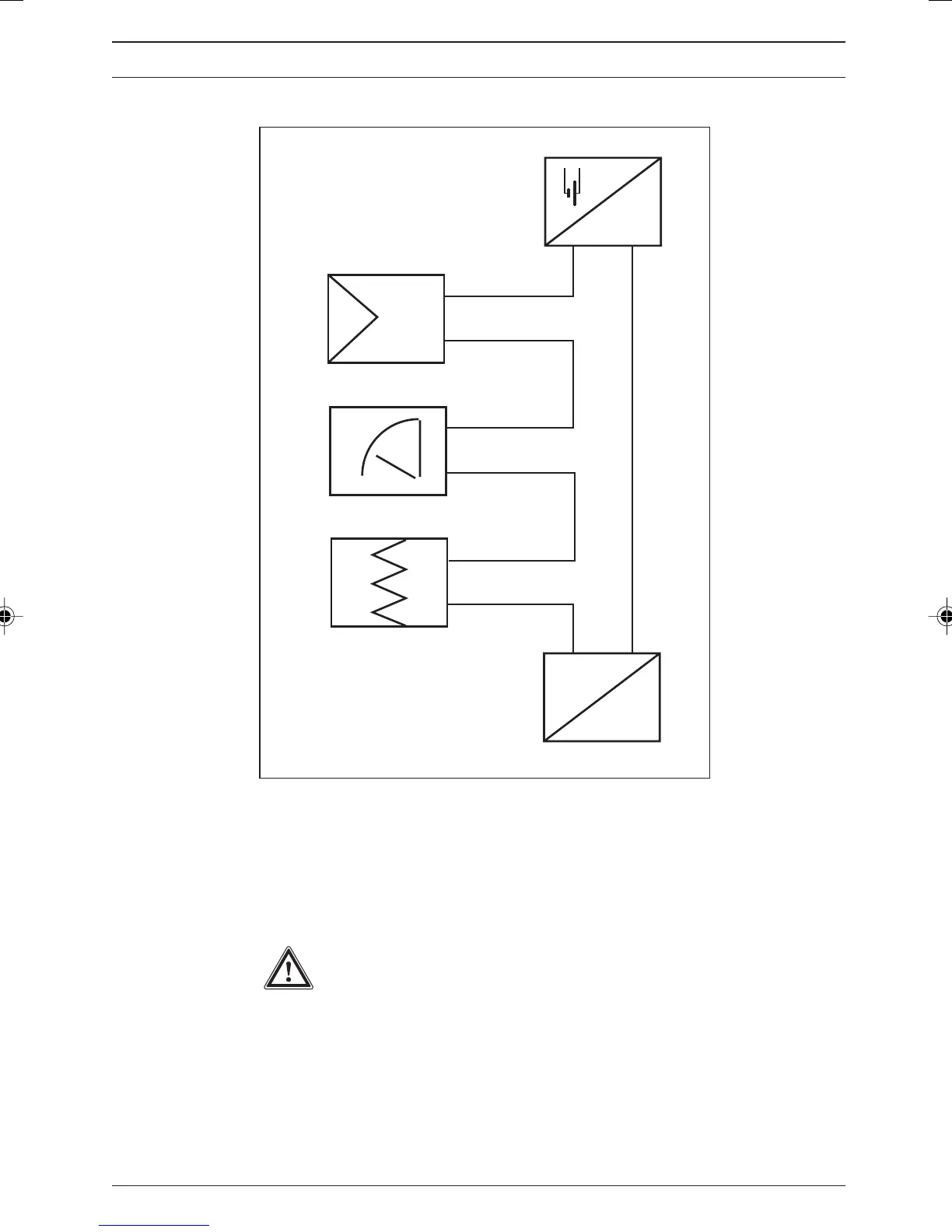

Wiring example - two wire system
