ProMinent gamma/ X User Manual

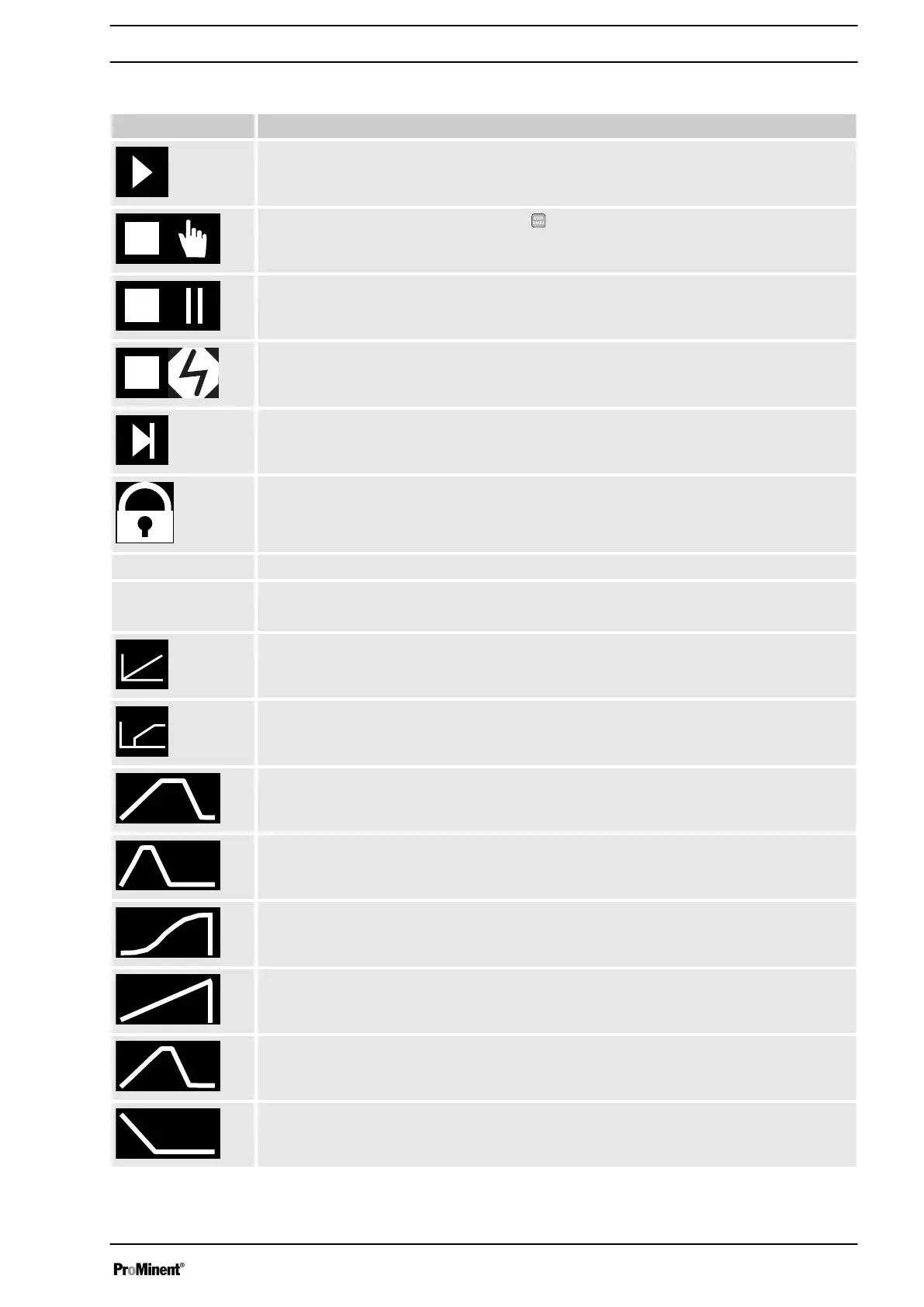

Identifier and error displays:
Identifier Meaning
The pump is working or waiting for a starting signal.
The pump was manually stopped using the
[STOP/START] key.
The pump was remotely stopped (Pause) - via the "External" terminal.
The pump was stopped by an error.
Only with cyclical batch metering: the pump waits for the next cycle.
Only with
‘Access. protect’ : the pump software is locked.
‘AUX’
The pump is currently pumping at auxiliary capacity and/or auxiliary frequency.
‘memory’
Only in
‘CONTACT’ and ‘BATCH’ operating modes:
The auxiliary function "Stroke memory" has been set.
The pump is in
‘ANALOGUE’ operating mode.
The
‘Curve è linear’ type of processing is set.
The pump is in
‘ANALOGUE’ operating mode.
The
‘Curve è Upper side band’ type of processing is set.
‘Metering è Discharge stroke è optimum’ metering profile has been set.
‘Metering è Discharge stroke è fast’ metering profile has been set.
‘Metering è Discharge stroke è sine mode’ metering profile has been set.
‘Metering è Discharge stroke è continuous’ metering profile has been set.
‘Metering è Discharge stroke è DFMa’ metering profile has been set.
‘Metering è Discharge stroke è normal’ metering profile has been set.
Overview of Equipment and Control Elements
17

ProMinent gamma/ X Specifications

General

Protection class	IP65
Max. Pressure	25 bar
Power supply	100-230 V, 50/60 Hz
Material of pump head	PVDF, Stainless steel
Temperature range	-10 °C to +45 °C
Type	Diaphragm dosing pump
Stroke length	Adjustable
Stroke frequency	max. 180 strokes/min
Materials in contact with the medium	PVDF, PTFE, stainless steel
Control	Manual, external control via contacts or 0/4-20 mA signal
Control Options	External, potential-free contacts, 0/4-20 mA
Dosing Accuracy	±2%
