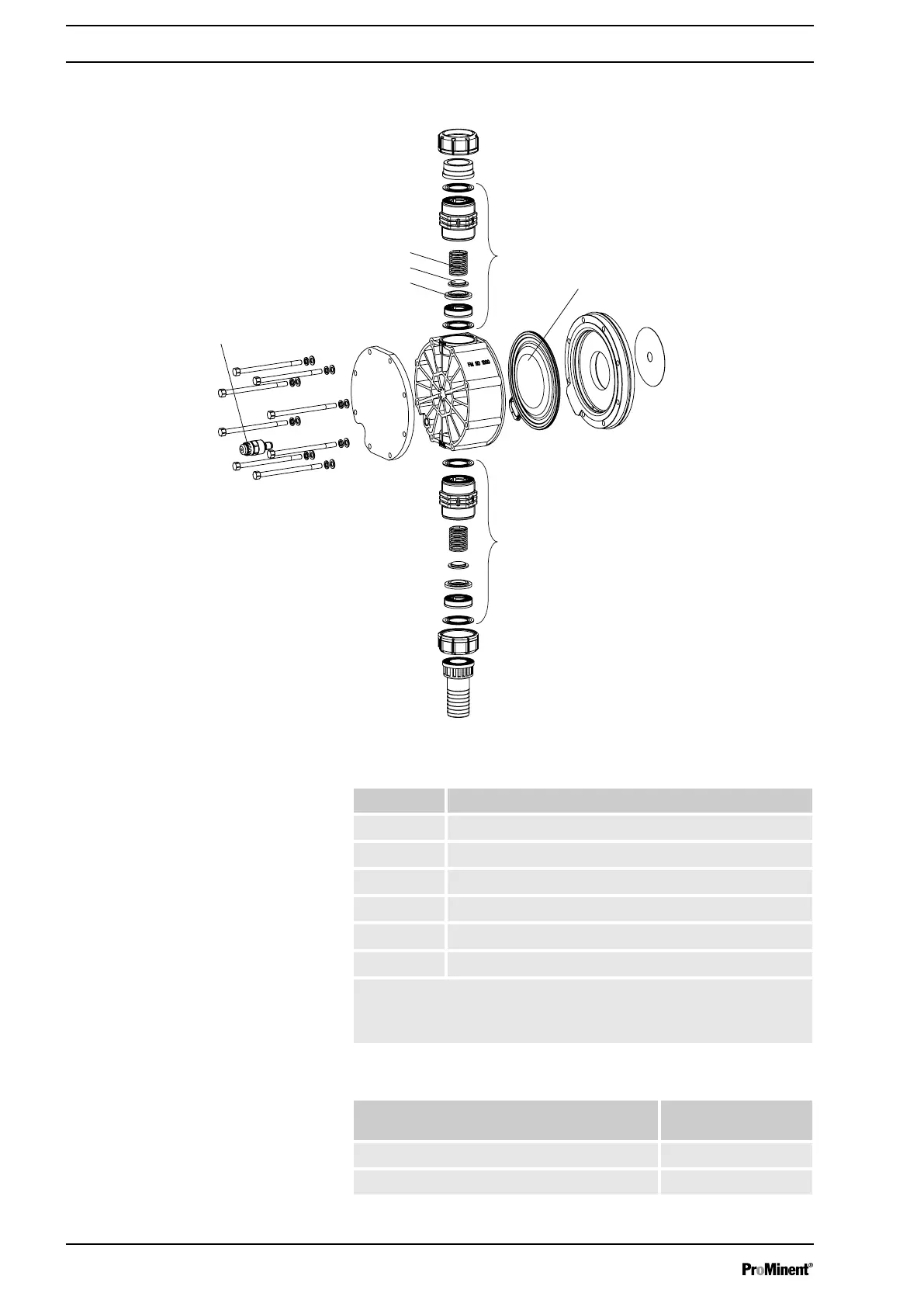

Fig. 45: Liquid end for Sigma/ 3 1000 PVT, PCT, PPT
Pos. Description
1 Spring *
2 Ball
3 Ball seat
4 Diaphragm rupture sensor, optical *
5 Valve
6 Multi-layer diaphragm
The items listed are included in the spare parts kit.
* Special accessories (not included in the spare parts kit). Technical
changes reserved.
Tab. 17: Order no. for liquid end for Sigma/ 3, 1000-DN 32 PVT
Spare part Type 070410, 070580,
040830
Liquid end 1029578
Spare parts kit 1035951
Liquid end for Sigma/ 3 1000 PVT, PCT,
PPT
