ProMinent S3Cb - Page 99

Spare part Type 070410, 070580,
040830
Diaphragm rupture sensor, optical 1033323
Valve 1002806
Multi-layer diaphragm 1029603
Tab. 18: Order no. for liquid end for Sigma/ 3, 1000-DN 32 PCT
Spare part Type 070410, 070580,
040830
Liquid end 1034829
Spare parts kit 1035951
Diaphragm rupture sensor, optical 1033323
Valve 1002806
Multi-layer diaphragm 1029603
Tab. 19: Order no. for liquid end for Sigma/ 3, 1000-DN 32 PPT
Spare part Type 070410, 070580,
040830
Liquid end 1034830
Spare parts kit 1035951
Diaphragm rupture sensor, optical 1033323
Valve 1002806
Multi-layer diaphragm 1029603
P_SI_0114_SW
*
*
*
*
*
10

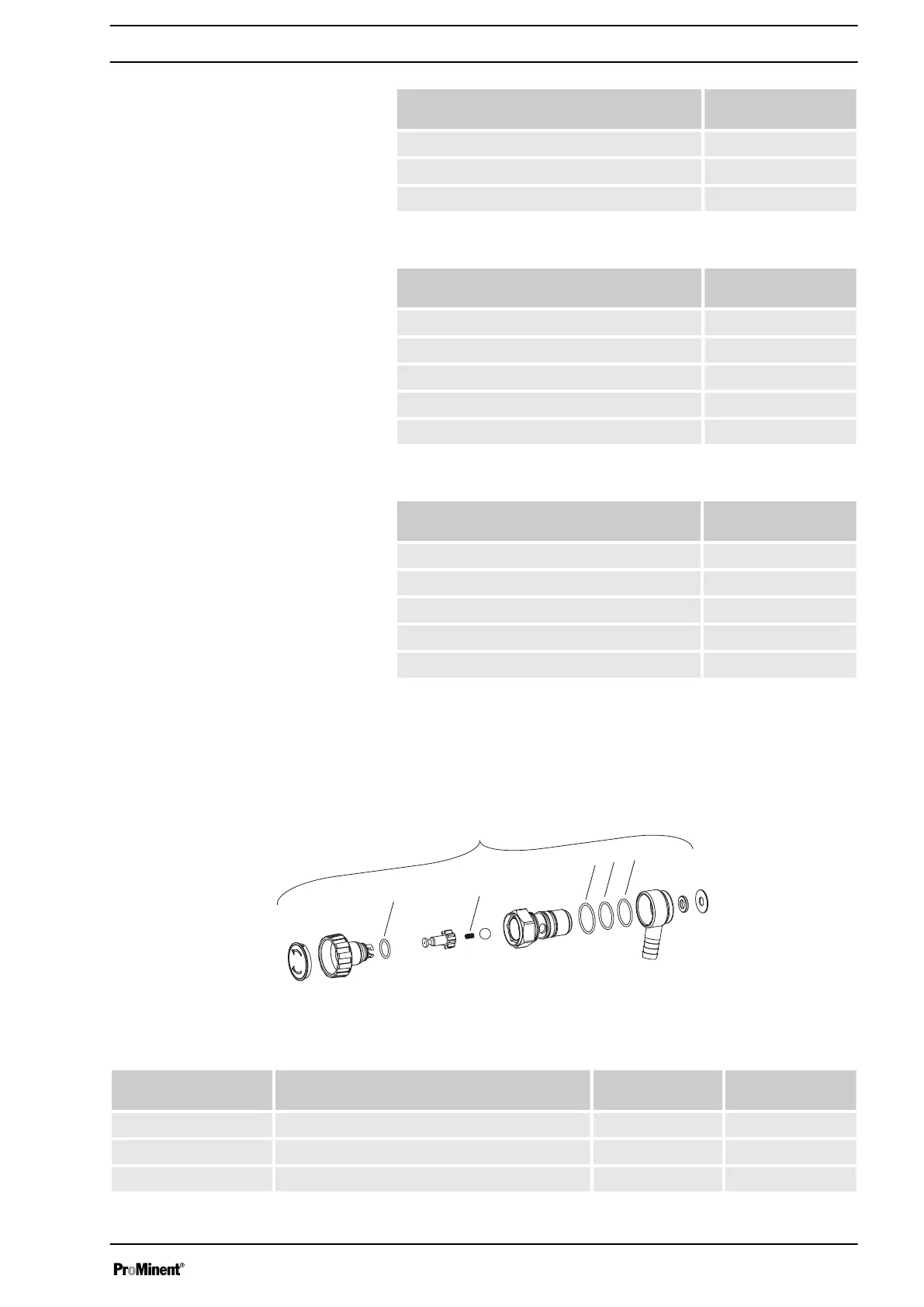

Fig. 46: Sigma/ 3 PVT bleed valve
Pos. Description Type 120145,
120190, 120270
Type 070410,
070590, 040830
10 Integrated bleed valve DN10 PVA 1041069
10 Integrated bleed valve DN10 PVE 1041070
10 Integrated bleed valve DN20 PVA 1041073
Sigma/ 3 PVT bleed valve
Liquid ends for Sigma/ 3
99
