6.14 Connecting the Fire Brigade Panel Controller
If the 6100 is equipped with the optional Fire Brigade Panel control interface ensure that the ribbon
cable and key-switch earthing cable are re-connected to the rear of the controller as shown in figure
6.13.

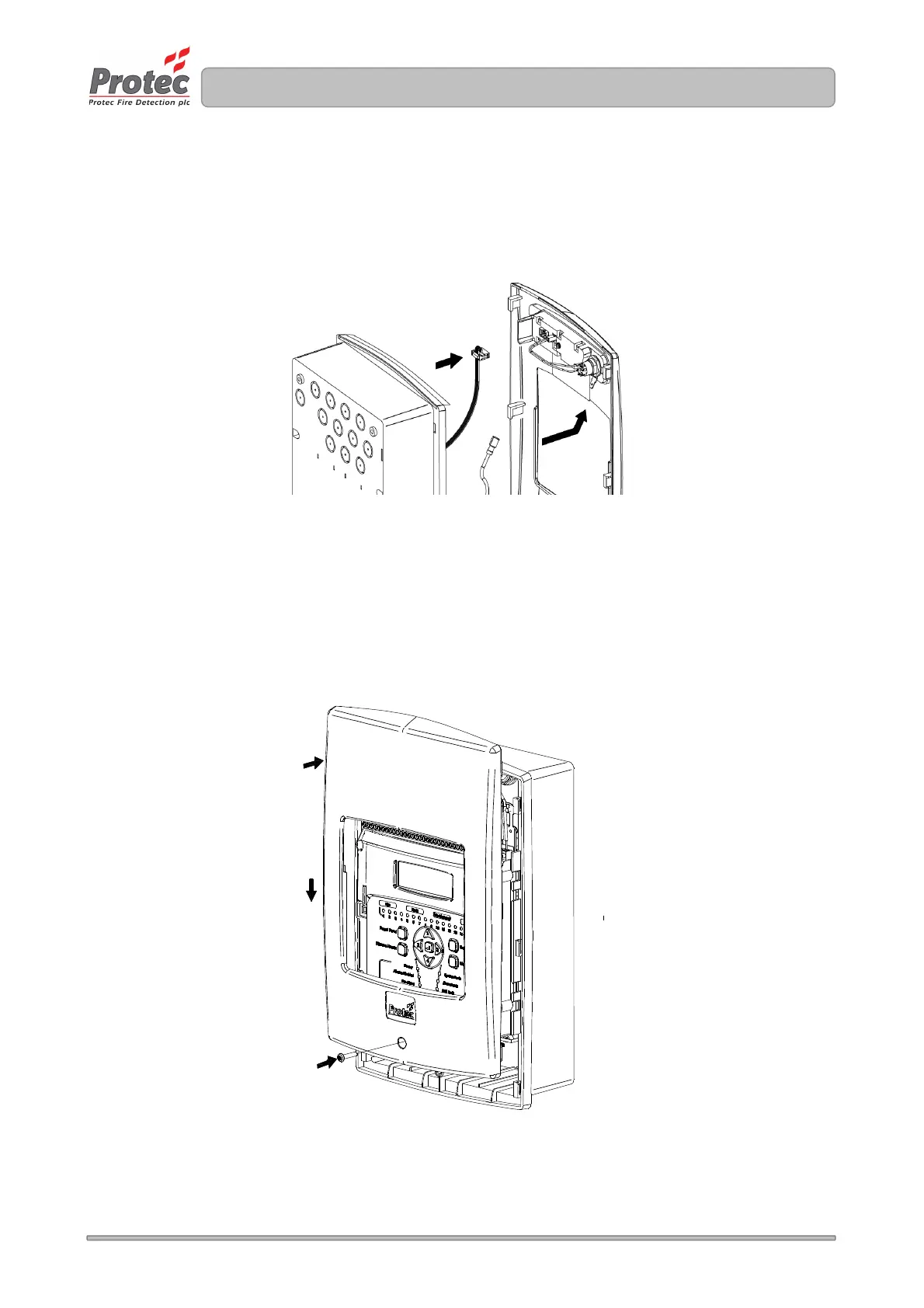

Figure 6.13 Reconnecting the Fire Brigade Panel Connections
6.15 Re-fitting the Door
Before replacing the door ensure all mains, loop, alarm and auxiliary wiring has been completed and
will not foul the door when it is refitted.
Replace the plastic door by raising the door and placing flush to the back-box of the panel ( figure 6.14
step 1 ). Slide the door down and ensure it pushes fully home into the back box ( figure 6.14 step 2 ).
Finally screw in the fixing screw, taking care not to over tighten it ( figure 6.14 step 3 )
Figure 6.14 Refitting the 6100 door
6.16 Switching the Mains Power On
Switch the fused isolator to the ‘ON’ position. The green ‘Power’ indicator will illuminate and, assuming
all other connections are correct, the 6100 should show one fault on the display ( a ‘panel reset ‘ fault
). The 6100 is now ready to be programmed and commissioned.
