MAPPING SUCCESS
Displayed when the 6100 has successfully logged and mapped the loop. Mapping data is now in
memory ready for loop devices to be allocated.
MAPPING FAILED
Displayed if the 6100 could not successfully log or map the loop. This could be because there are
more than 192 devices on the loop.

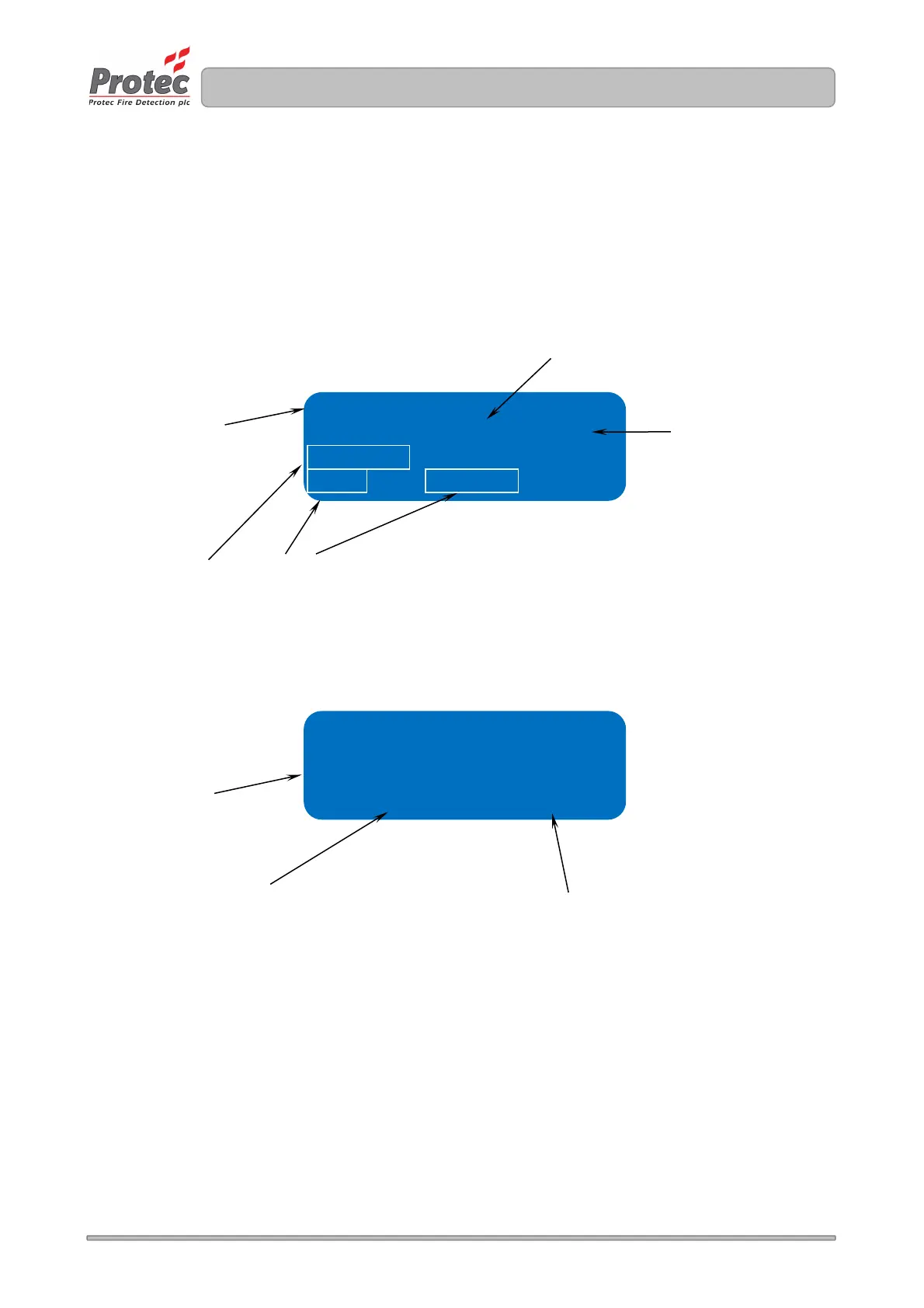

Figure 7.1 6100 loop logging display
Figure 7.2 6100 loop mapping display
LOGGING LOOP
Logging = 001 ( 000 )
MAPPING = 000
ISOL 000 CLOSED 000
MAPPING LOOP
Logging = 029 ( 000 )
MAPPING = 001
ISOL 001 CLOSED 001
This field indicates the number
of loop devices logged
This field indicates the change in
the number of logged devices
compared to those stored in the
panel
Row 1 displays the logging
process
This field indicates the number of
loop Isolators detected
This field indicates the number of
loop devices seen during the
mapping phase
This field indicates the number of
loop isolators closed during the
mapping phase
These fields are not used during
logging
