Configuration MP.11-R Installation and Management
Intra-Cell Blocking (BSU Only; Bridge Mode Only)
112

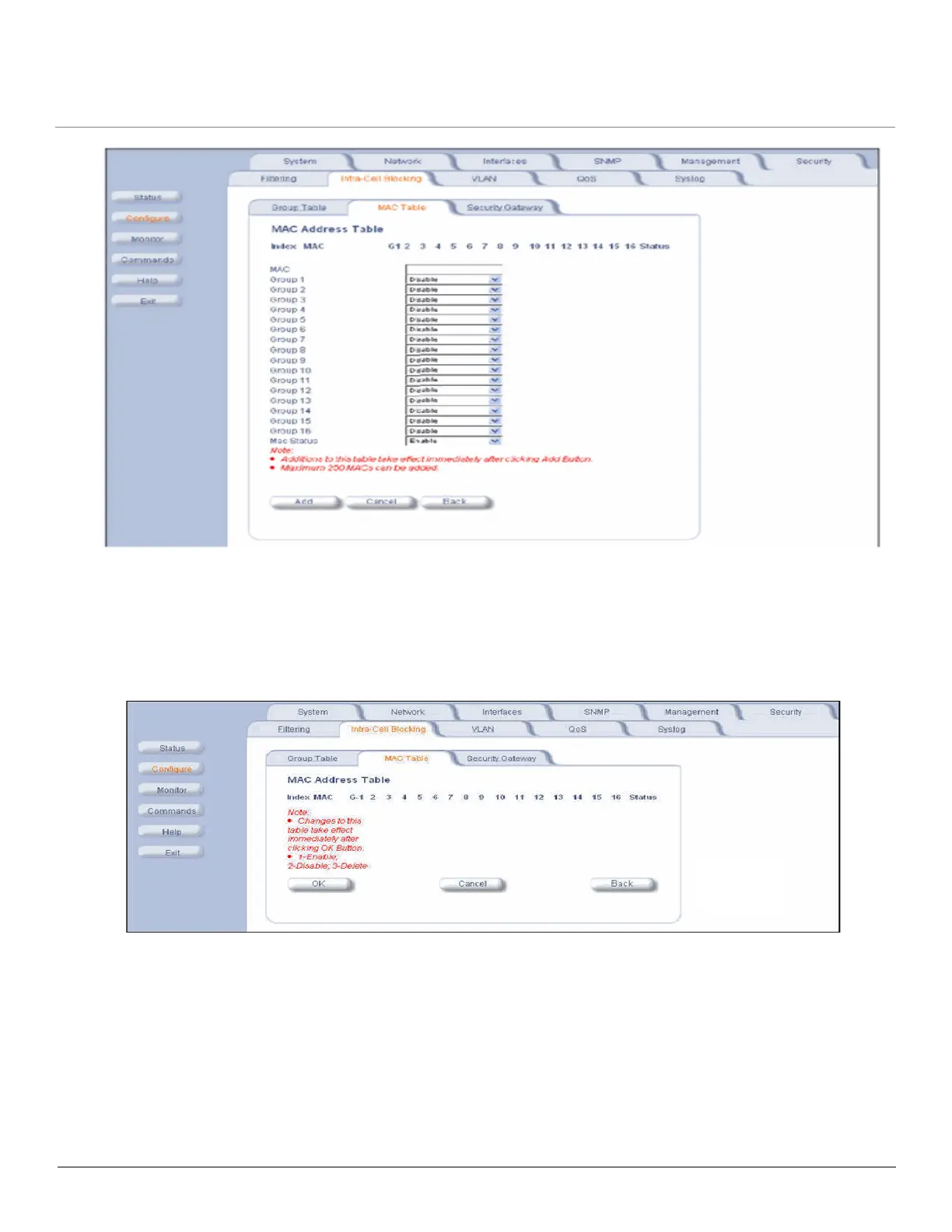

Enter the MAC address of the SU. Select Enable from the drop-down menu for the Group Index.
Click Add. The MAC address is assigned to the groups. Additions to the MAC Table take effect immediately after clicking
Add.
You can Enable, Disable, Delete, or Reassign the groups for a MAC address by clicking Edit/Delete Table Entries. A
maximum of 250 MAC addresses can be added among all filter groups.
Security Gateway
You can configure a Security Gateway to block traffic between SUs connected to different BSUs. Verify that Intra-Cell
Blocking has been enabled on the Group Table tab before configuring the Security Gateway.
