Proxim Tsunami MP.11 2454-R User Manual

Installation and Initialization MP.11-R Installation and Management
Hardware Installation
25

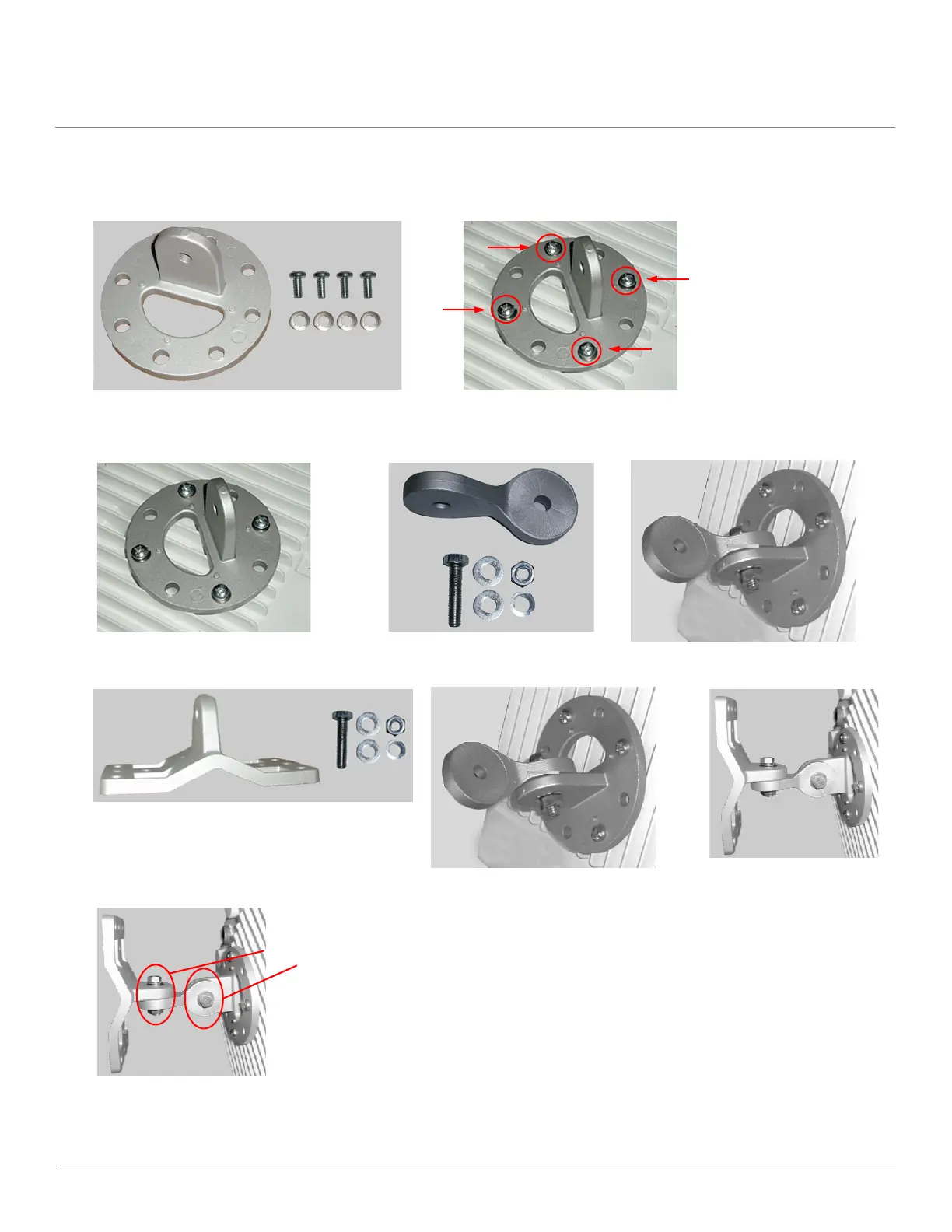

Step 5: Assemble Mounting Hardware
1. Attach the mounting plate (A) using the provided screws and washers (Torque 9 N
.
m/75 in-lbs), such that the unit’s
antenna will be vertically or horizontally polarized when mounted.
2. Attach the extension arm (B) to mounting piece (A) with the screw, nut, and washers provided, as shown below. The
extension arm gives the unit more possible tilt, letting you adjust for azimuth or elevation over a larger angle.
3. Attach the mounting bracket (C) to extension arm (B) with the screw, nut, and washers provided.
4. Tighten assembly (Torque 15 N
.
m/130 in-lbs).
A
Torque 9 N
.
m/75 in-lbs
B
A
C
B
Torque 15 N
.
m/130 in-lbs
