QoS (Quality of Service) Parameters (BSU Only)
131
Configure the following parameters:
• PIR Table Reference Index: Select one of the possible PIRs that have been previously configured from the drop-
down box.
• PIR Priority: This priority per rule defines the order of execution of PIRs during packet identification process. The PIR
priority is a number in the range 0-63, with priority 63 being executed first, and priority 0 being executed last. The PIR
priority is defined within a QoS class, and can be different for the same PIR in some other QoS class. If all PIRs within
one QoS class have the same priority, the order of execution of PIR rules will be defined by the order of definition of
SFCs, and by the order of definition of PIRs in each SFC, within that QoS class.
• Entry Status: This field is always set to Enable.
Click Add to add the entry. The new entry will be added to the PIR list, taking up the next sequential index entry.
You may delete any PIR entry by clicking on the Status drop-down box and selecting Delete.
Associate a New SFC with a QoS Class
On the QoS Class screen, click Details next to Class with which you want to associate a new SFC. Then click Add Table
Entries under the SF Details heading to add a new SFC and associate it to this QoS Class.

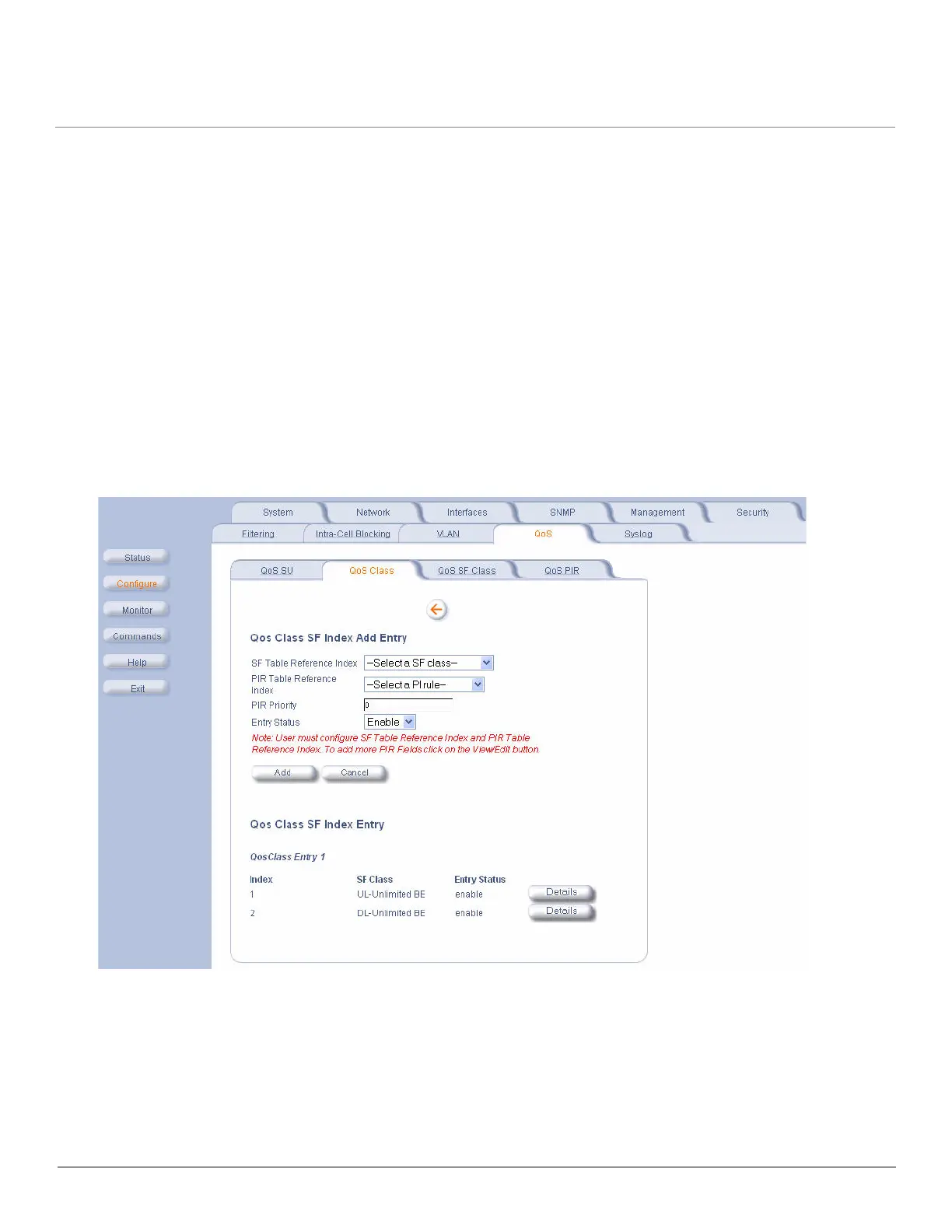

The following parameters are configurable:
• SF Table Reference Index: Select one of the possible SFCs that have been previously configured from the drop-
down box to associate to this QoS Class.
• PIR Table Reference Index: Select one of the possible PIRs that have been previously configured from the drop-
down box to associate to this SFC.
