page 12
Industrial Power Corruptor Manual Rev 1.00
2.2.6 Connecting test power
You will insert your IPC between your main source of power
and the equipment you plan to test.
On the rear of your IPC, find the 10 large gray terminal blocks,
five labelled “from SOURCE” and five labelled “to LOAD”.
Use these terminal blocks to connect the source side power
connections (conductors from your mains panel) and load side power
connections (conductors to the equipment you plan to test).
You can connect single phase, three-phase delta, or three-phase
Y power, depending on what your equipment under test (EUT)
requires for operation. The terminal blocks are labeled for easy
connection.
See following pages for single and 3-phase connection details.

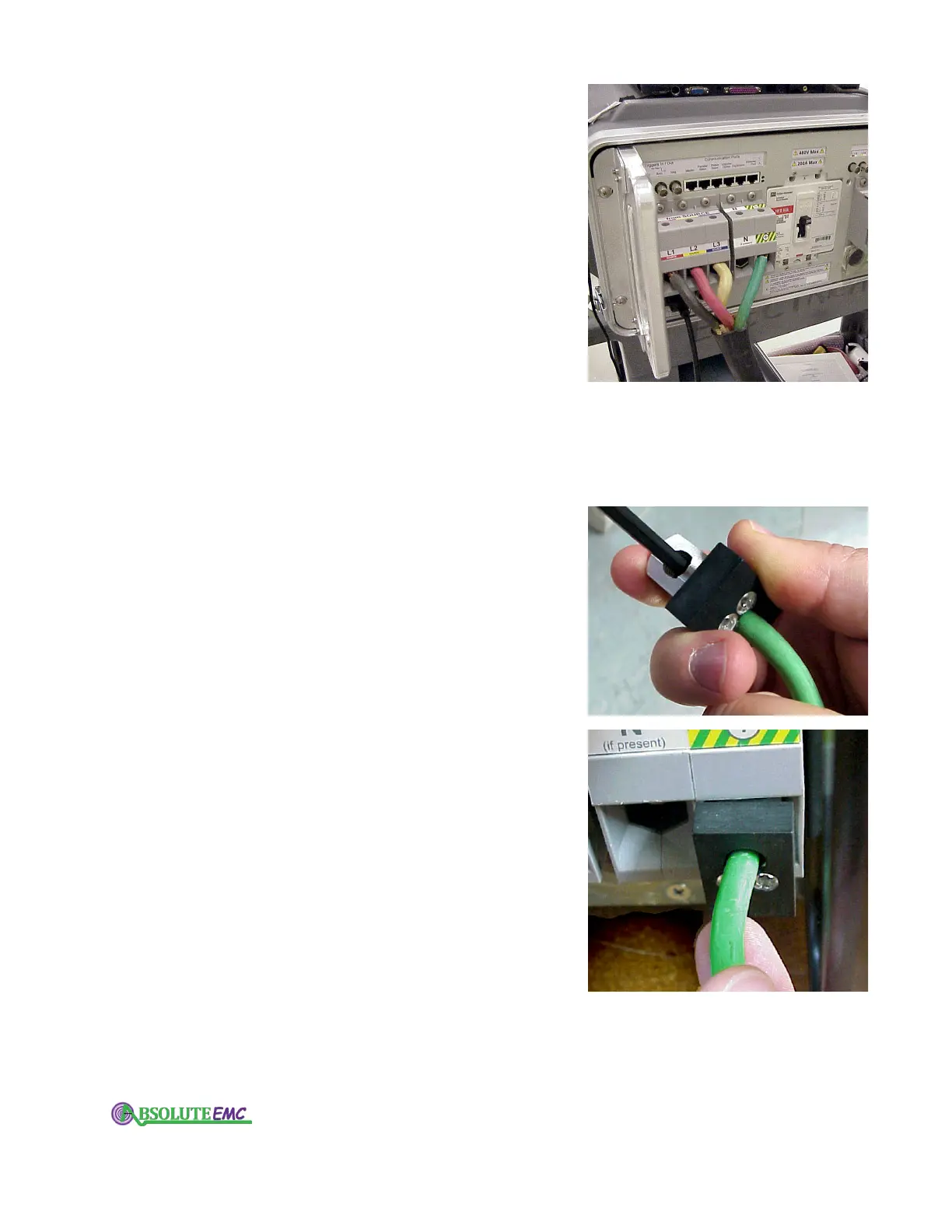

Typical three-phase source-side connections for a
3-phase delta system. The conductors are large
enough to be securely captured by the gray
terminal blocks.
If your conductors are smaller than 2AWG, use the
provided wire size adapters. Insert the stripped
wire (top) into the adapter, making sure that the
set-screw clamps on the conductor, and that the
insulation is fully inside the black insulating
block. Then install the adaptor into the gray
terminal block. Tug firmly on the wire to verify
that it is mechanically secure.
