Industrial Power Corruptor Manual Rev 1.00
Source: terminal block connections from the "to Load" terminal
block connections.
If the optional Motor Operator assembly is installed, the
covered Circuit Breaker "ON" button on the front panel will
function as a switch to close the circuit breaker. When this is
depressed, you will hear the motor operator close the circuit
breaker, and the light on the switch will turn from red to green.

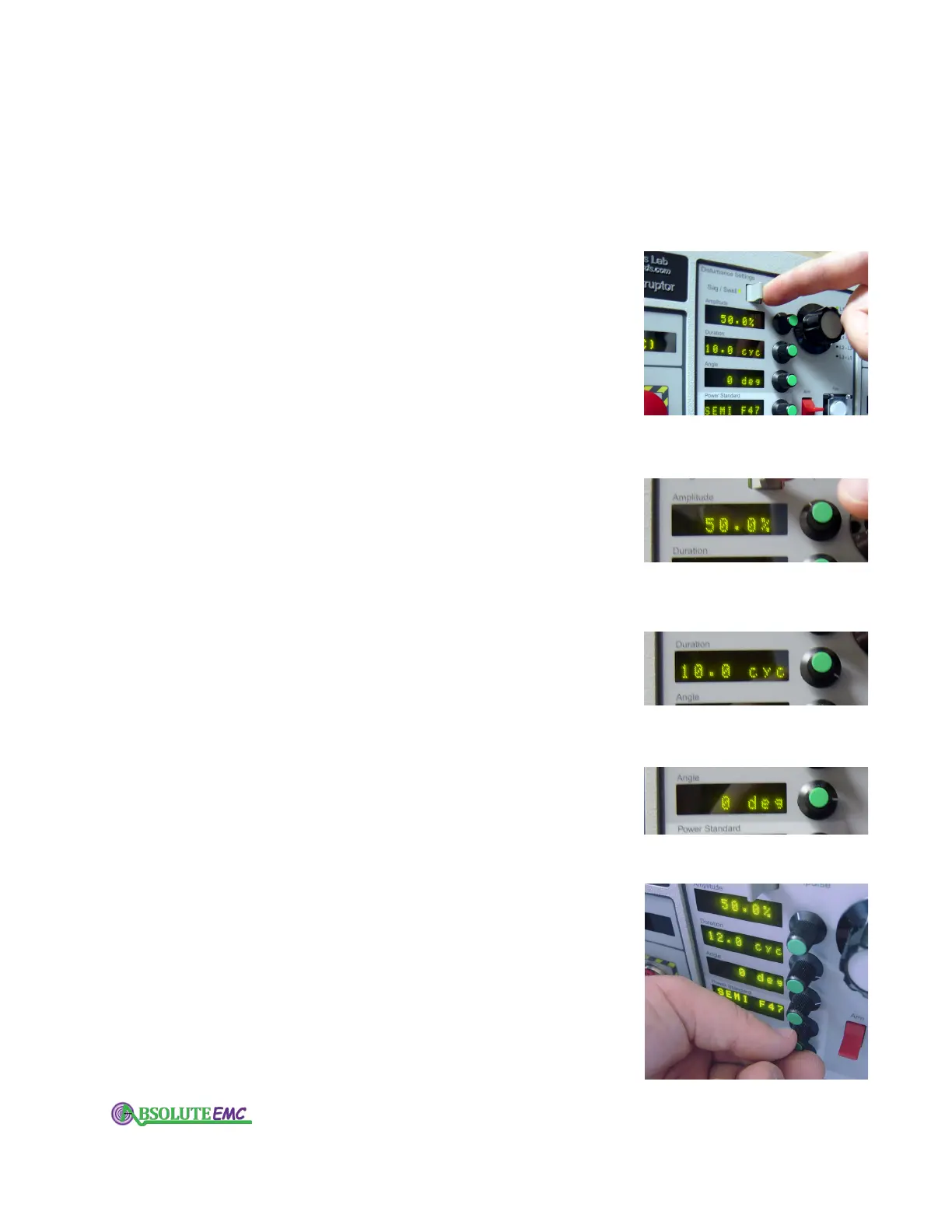

3.2.4 Sag / Swell - Impulse switch
This is used to select between a sag/swell type of event, or
and impulse event (impulse generation is a future option).
3.2.5 Amplitude dial / display
This is used to select/display the amplitude of the event,
displayed as a percentage of the nominal voltage. Range: 0% to
125% of nominal.
3.2.6 Duration dial / display
This is used to select/display the duration of the event.
Displayed in cycles or seconds. Range: notch (200 microseconds)
to 34 seconds.
3.2.7 Angle dial / display
Selects and displays phase angle for start of event. Front
panel dial has 5 degree increments. Software control has 1 degree
increments. The angle is measured from the positive-going zero-
crossing, on the user-selected phase-to-neutral or phase-to-phase
channel, on the source side.
3.2.8 Power Standard dial / display
Permits selection of a standard test recipe, such as SEMI
F47, ITIC, F
AA 1.3.2 etc. If the standard selected has multiple
steps, then each step is shown on the "Step" display below.
