Industrial Power Corruptor Manual Rev 1.00

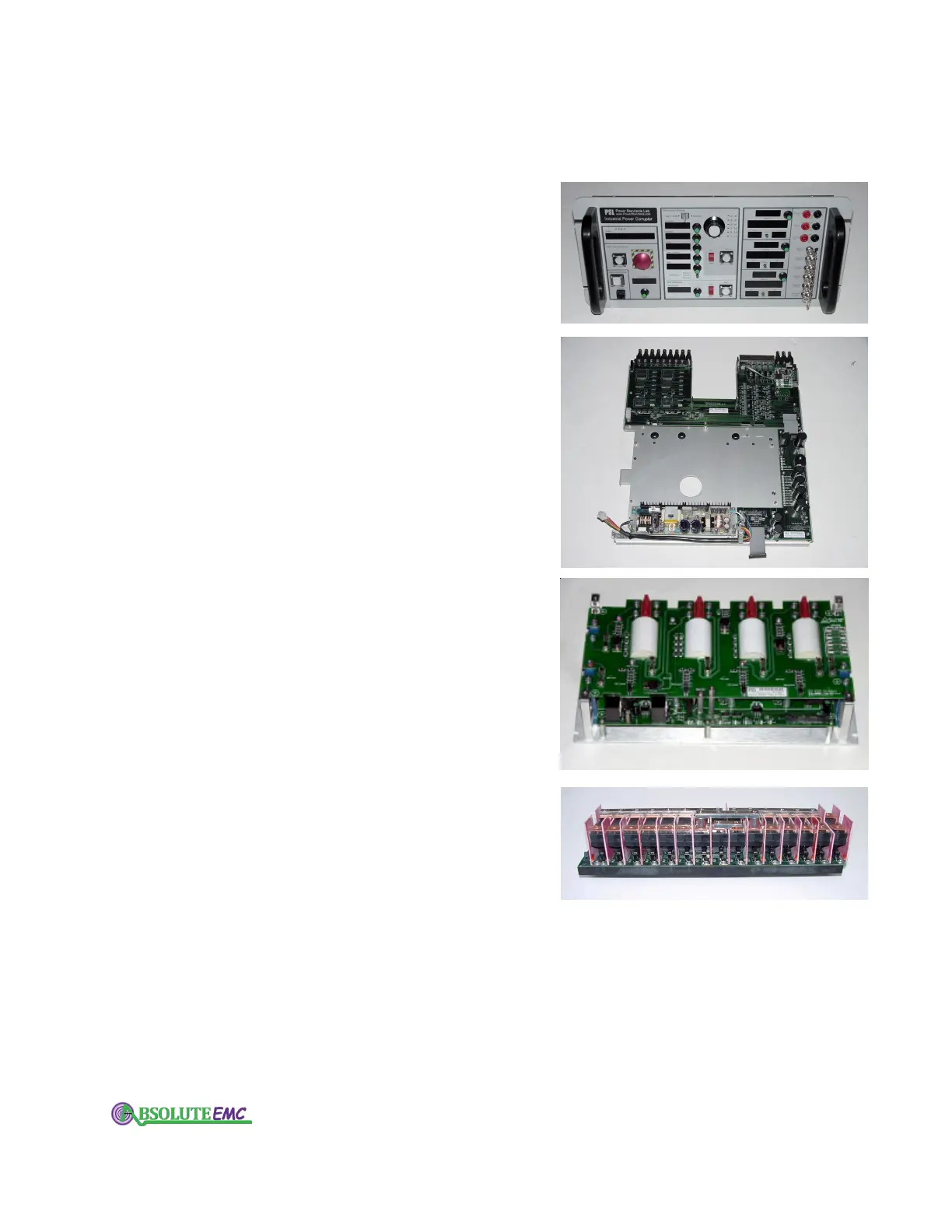

3.1.2 Major modules
Your IPC has been designed in a modular format to assist in manufacturing, quality control, and service.
These primary modules are as follows:
Front Panel Assembly
Consists of a Display printed circuit board (PCB) and a
Control PCB mounted to the front panel with labels.
Main Chassis Assembly
The 24V power supply, the Power Supply PCB, the Data
Acquisition PCB (all on the top side), and the Relay Processor
PCB (on bottom side) are mounted on the main chassis plate.
The IGBT Assembly
This is a separate assembly that gets mounted to the top side of the Main Chassis assembly. It can easily
be removed and replaced should it require servicing or replacement.
The Tap Relay Assembly
This consists of a row of 15 latching relays mounted to a
PCB and supported by Delrin braces running the length of the
board. The relays have interconnecting bus bars for distribution
of power from the relay taps.
