Industrial Power Corruptor Manual Rev 1.00

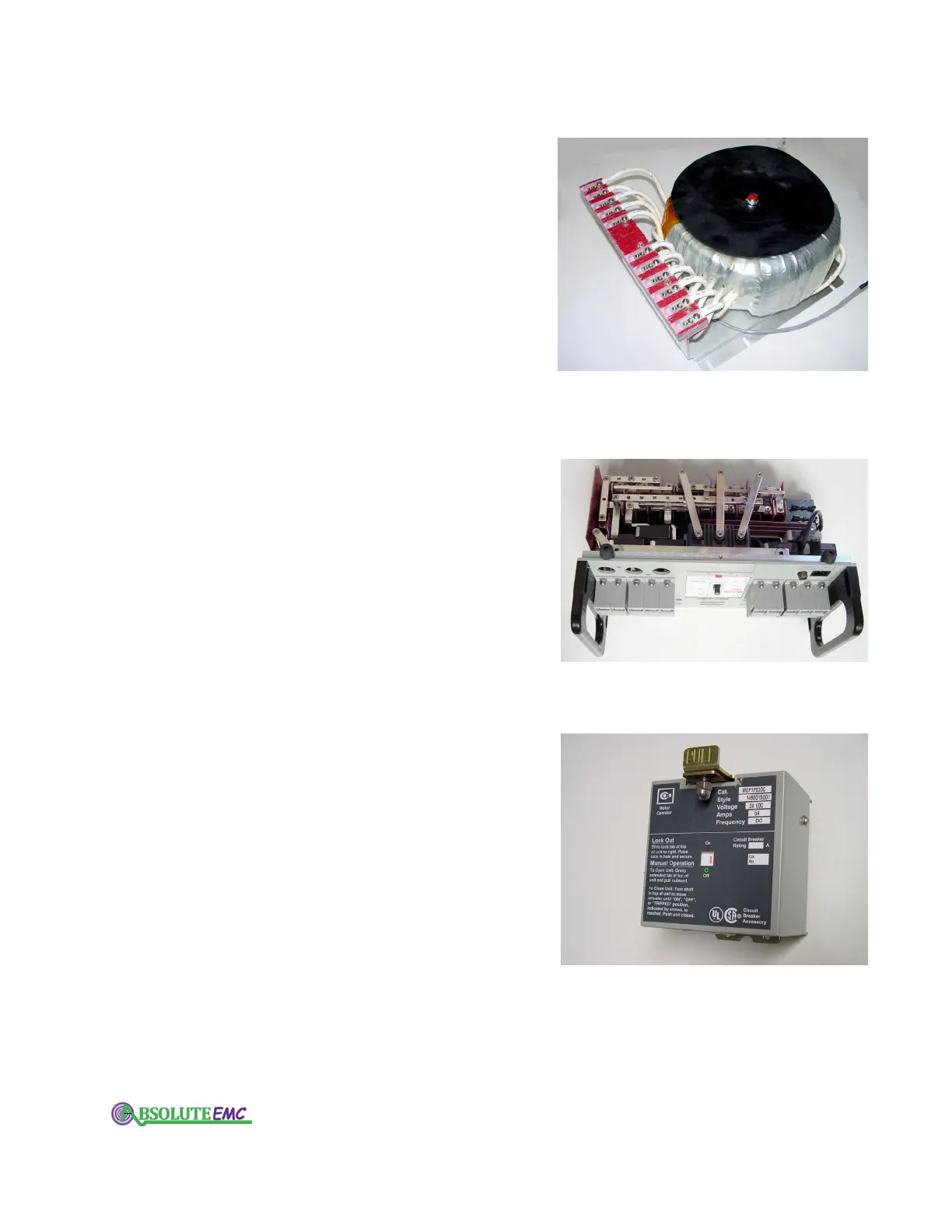

Transformer Assembly
The custom designed multi-tapped autotransformer is used
to select the depth of a sag or swell.
This transformer is mounted
on its own support plate that also has an insulating termination
plate. The terminations from the transformer connect to this
plate and in turn receive a fuse link connection to the Tap
Relay Assembly.
Rear Panel Assembly
This assembly is largely responsible for the complex
distribution of power before, during, and after events. There
are 16 latching relays mounted on the PCB, along with the
current transformers and spring-loaded voltage test points. A
multitude of convoluting bas bars wind their way around this
assembly and connect to the terminal blocks. The circuit
breaker and rear panel are attached to the chassis of this
assembly, creating a module that can be slid in place for
mounting and connections to other assemblies.
The Motor Operator Assembly (optional)
This is a customized circuit breaker motor operator
assembly that can be optionally installed onto the rear panel.
This can be retrofitted at any time as the rear panel comes
standard with mounting locations and a three-pin circular
connector. This assembly allows front panel control of the motor
operator, avoiding the necessity to reach back behind the IPC
every time the circuit breaker requires resetting.
