PSL IPC-480V-200A - High Voltage Input Channels; Low Voltage Input Channels

page 28
Industrial Power Corruptor Manual Rev 1.00

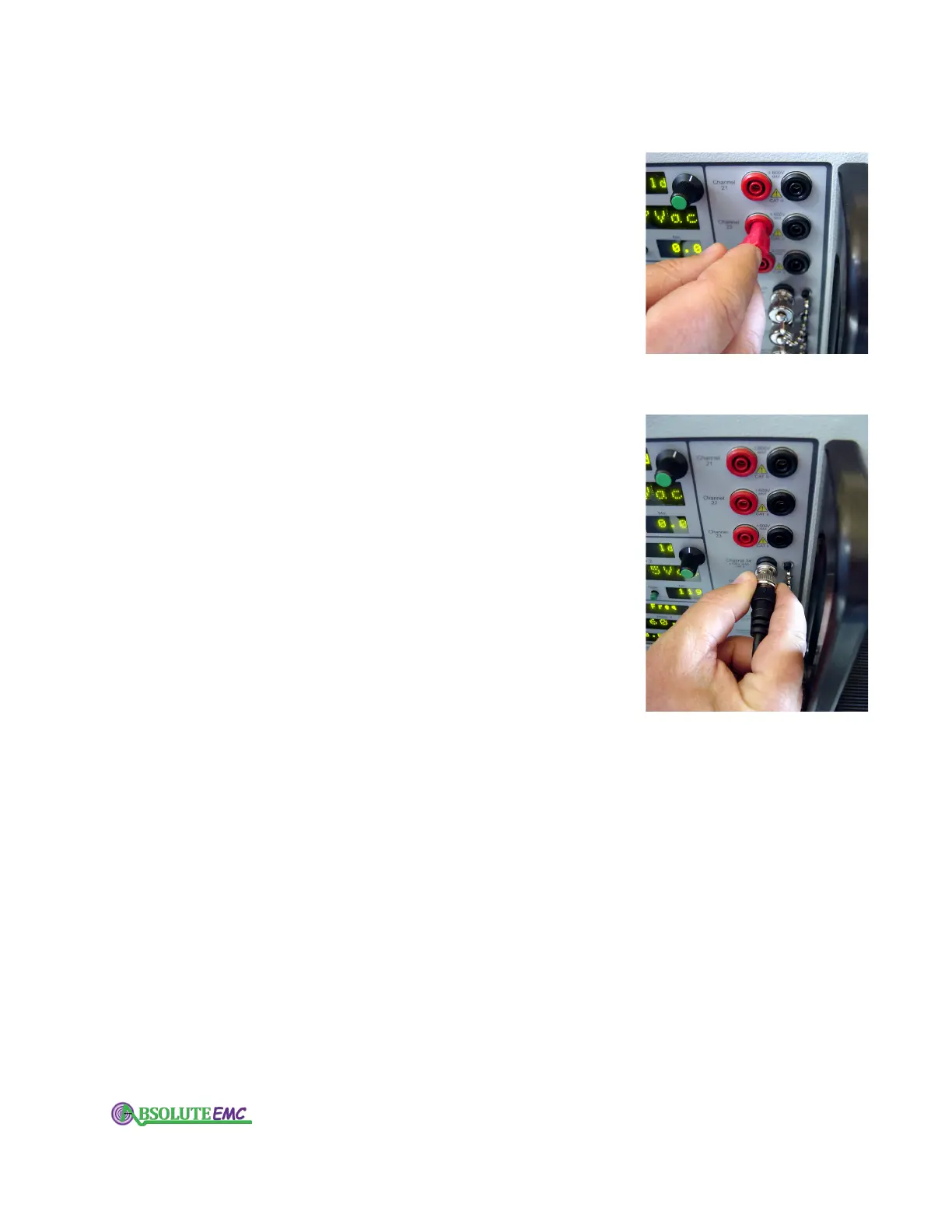

3.2.16 High Voltage Input Channels
The pairs of banana jack connectors on the right hand side
of the front panel, labeled Channel 21, Channel 22, and Channel
23 are ±600V
AC or DC analog inputs. You can use these to
monitor high voltage points on the equipment you are testing.
Do not to exceed the rated voltage on these inputs.
3.2.17 Low Voltage Input Channels
There are 6 BNC connectors on the right hand side of the
front panel.
These are labeled Channel 24 through Channel 29,
and are analog input channels with a ±100V AC or DC maximum
rating.
