page 15
Industrial Power Corruptor Manual Rev 1.00
Warning: Death, serious injury, or fire hazard could result from improper
connection of this instrument. The rear of the IPC is a high voltage, high
current area.
Follow industry standard safety precautions at all times. Do not
make electric power connections unless you are qualified to do so. Do not
operate this instrument until you have received appropriate training and are
familiar with this entire manual.
Follow all local safety codes, practices, and
requirements.
They take precedence over the instructions
here.
Disconnect and lock out power before making or
removing connections to your IPC.
Conductors to the source side terminal blocks of your
IPC should be connected to a power source that is equipped
with a disconnect switch, and with an appropriately sized
current-limiting device (fuse or circuit breaker).
Avoid
lengthy conductors between this power source and your
IPC; install your IPC as close as practical to this power
source.
Always install protective earth conductors to both
source- and load-side protective earth terminal blocks) with
a cross section adequate to carry all available current.
All conductors connected to the IPC must be stranded,
with insulation temperature rating of at least 105°C, a
voltage rating equal to or greater than the voltage supplied,
and of adequate cross-section for the available current.
Make sure that it is impossible for any person to touch
any bare wires or terminal block contacts once the
terminations have been made.
If you are using wire conductors smaller than #2AWG
(34 mm
2
), insert the conductor in a wire adaptor provided
with your IPC, then insert the wire adaptor in the IPC
terminal block. Failure to use a wire adaptor will result in
poor clamping to the conductor and dangerous access to
high voltage wires/surfaces.
As a standard practice, mount wire adaptors in any

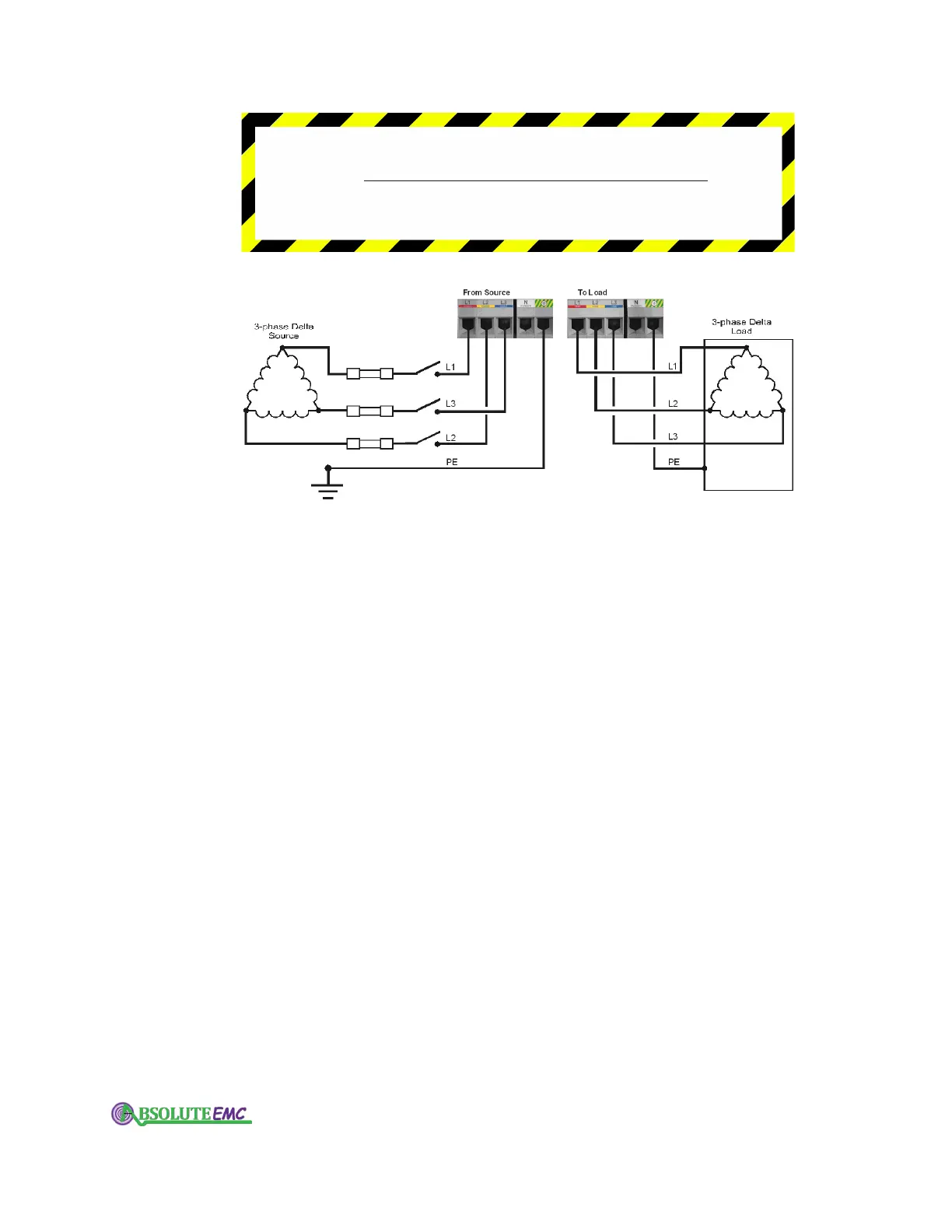

2.2.6.2 Three-phase delta power connections
