which channels to download, and to re-name the channels. It is helpful
to keep the channel names to 5 characters or less, for example "+24V".
These new names will appear on your IPC's front panel meters, the on-
screen meter, and on the ChannelScope waveforms, making it much
easier to keep track of what each channel is used for.
To simplify file naming in a long series of tests, you can use the
"File Name ++" and "File Name -" buttons to increment and decrement
the file names.
Fill in the "Event outcome" section if it is useful. The information
you enter here will be recorded in the file, along with the waveforms.
See "Event Details" in the ChannelScope section.
If you find that you have downloaded the wrong channels, or not
enough data, you can download again - the oscilloscope data in your
IPC is not erased until another event is triggered (or power is turned
off).

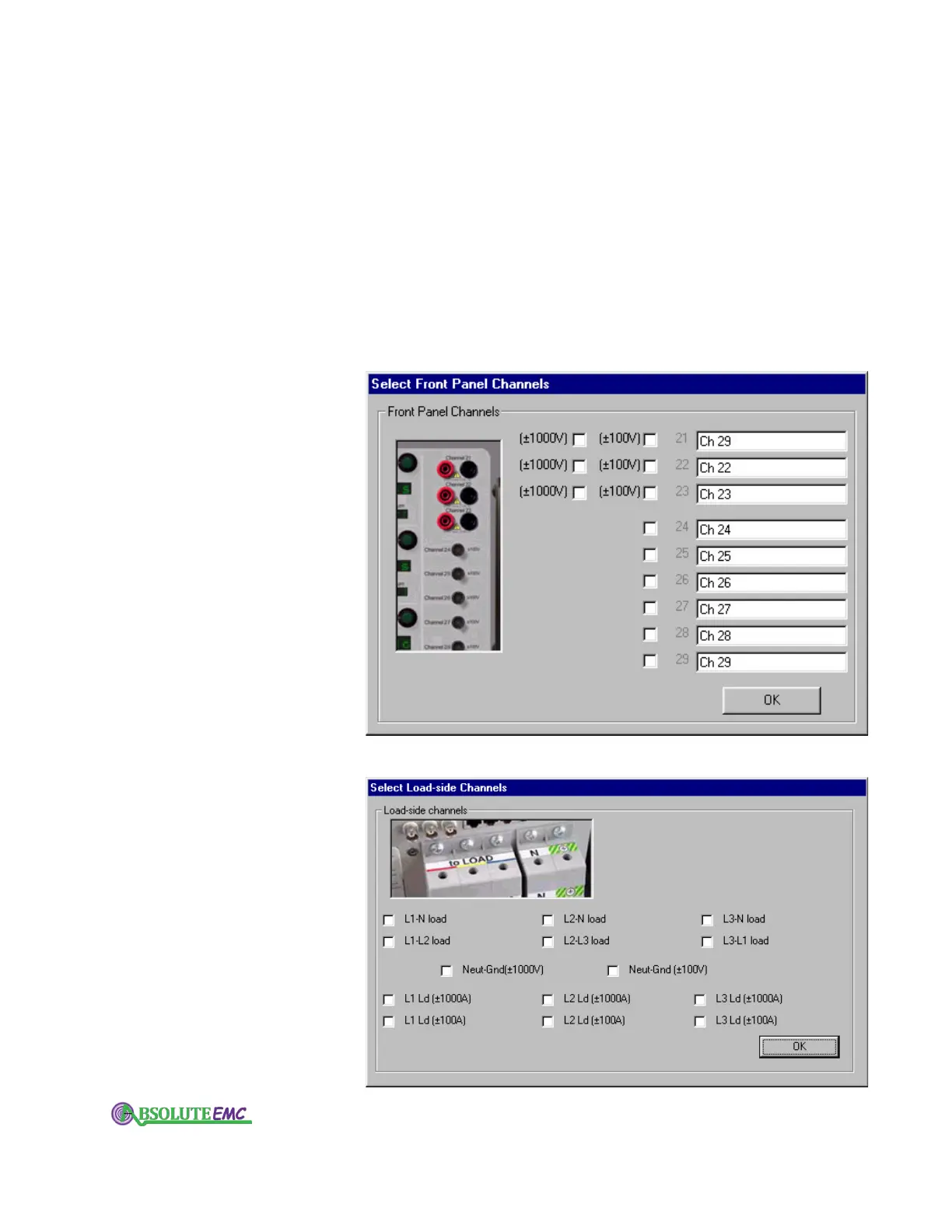

You can re-name the front panel channels - use this screen. It makes sense to limit the
names to 5 characters or shorter.
On the load side, you can choose 100-amp or 1000-amp recordings - both are available,
and if you’re not sure which one you need, check both boxes.
