5. Use a hex wrench to tighten the recessed screws in the two holes shown. Turn
the screws clockwise until they are tight and the nozzle plate does not move.

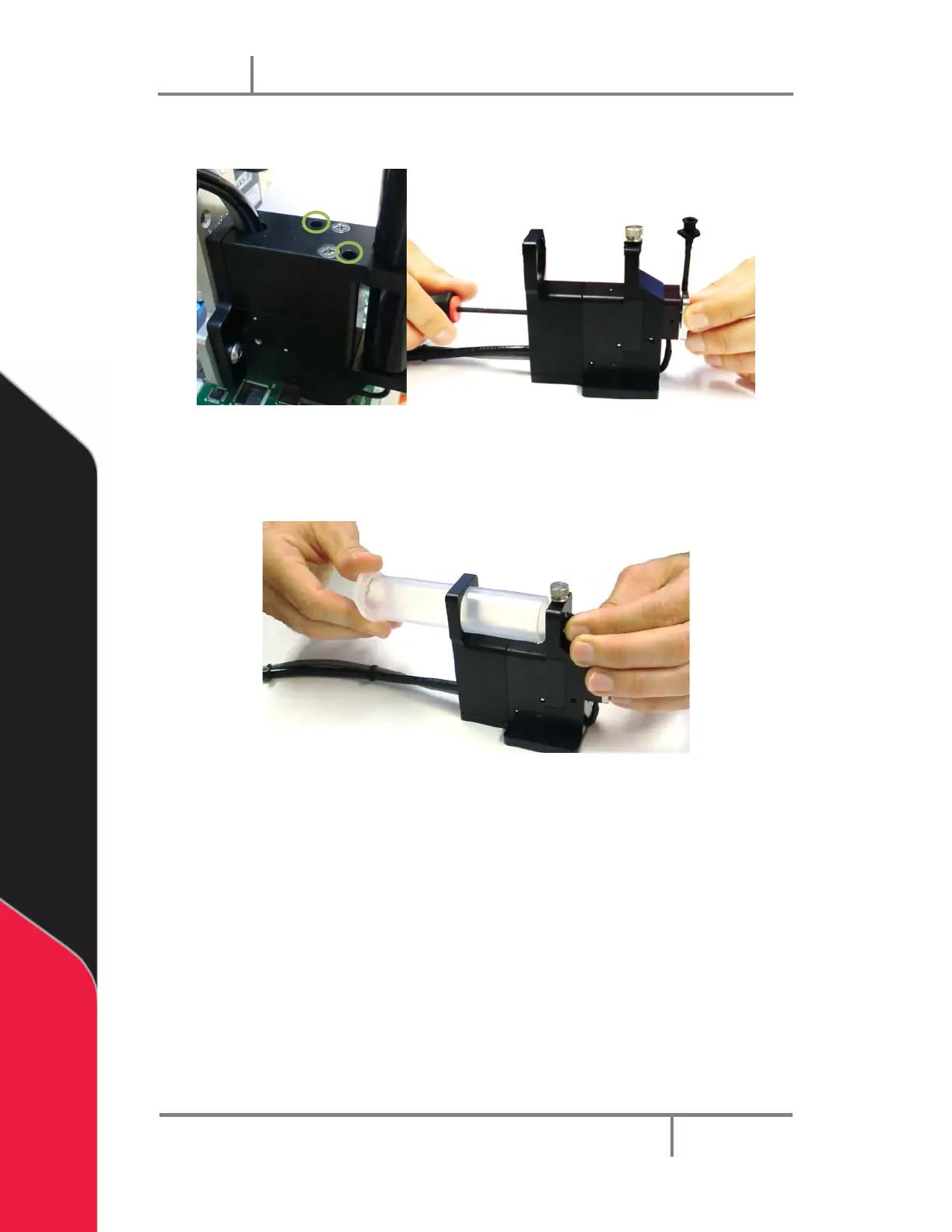

Figure 7: Tighten the Screws to Attach the Nozzle Plate
6. Install the syringe into holder.
7. Push the feed tube into the end of the syringe.
Figure 8: Install the Fluid Syringe
8. Turn the thumb screw clockwise until the fluid syringe is tight in holder.
