5. Loosen and remove the feed tube off of the syringe.
6. Remove the syringe.

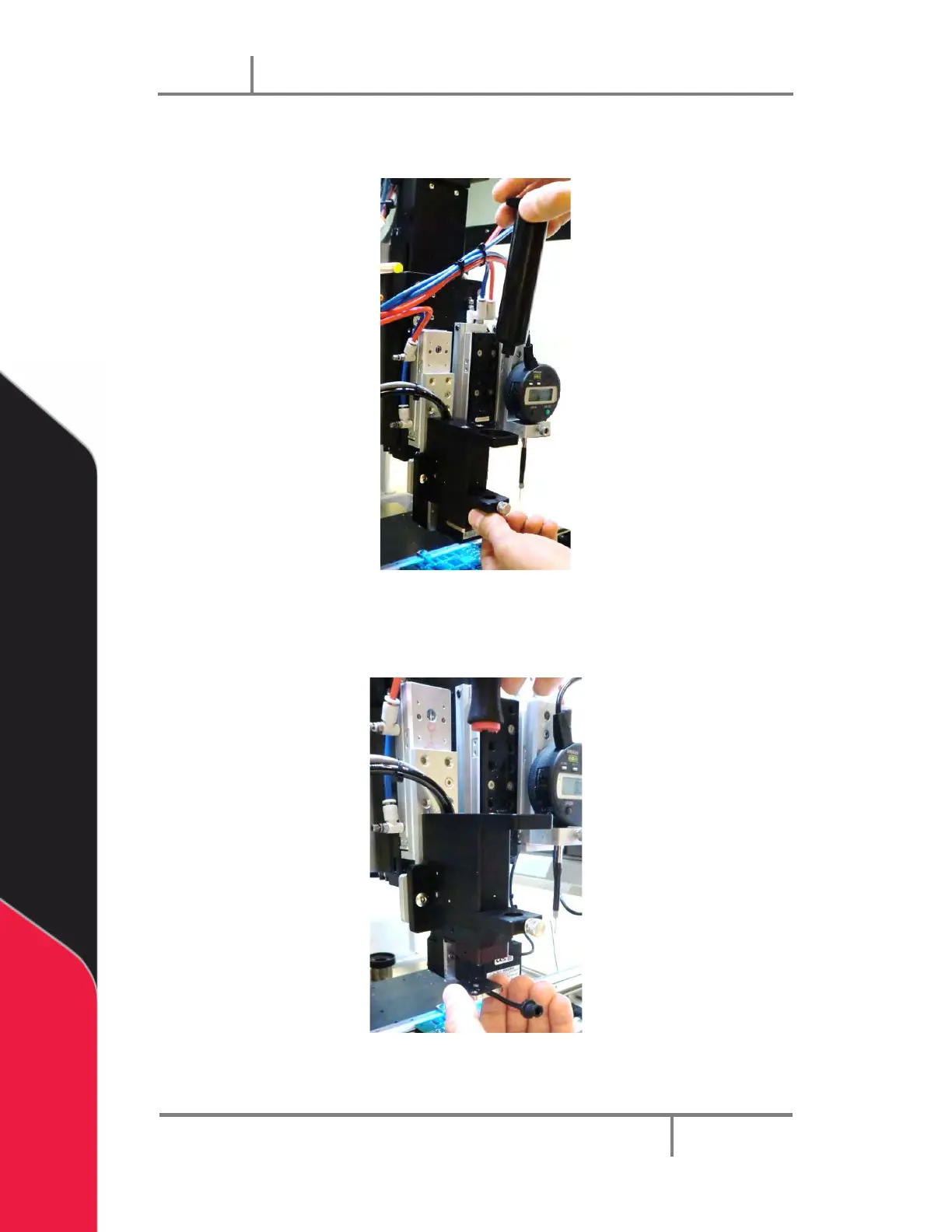

Figure 11: Remove the Syringe
7. Use a 3mm hex wrench to loosen the two recessed screws and remove the
nozzle plate.
Figure 12: Remove the Nozzle Plate
8. Remove the diaphragm.
