PVA JDX - Exploded View; Figure 39: Exploded View; Item Numbers and Descriptions

JDX
PVA
Revision H (2016)
32 of 39
Exploded View 7.

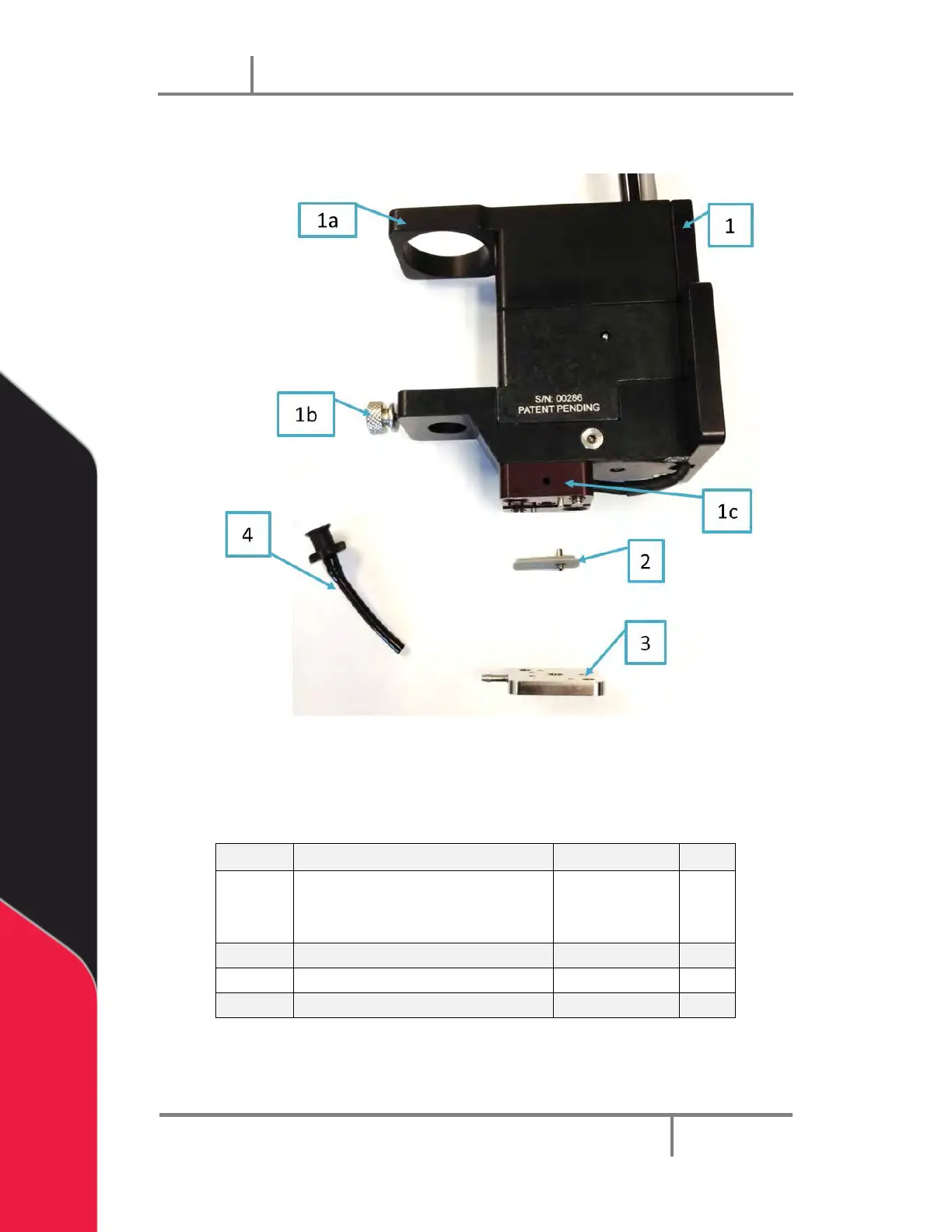

Figure 39: Exploded View
Item Numbers and Descriptions 7.1.1
Item
Description
Part Number
QTY
1.
Jet body, includes syringe holder
(1a), thumb screw (1b), and
heater (1c)
1
2.
Diaphragm
Refer to Table 2
1
3.
Nozzle Plate
Refer to Table 2
1
4.
Feed Tube
Refer to Table 2
1
