PVA JDX - Figure 30: Jetter Maintenance; Jetter Maintenance

JDX
PVA
Revision H (2016)
25 of 39
Jetter Maintenance 5.3
1. Select “Manual” from the cycle stop screen.
2. Select the “Jetter” tab.

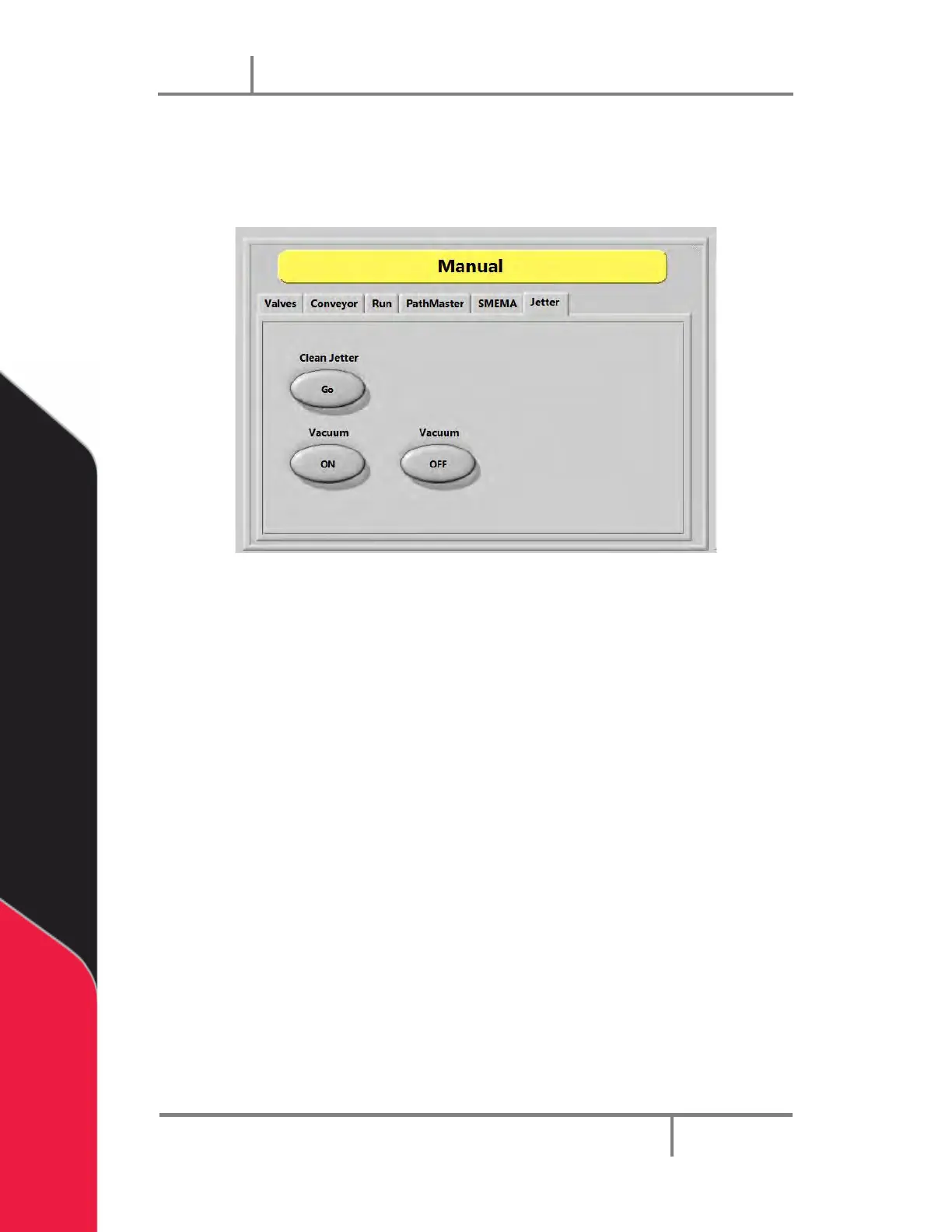

Figure 30: Jetter Maintenance
3. Select the Clean Jetter “Go” button to move the valve to the vacuum cup
4. Select the Vacuum “ON” and “OFF” buttons to turn the vacuum on and off.
