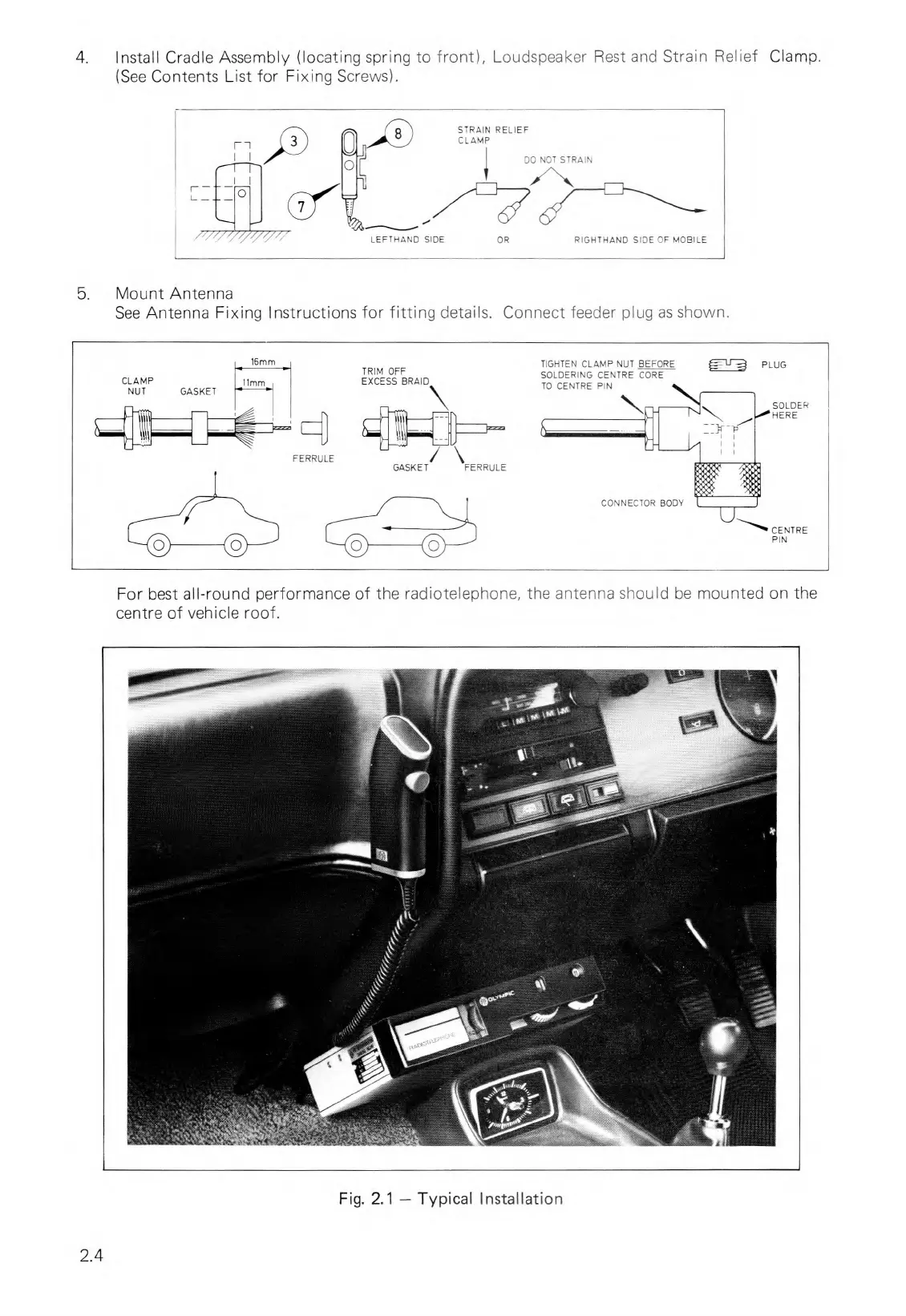

PYE OLYMPIC M201 - Fig. 2.1 Typical Installation

To Next Page

To Previous Page

STRAIN RELIEF

CLAMP

DO NOT STRAIN

LEFTHAND SIDE



RIGHTHAND SIDE OF MOBILE

TRIM OFF

EXCESS BRAID

GASKET



ERRULE

CLAMP

NUT



GASKET

FERRULE

TIGHTEN CLAMP NUT BEFORE

SOLDERING CENTRE CORE

TO CENTRE PIN



PLUG

SOLDER

HERE

CONNECTOR BODY

CENTRE

Install Cradle Assembly (locating spring to front), Loudspeaker Rest and Strain Relief Clamp.

(See Contents List for Fixing Screws).

Mount Antenna

See Antenna Fixing Instructions for fitting details. Connect feeder plug as shown.

For best all-round performance of the radiotelephone, the antenna should be mounted on the

centre of vehicle roof.

Fig. 2.1 — Typical Installation

2.4
