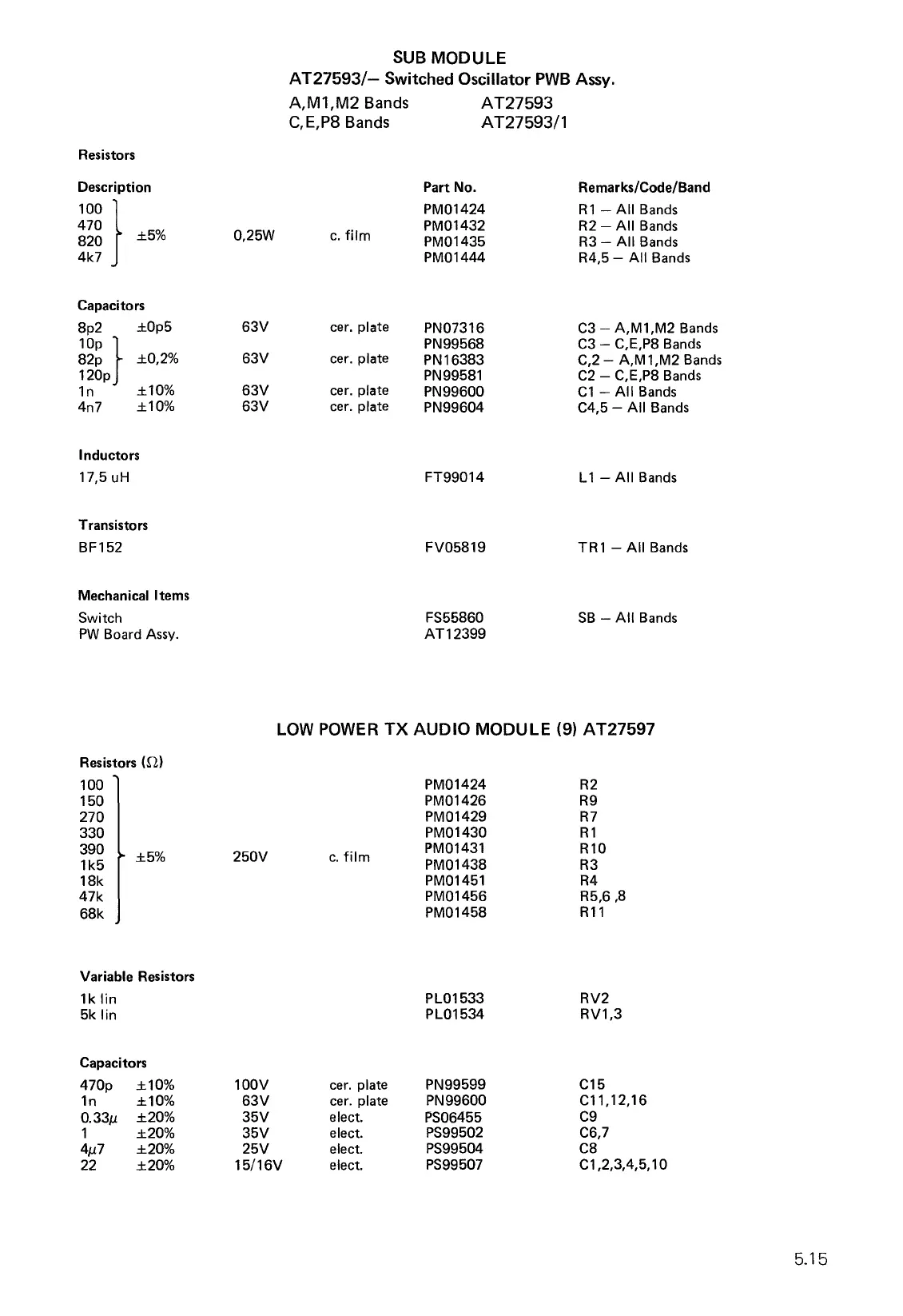

PYE OLYMPIC M201 - Low Power Tx Audio Module

SUB MODULE
AT27593/— Switched Oscillator PWB Assy.
A,M1,M2 Bands

AT27593
C,E,P8 Bands

AT27593/1
Resistors
Description
100
470
820 
±5%
4k7
0,25W
 c. film
Part No.
PM01424
PM01432
PM01435
PM01444
Remarks/Code/Band
R1 — All Bands
R2 — All Bands
R3 — All Bands
R4,5 — All Bands
Capacitors
8p2

±0p5  63V 
cer. plate 
PN07316  C3 — A,M1,M2 Bands
10p 
PN99568

C3 — C,E,P8 Bands
82p 1 ±0,2%
 63V 
cer. plate

PN16383  C,2— A,M1,M2 Bands
120p 
PN99581

C2 — C,E,P8 Bands
1n 
±10%  63V 
cer. plate

PN99600

C1 — All Bands
4n7 
±10%  63V  cer. plate

PN99604
 C4,5 — All Bands
Inductors
17,5 uH

FT99014 
L1 — All Bands
Transistors
B F152

FV05819  TR1 — All Bands
Mechanical Items
Switch  FS55860  SB — All Bands
PW Board Assy. 
AT12399
Resistors
100
150
270
330
390
1k5
(2)
±5%
LOW POWER TX AUDIO MODULE (9) AT27597
PM01424  R2
PM01426  R9
PM01429 
R7
PM01430  R1
PM01431 
R10
250V  c. film
PM01438  R3
18k
PM01451 R4
47k
PM01456 R5,6 ,8
68k
PM01458
R11
Variable Resistors
1k lin
PL01533 RV2
5k lin
PL01534 RV1,3
Capacitors
470p  ±10%
100V cer. plate PN99599
C15
1n  ±10% 63V cer. plate
PN99600 C11,12,16
0.33p 
±20% 35V elect.
PS06455
C9
1  ±20% 35V elect.
PS99502 C6,7
4p7 
±20%
25V elect.
PS99504 C8
22  ±20% 15/16V
elect.
PS99507 C1,2,3,4,5,10
5i 5
