PYE OLYMPIC M201 - Motherboard

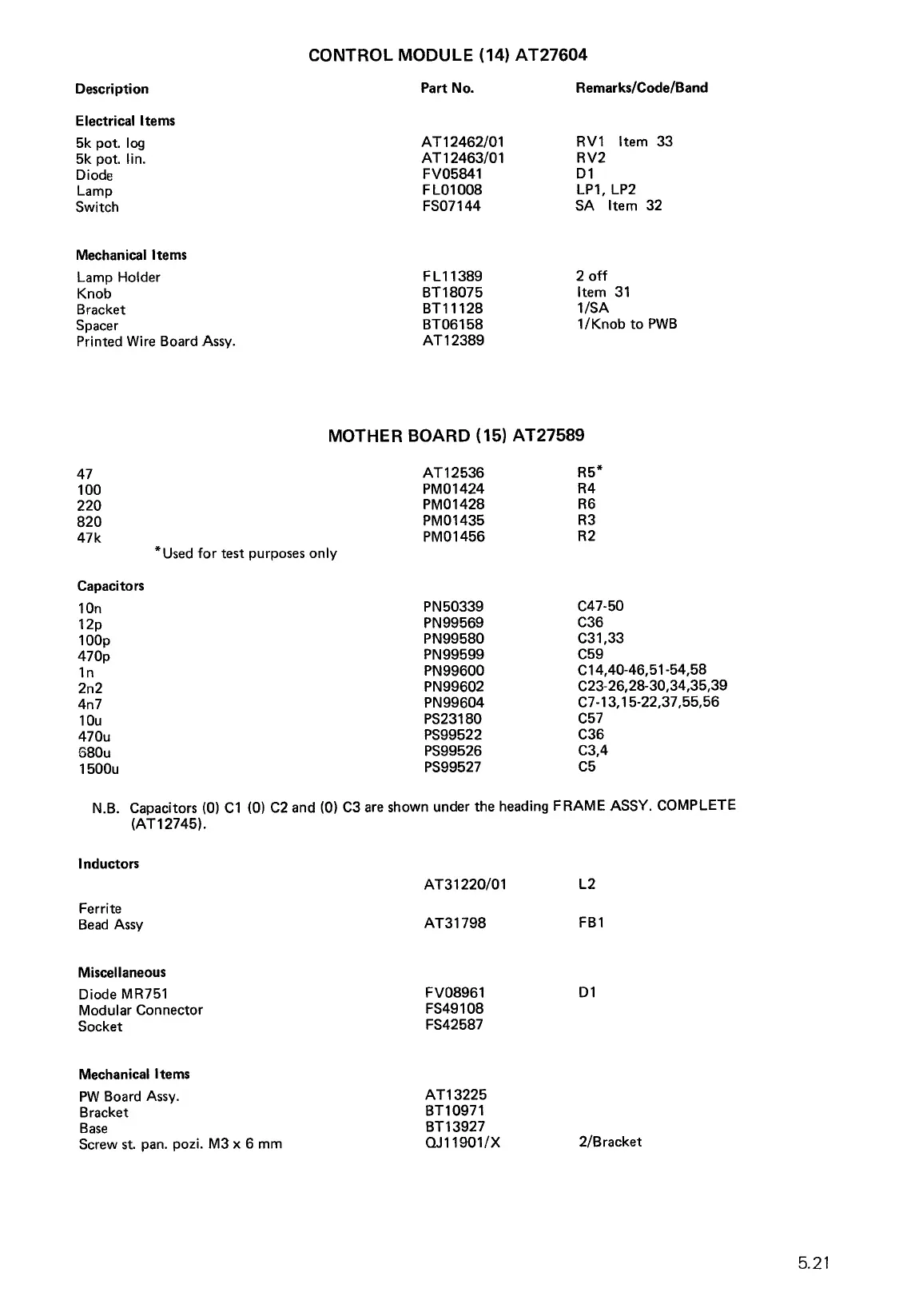

CONTROL MODULE (14) AT27604
Description

Part No. 
Remarks/Code/Band
Electrical Items
5k pot. log 
AT12462/01

RV1 Item 33
5k pot. lin. 
AT12463/01

RV2
Diode

FV05841 
D1
Lamp 
F L01008 
LP1, LP2
Switch 
FS07144 
SA Item 32
Mechanical Items
Lamp Holder

FL11389 
2 off
Knob 
BT18075 
Item 31
Bracket 
BT11128 
1/SA
Spacer 
BT06158 
1/Knob to PWB
Printed Wire Board Assy. 
AT12389
MOTHER BOARD (15) AT27589
47
AT12536
R5*
100
PM01424
R4
220
PM01428
R6
820
PM01435
R3
47k
PM01456
R2
*Used for test purposes only
Capacitors
10n
PN50339
C47-50
12p
PN99569
C36
100p
PN99580
C31,33
470p
PN99599
C59
1n
PN99600
C14,40-46,51-54,58
2n2
PN99602
C23-26,28-30,34,35,39
4n7
PN99604
C7-13,15-22,37,55,56
10u
PS23180
C57
470u
PS99522
C36
680u
PS99526
C3,4
1500u
PS99527
C5
N.B. Capacitors (0) C1 (0) C2 and (0) C3 are shown under the heading FRAME ASSY. COMPLETE
(AT12745).
Inductors
AT31220/01 
L2
Ferrite
Bead Assy

AT31798 
FB1
Miscellaneous
Diode MR751

FV08961

D1
Modular Connector 
FS49108
Socket 
FS42587
Mechanical Items
PW
Board Assy.

AT13225
Bracket 
BT10971
Base 
BT13927
Screw st. pan. pozi. M3 x 6 mm

QJ11901/X
2/Bracket
5.21
