PYE OLYMPIC M201 - Noise Squelch Module

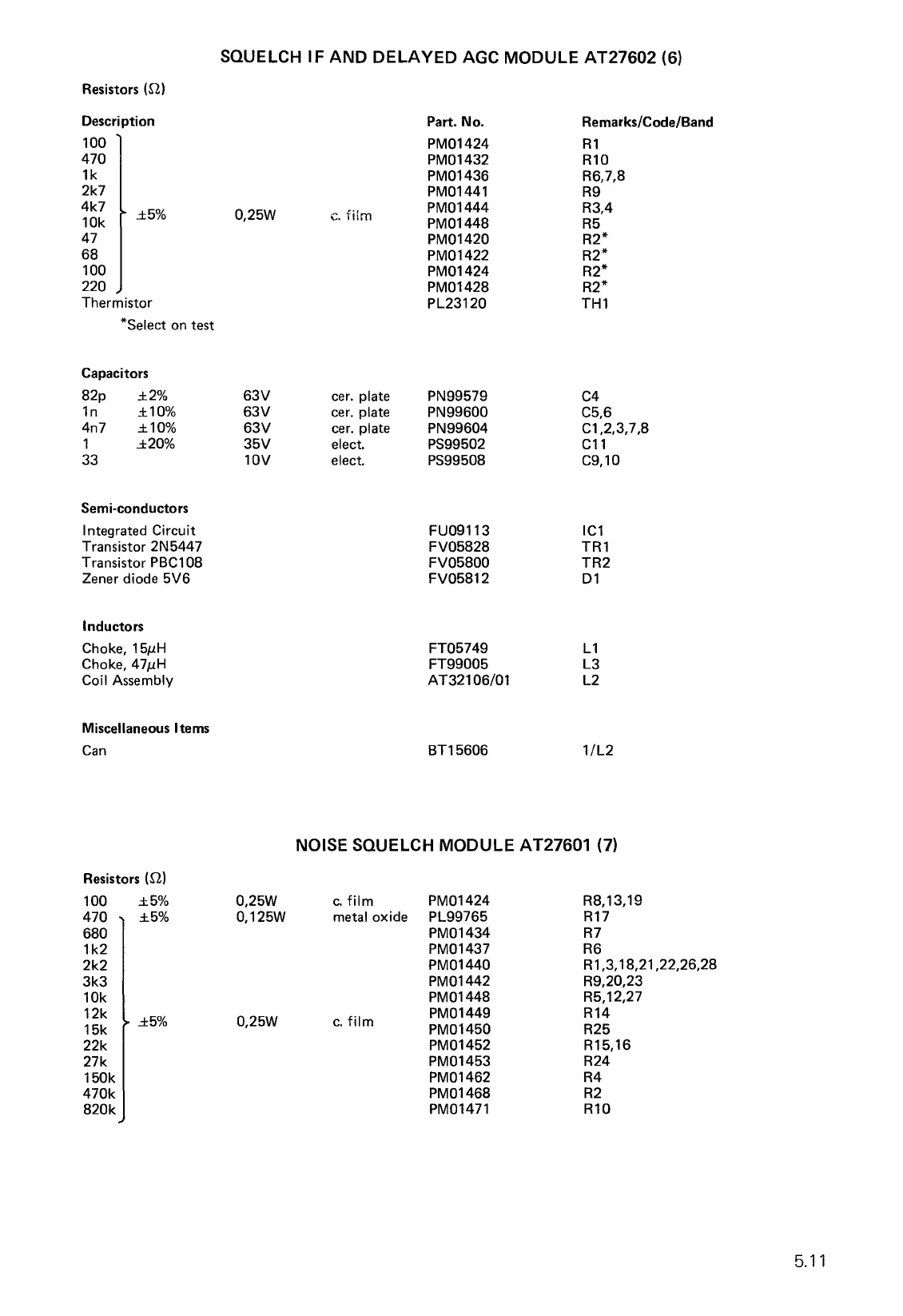

SQUELCH IF AND DELAYED AGC MODULE AT27602 (6)
Resistors (2)
Description

Part. No. 
Remarks/Code/Band
100 
PM01424 
R1
470 
PM01432  R10
1k 
PM01436
 R6,7,8
2k7 
PM01441

R9
4k7
..± 
PM01444

R3,4
5% 
0,25W

c.
film
10k 
PM01448

R5
47 
PM01420

R2*
68 
PM01422 
R2*
100 
PM01424 
R2*
220 
PM01428
 R2*
Thermistor 
PL23120

TH1
*Select on test
Capacitors
82p  ±2%  63V 
cer. plate  PN99579 
C4
'I n 
±10%  63V 
cer. plate  PN99600 
C5,6
4n7  ±10% 
63V 
cer. plate

PN99604  C1,2,3,7,8
1 
±20%
 35V 
elect.  PS99502

C11
33 
10V 
elect.  PS99508

C9,10
Semi-conductors
Integrated Circuit 
FU09113

IC1
Transistor 2N5447

FV05828 
TR1
Transistor PBC108  FV05800  TR2
Zener diode 5V6 
FV05812 
D1
Inductors
Choke, 15pH  FT05749  L1
Choke, 47pH

FT99005 
L3
Coil Assembly  AT32106/01  L2
Miscellaneous Items
Can  BT15606  1/L2
NOISE SQUELCH MODULE AT27601 (7)
Resistors (2)
100 
±5%  0,25W  c. film 
PM01424  R8,13,19
470 
±5%  0,125W  metal oxide PL99765 
R17
680 
PM01434  R7
1k2 
PM01437 
R6
2k2 
PM01440 
R1,3,18,21,22,26,28
3k3 
PM01442 
R9,20,23
10k 
PM01448

R5,12,27
12k 
5 
PM01449

R14
`)/o  0,25W  c. film
15k 
PM01450 
R25
22k 
PM01452  R15,16
27k 
PM01453 
R24
150k 
PM01462  R4
470k 
PM01468  R2
820k 
PM01471  R10
5.1 1
