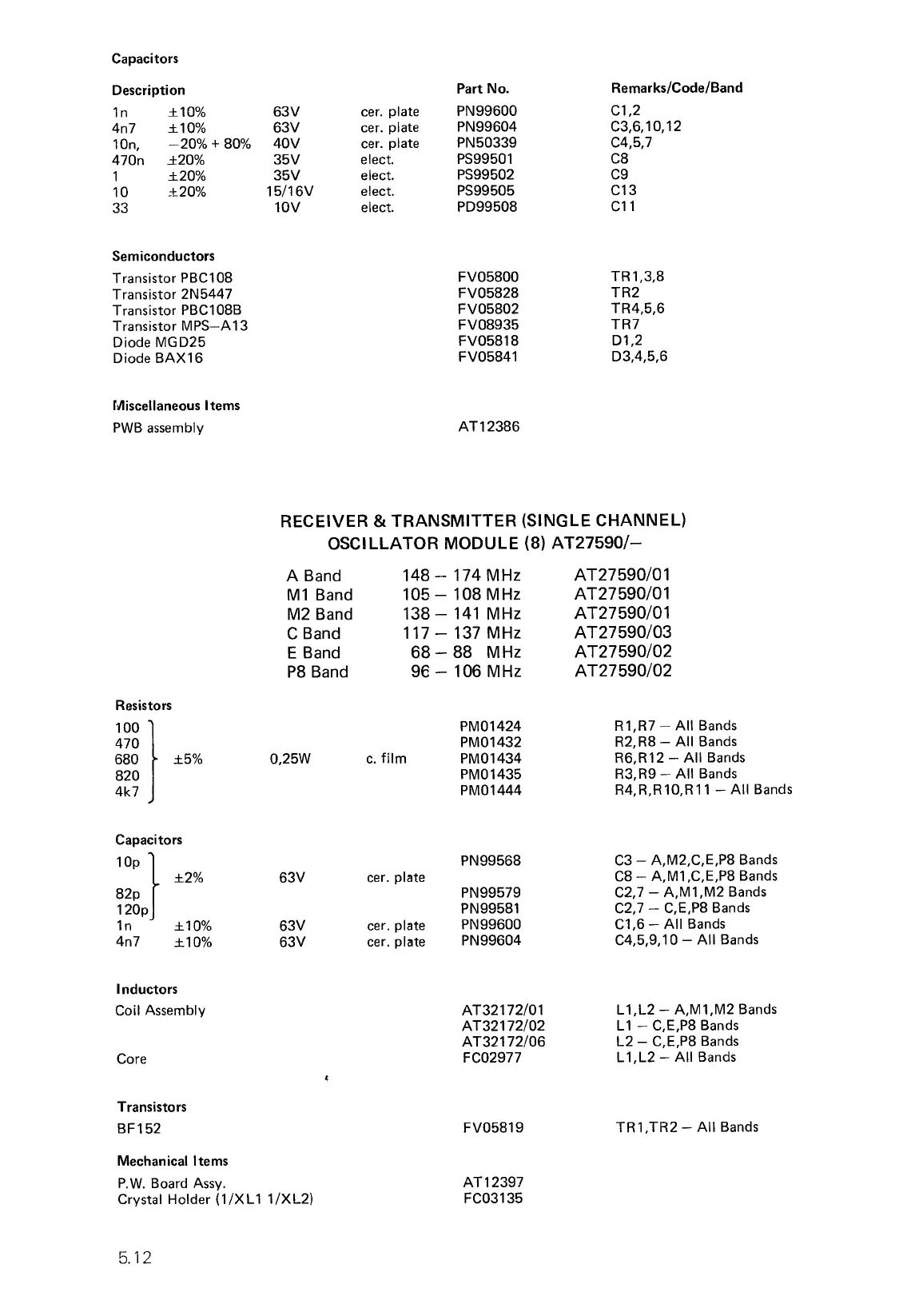

PYE OLYMPIC M201 - Oscillator Module

Capacitors
Description

Part No. 
Remarks/Code/Band
1n 
±10% 
63V 
cer. plate 
PN99600 
C1,2
4n7  ±10% 
63V 
cer. plate

PN99604  C3,6,10,12
10n, 
—20% + 80% 40V

cer. plate 
PN50339 
C4,5,7
470n ±20%

35V 
elect. 
PS99501 
C8
1 
±20% 
35V  elect. 
PS99502  C9
10 
±20% 
15/16V
 elect. 
PS99505 
C13
33 
10V  elect. 
PD99508 
C11
Semiconductors
Transistor PBC108

FV05800 
TR 1,3,8
Transistor 2N5447

FV05828

TR2
Transistor PBC108B 
FV05802 
TR4,5,6
Transistor MPS—A13

FV08935 
TR7
Diode MGD25

FV05818 
D1,2
Diode BAX16 
FV05841 
D3,4,5,6
Miscellaneous Items
PWB assembly

AT12386
RECEIVER & TRANSMITTER (SINGLE CHANNEL)
OSCILLATOR MODULE (8) AT27590/—
A Band 
148 — 174 MHz 
AT27590/01
M1 Band 
105— 108 MHz

AT27590/01
M2 Band 
138 — 141 MHz

AT27590/01
C Band 
117 — 137 MHz 
AT27590/03
E Band 
68 — 88 MHz 
AT27590/02
P8 Band

96 — 106 MHz 
AT27590/02
Resistors
PM01424
PM01432
±5%  0,25W

c. film 
PM01434
PM01435
PM01444
R1,R7 — All Bands
R2,R8 — All Bands
R6,R12 — All Bands
R3,R9 — All Bands
R4,R,R10,R11 — All Bands
100
470
680
820
4k7
Capacitors
10p 1 
PN99568 
C3 — A,M2,C,E,P8 Bands
±2%  63V 
cer. plate 
C8 — A,M1,C,E,P8 Bands
82p 
PN99579

C2,7 — A,M1,M2 Bands
120p 
PN99581 
C2,7 — C,E,P8 Bands
1n

±10% 
63V  cer. plate

PN99600

C1,6 — All Bands
4n7

±10%

63V 
cer. plate 
PN99604

C4,5,9,10 — All Bands
Inductors
Coil Assembly
Core
AT32172/01

L1,L2 — A,M1,M2 Bands
AT32172/02 
L1 — C,E,P8 Bands
AT32172/06 
L2 — C,E,P8 Bands
FCO2977 
L1,L2 — All Bands
Transistors
BF152

FV05819
Mechanical Items
P.W. Board Assy.

AT12397
Crystal Holder (1/XL1 1/XL2)

FC03135
TR1,TR2 — All Bands
5.12
