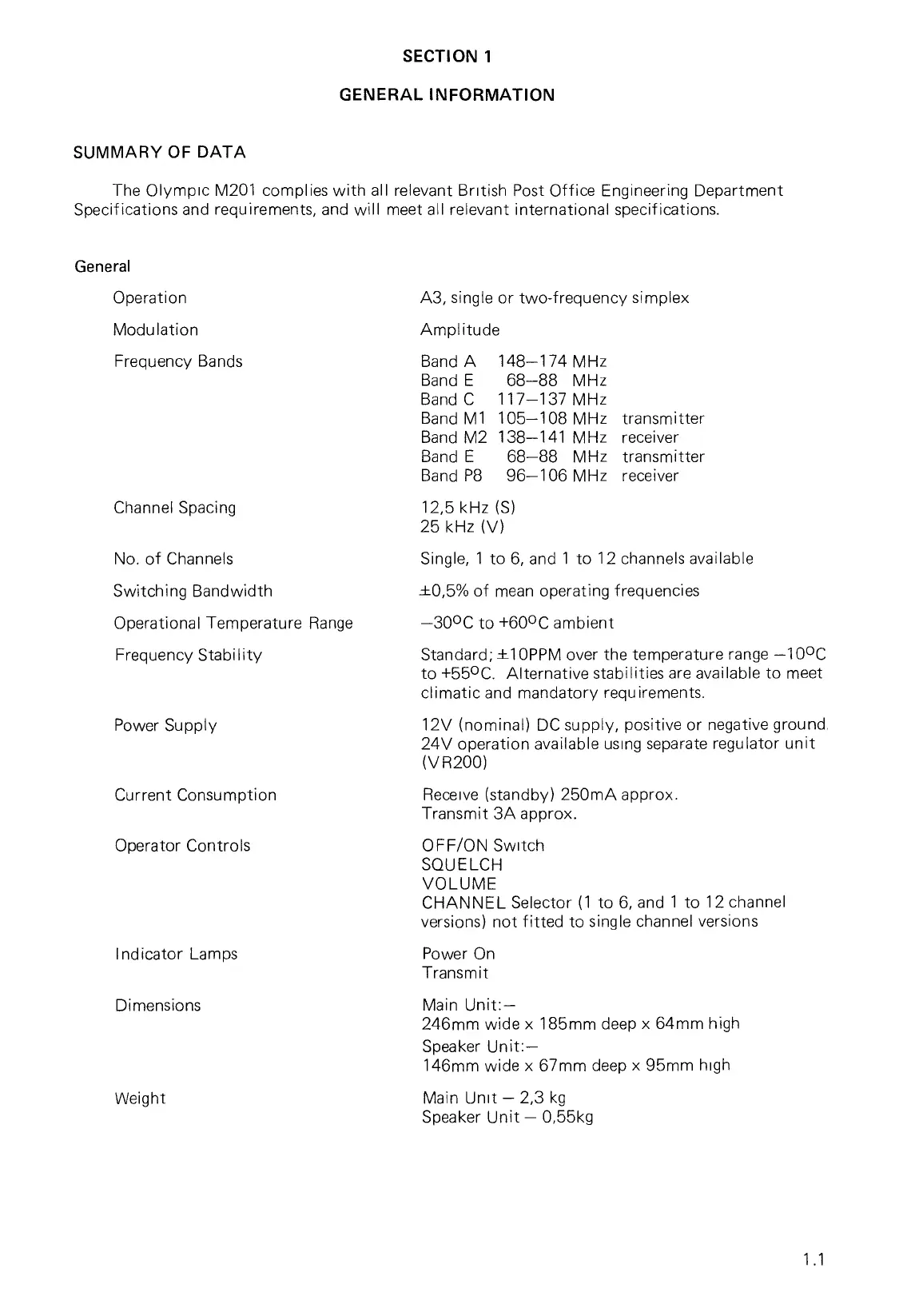

SECTION 1
GENERAL INFORMATION
SUMMARY OF DATA
The Olympic M201 complies with all relevant British Post Office Engineering Department
Specifications and requirements, and will meet all relevant international specifications.
General
Operation
Modulation
Frequency Bands
Power Supply
Weight
A3, single or two-frequency simplex
Amplitude
Band A 148-174 MHz
Band E
68-88 MHz
Band C 117-137 MHz
Band M1 105-108 MHz transmitter
Band M2 138-141 MHz receiver
Band E
68-88 MHz transmitter
Band P8 96-106 MHz receiver
12,5 kHz (S)
25 kHz (V)
Single, 1 to 6, and 1 to 12 channels available
±0,5% of mean operating frequencies
—30°C to +60°C ambient
Standard; ±1OPPM over the temperature range —10°C
to +55°C. Alternative stabilities are available to meet
climatic and mandatory requirements.
12V (nominal) DC supply, positive or negative ground
24V operation available using separate regulator unit
(VR200)
Receive (standby) 250mA approx.
Transmit 3A approx.
OFF/ON Switch
SQUELCH
VOLUME
CHANNEL Selector (1 to 6, and 1 to 12 channel
versions) not fitted to single channel versions
Power On
Transmit
Main Unit:-
246mm wide x 185mm deep x 64mm high
Speaker Unit:-
146mm wide x 67mm deep x 95mm high
Main Unit — 2,3 kg
Speaker Unit — 0,55kg
Channel Spacing
No. of Channels
Switching Bandwidth
Operational Temperature Range
Frequency Stability
Current Consumption
Operator Controls
Indicator Lamps
Dimensions
1.1
