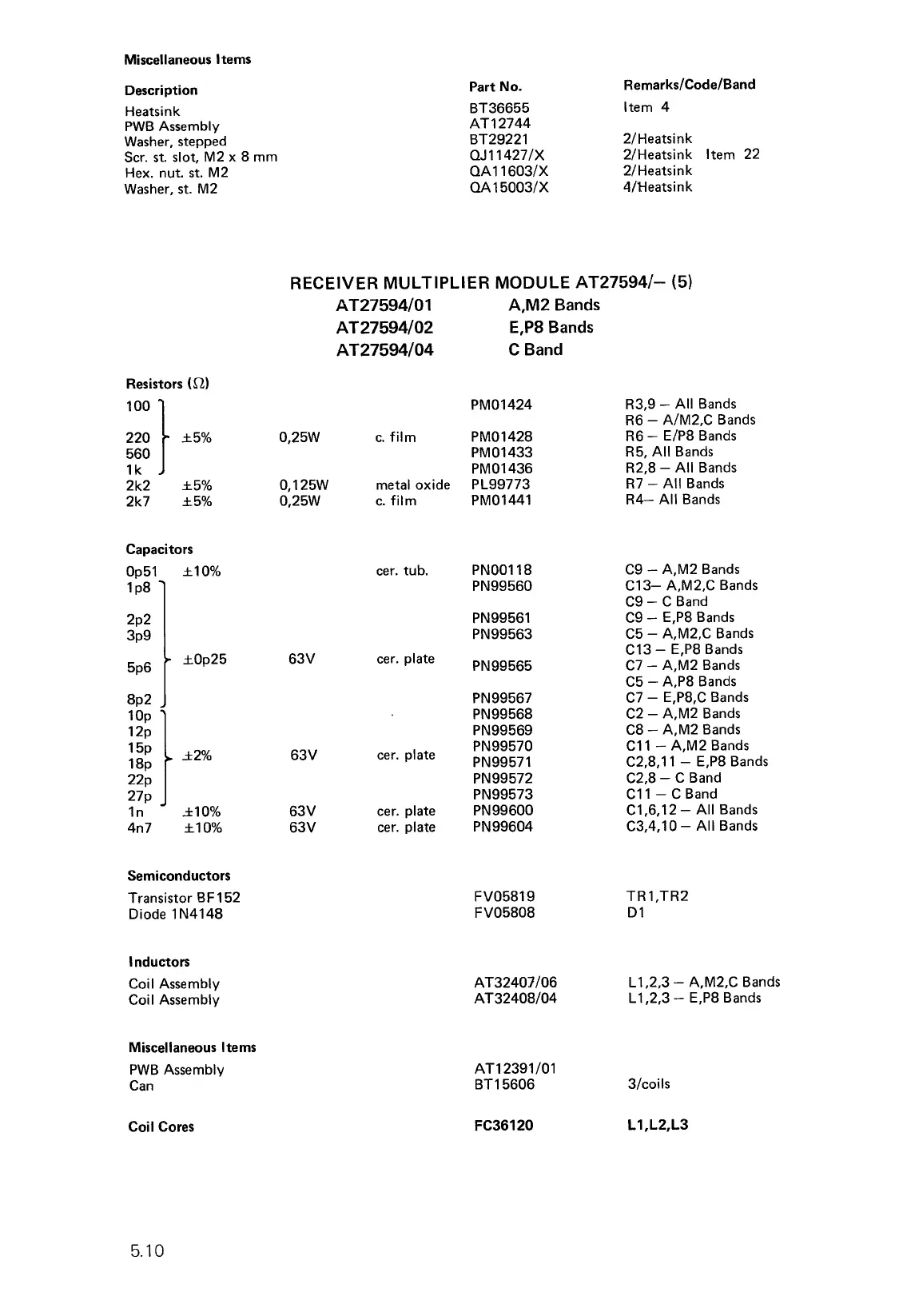

PYE OLYMPIC M201 - Page 75

Miscellaneous Items
Description 
Part No. 
Remarks/Code/Band
Heatsink

BT36655 
Item 4
PWB Assembly

AT12744
Washer, stepped

BT29221 
2/Heatsink
Scr. st. slot, M2 x 8 mm

QJ11427/X 
2/Heatsink Item 22
Hex. nut. st. M2

QA11603/X 
2/Heatsink
Washer, st. M2

QA15003/X

4/Heatsink
RECEIVER MULTIPLIER MODULE AT27594/— (5)
AT27594/01
 A,M2 Bands
AT27594/02

E,P8 Bands
AT27594/04

C Band
Resistors
(S2)
100 1 
PM01424 
R3,9 — All Bands
R6 — A/M2,C Bands
220  .±5%

0,25W 
c. film  PM01428 
R6 — E/P8 Bands
560 
PM01433 
R5, All Bands
1k 
PM01436

R2,8 — All Bands
2k2  ±5% 
0,125W 
metal oxide PL99773

R7 — All Bands
2k7  ±.5%

0,25W 
c. film 
PM01441 
R4— All Bands
Capacitors
Op51 
±10% 
cer. tub. 
PN00118 
C9 — A,M2 Bands
1p8 ' 
PN99560 
C13— A,M2,C Bands
C9 — C Band
2p2 
PN99561 
C9 — E,P8 Bands
3p9 
PN99563 
C5 — A,M2,C Bands
±.0p25 
63V  cer. plate

C13 — E,P8 Bands
5p6 I . 
PN99565 
C7 — A,M2 Bands
C5 — A,P8 Bands
8p2

PN99567 
C7 — E,P8,C Bands
10p 
PN99568 
C2 — A,M2 Bands
12p 
PN99569

C8 — A,M2 Bands
15p 
±2%  63V 
cer. plate 
PN99570 
C11 — A,M2 Bands
18p 
PN99571 
C2,8,11 — E,P8 Bands
22p 
PN99572 
C2,8 — C Band
27p 
PN99573 
C11 — C Band
1n  ±10% 
63V 
cer. plate 
PN99600

C1,6,12— All Bands
4n7  ±10%
 63V 
cer. plate
 PN99604

C3,4,10 — All Bands
Semiconductors
Transistor BF152

FV05819 
TR1,TR2
Diode 1N4148

FV05808
 D1
Inductors
Coil Assembly 
AT32407/06 
L1,2,3 — A,M2,C Bands
Coil Assembly 
AT32408/04
 L1,2,3 — E,P8 Bands
Miscellaneous Items
PWB Assembly

AT12391/01
Can 
BT15606 
3/coils
Coil Cores 
FC36120 
L1,L2,L3
5.10
