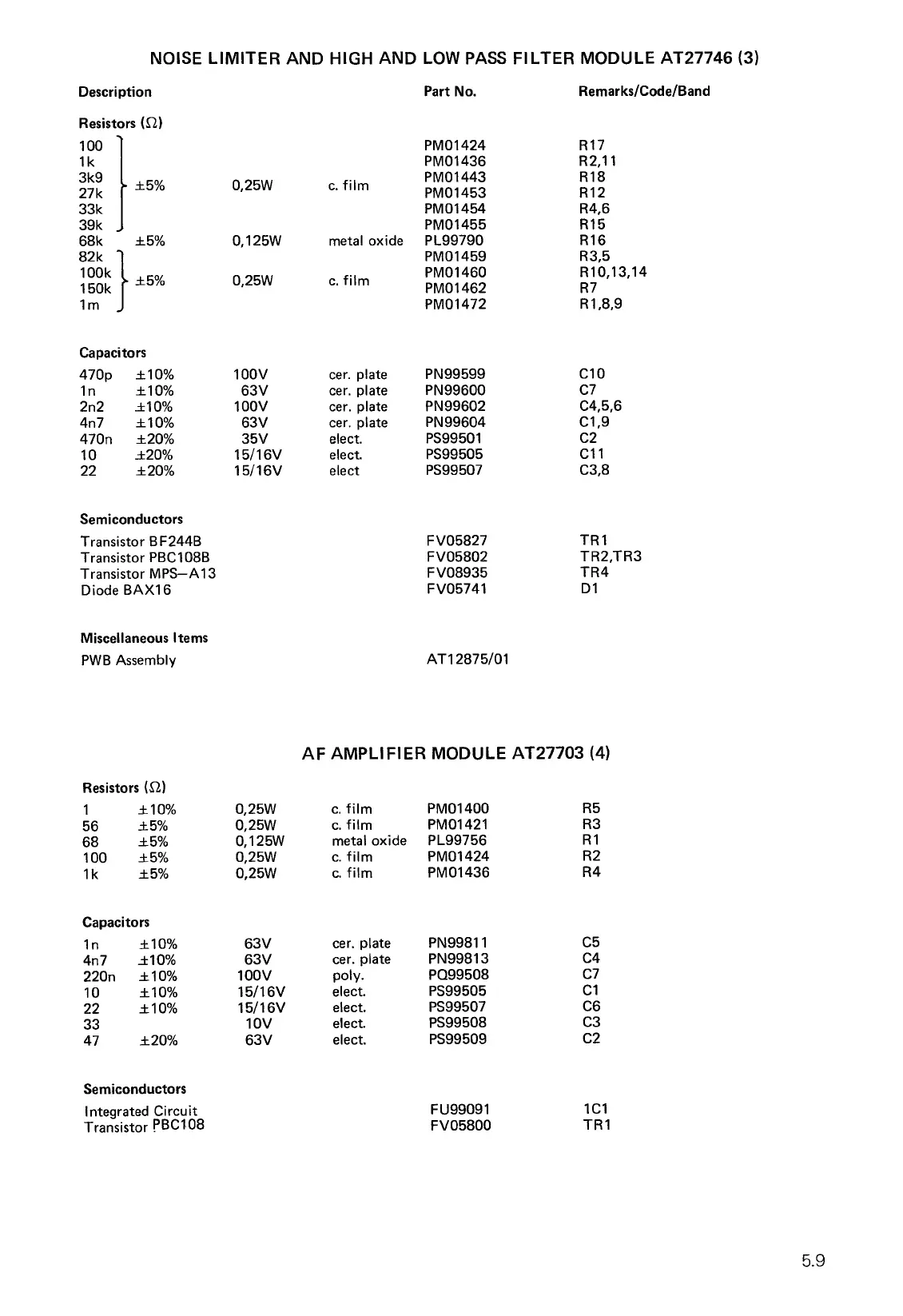

PYE OLYMPIC M201 - Page 74

NOISE LIMITER AND HIGH AND LOW PASS FILTER MODULE AT27746 (3)
Description
Part No.
Remarks/Code/Band
Resistors (12)
100  -
PM01424
R17
1k
PM01436
R2,11
3k9
27k
±5% 0,25W c. film
PM01443
PM01453
R18
R12
33k
PM01454 R4,6
39k
PM01455 R15
68k  ±5% 0,125W
metal oxide PL99790
R16
82k
PM01459
R3,5
100k
150k
±5% 1 0,25W c. filnn
PM01460
PM01462
R10,13,14
R7
1m
PM01472 R1,8,9
Capacitors
470p 
±10% 100V cer. plate
PN99599
C10
1n  ±10% 63V
cer. plate PN99600
C7
2n2  .±10%
100V cer. plate PN99602
C4,5,6
4n7  ±10% 63V
cer. plate PN99604
C1,9
470n  ±20%
35V elect.
PS99501
C2
10 
±20% 15/16V elect.
PS99505
C11
22  ±20% 15/16V
elect
PS99507 C3,8
Semiconductors
Transistor BF244B
FV05827
TR1
Transistor PBC108B
FV05802
TR2,TR3
Transistor MPS—A13
FV08935
TR4
Diode BAX16
FV05741
D1
Miscellaneous Items
PWB Assembly
AT12875/01
Resistors (2)
AF AMPLIFIER MODULE AT27703 (4)
1  ±10%
0,25W
c. film
PM01400
R5
56 
±5%
0,25W
c. film PM 01421
R3
68

±5%
0,125W
metal oxide
PL99756
R1
100
 ±5%
0,25W
c. film
PM01424
R2
1k 
±5%
0,25W
c. film
PM01436
R4
Capacitors
1n 
±10%
63V
cer. plate
PN99811
C5
4n7 
±10%
63V
cer. plate PN99813
C4
220n  ±10%
100V
poly.
PQ99508
C7
10 
±10%
15/16V
elect.
PS99505
C1
22 
±10%
15/16V
elect.
PS99507
C6
33
10V
elect.
PS99508
C3
47  ±20%
63V
elect.
PS99509
C2
Semiconductors
Integrated Circuit
FU99091
1C1
Transistor PBC108
FV05800
TR1
