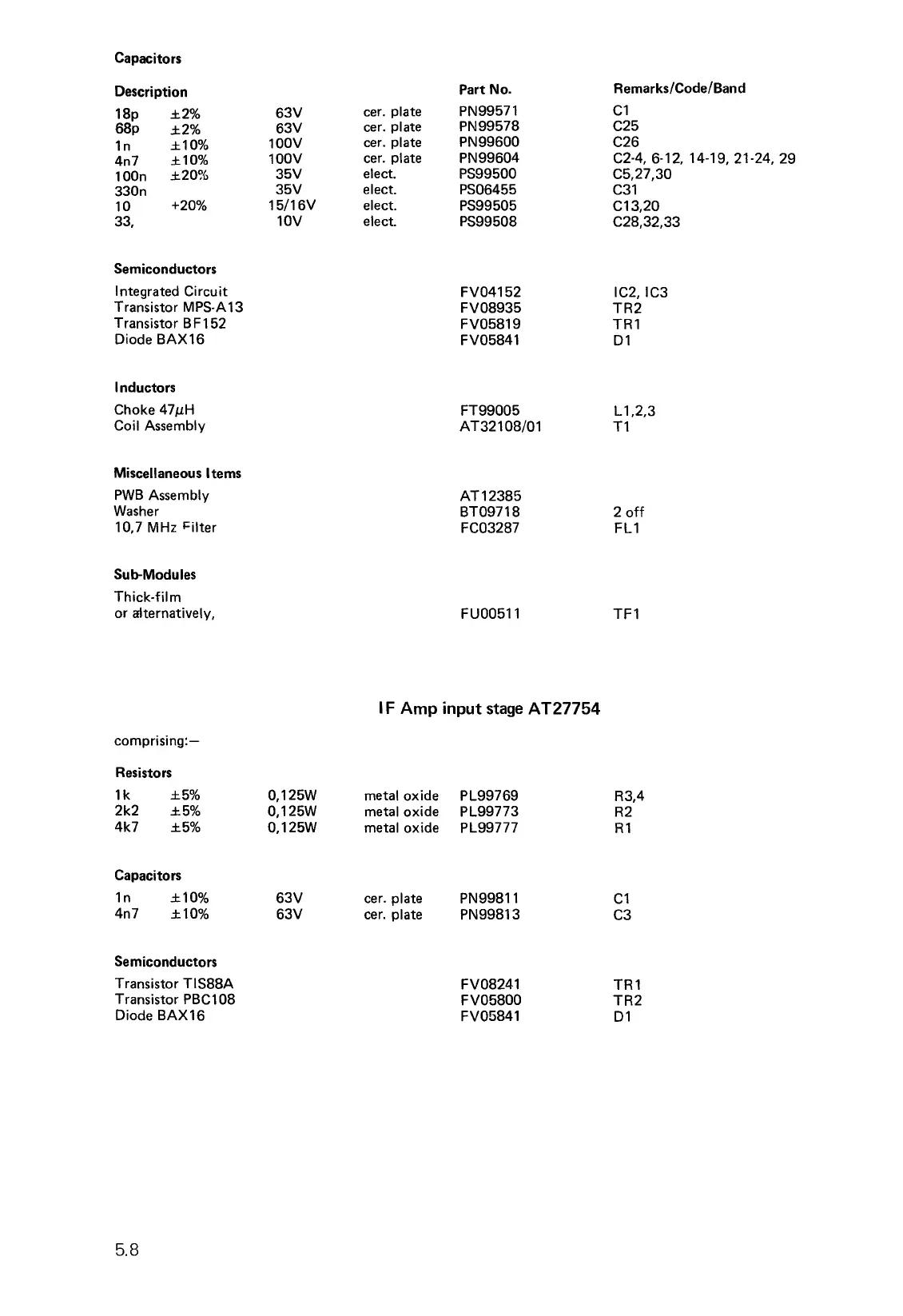

PYE OLYMPIC M201 - Page 73

Capacitors
Description 
Part No. 
Remarks/Code/Band
cer. plate

PN99571
 C1
cer. plate 
PN99578 
C25
cer. plate 
PN99600 
C26
cer. plate  PN99604  C2-4, 6-12, 14-19, 21-24, 29
elect. 
PS99500 
C5,27,30
elect. 
PS06455
 C31
elect. 
PS99505 
C13,20
elect. 
PS99508 
C28,32,33
Semiconductors
Integrated Circuit 
FV04152  IC2, IC3
Transistor MPS-A13 
FV08935

TR2
Transistor BF152

FV05819 
TR1
Diode BAX16 
FV05841 
D1
Inductors
Choke 47µH 
FT99005  L1,2,3
Coil Assembly 
AT32108/01 
T1
Miscellaneous Items
PWB Assembly 
AT12385
Washer 
BT09718

2 off
10,7 MHz P liter 
FC03287

FL1
Sub-Modules
Thick-film
or alternatively, 
FU00511

TF1
IF Amp input
stage AT27754
comprising:—
18p
±.2%
63V
68p
±2%
63V
1n
±10%
100V
4n7
±10%
100V
100n
±20%
35V
330n
35V
10
+20% 15/16V
33, 10V
Resistors
1k ±5%
0,125W
2k2 ±5%
0,125W
4k7 ±5%
0,125W
metal oxide PL99769

R3,4
metal oxide PL99773

R2
metal oxide PL99777 
R1
Capacitors
1n 
±10% 
63V  cer. plate
 PN99811

C1
4n7 
±10% 
63V  cer. plate  PN99813

C3
Semiconductors
Transistor TIS88A 
FV08241 
TR1
Transistor PBC108

FV05800

TR2
Diode BAX16
 FV05841 
D1
